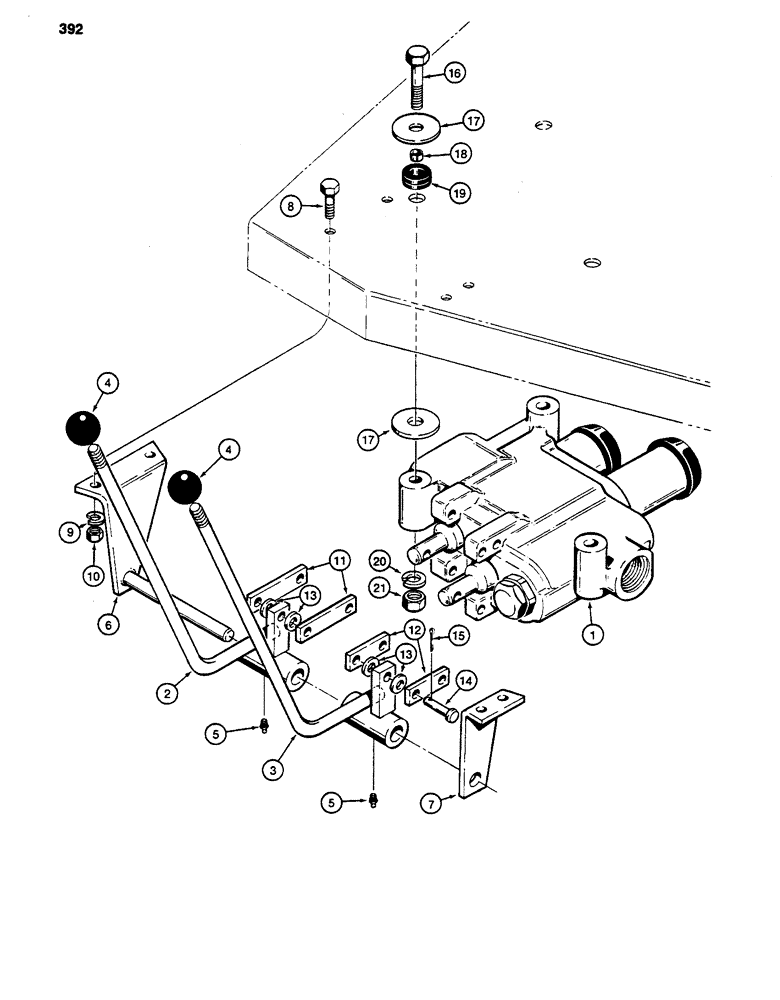

Запчасти Case 480D (392) - LOADER CONTROLS - DUAL CONTROL LEVERS, 480D MODELS ONLY (82) - FRONT LOADER & BUCKET

1

REF

INSTRUCTION

CONTROL VALVE - loader, parts list Figure 294

1шт.

2

D74835

LEVER ASSY.

LEVER - bucket control

1шт.

3

D74838

LEVER

- lift control

1шт.

4

D59912

KNOB

- lever

2шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

6

D74834

BRACKET

- with lever shaft

1шт.

7

D74833

PANEL ASSY.

BRACKET - end

1шт.

8

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

11

D74829

LINK

- bucket lever to control valve, long

2шт.

12

D56173

DRAG LINK

LINK - lift lever to control valve, short

2шт.

13

195-18

WASHER,1/4"

- flat, 1/4"

4шт.

14

D50559

CLEVIS,9.53mm OD x 28.32mm L

PIN - links

4шт.

15

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

4шт.

16

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

3шт.

17

95-6

WASHER,3/8"

- flat, 3/8"

6шт.

18

D123465

SPACER

- split

3шт.

19

D64797

GROMMET

- control valve mounting

3шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.
