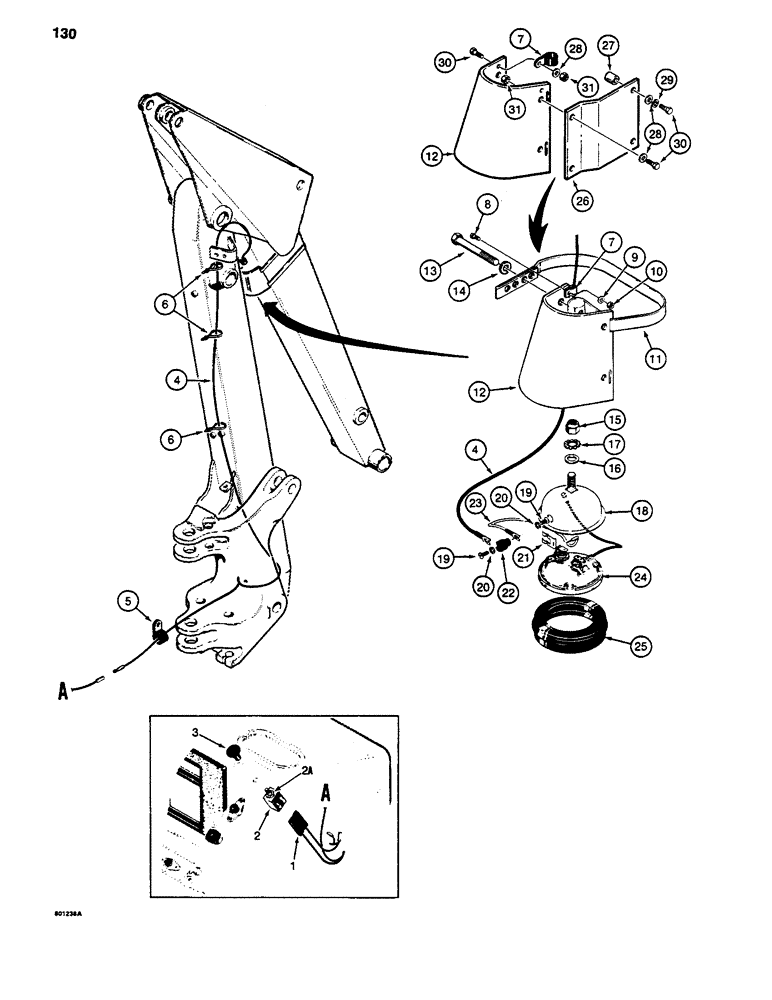

Запчасти Case 480D (130) - DIPPER LAMP, USED WITH NON-EXTENDABLE DIPPER, 480D MODELS ONLY (55) - ELECTRICAL SYSTEMS

1

D75761

HARNESS

WIRE ASSEMBLY - to dipper lamp switch

1шт.

2

D74330

SWITCH

- dipper lamp, Includes: Ref. 2A

1шт.

2a

N7557

NUT

- special, 3/4" - 24 NF

1шт.

3

D95783

KNOB

- dipper lamp switch

1шт.

4

D50717

HARNESS

WIRE ASSEMBLY - dipper lamp

1шт.

5

49853

TOOL

- wire

3шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

6шт.

7

80049853

YOKE

- wire

1шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

9

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

10

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

11

D41171

BAND

- lamp mounting, if used

2шт.

12

D41427

SHIELD

- lamp

1шт.

13

113-443

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

If used Hex, 1/2"-13 x 6 1/2", G5

2шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , If used 1/2"

2шт.

15

131-1116

LOCK NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

1шт.

16

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

1шт.

17

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1шт.

D37811

LAMP

ASSEMBLY - dipper arm, Includes: Ref. 18 - 25

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

19

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

MACHINE SCREW - pan head slotted, No. 8 - 32 NC x 1/4"

2шт.

20

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, Int Tooth, #8

2шт.

21

10927

SPRING

- lamp

1шт.

22

B50293

TERMINAL CONNECTOR

- lamp

1шт.

23

A25262

ELECTRICAL WIRE

WIRE - lamp

1шт.

24

A42294

SEALED BEAM UNIT

BULB - sealed beam, No. 4406

1шт.

25

D31441

RETAINER

- lamp

1шт.

26

D56849

BRACKET

- shield mounting, if used

2шт.

27

D33265

NUT

BLOCK - tapped, if used

4шт.

28

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, if used

9шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , If used 3/8"

4шт.

30

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

If used Hex, 3/8"-16 x 1", G5, Full Thd

9шт.

31

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated, if used

5шт.
