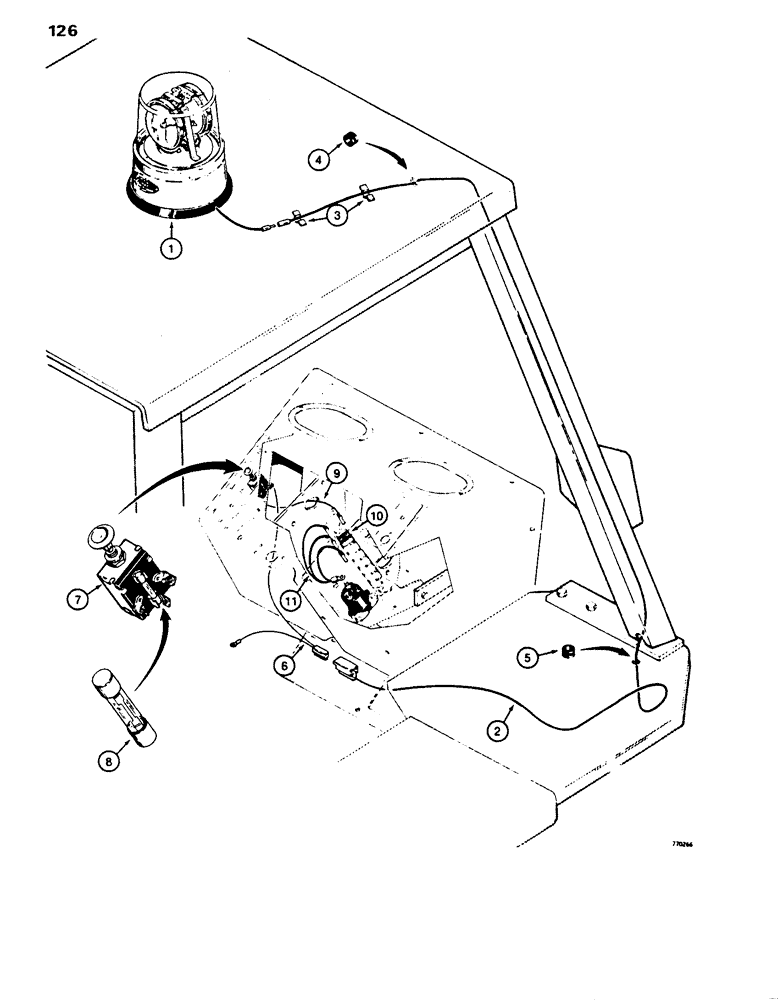

Запчасти Case 480D (126) - ROTATING BEACON AND CIRCUIT (55) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

BEACON - rotating, parts list Figure 128

1шт.

2

D72914

ELECTRICAL WIRE

WIRE - beacon, canopy only

1шт.

3

F93268

CLIP

- wire

2шт.

4

L10082

GROMMET

- rubber

1шт.

5

D37936

GROMMET

- rubber

1шт.

6

D75955

ELECTRICAL WIRE

WIRE - switch to beacon wire, canopy only

1шт.

7

L16099

SWITCH

ASSEMBLY - beacon, Includes: Ref. 8

1шт.

8

223-20

FUSE,20 Amp, Type SFE

- 20 amperes, SFE

1шт.

9

D75956

ELECTRICAL WIRE

WIRE - switch to circuit breaker

1шт.

10

D78002

CIRCUIT-BREAKER

CIRCUIT BREAKER - 15 amperes

1шт.

11

D75225

ELECTRICAL WIRE

WIRE - solenoid to circuit breaker

1шт.
