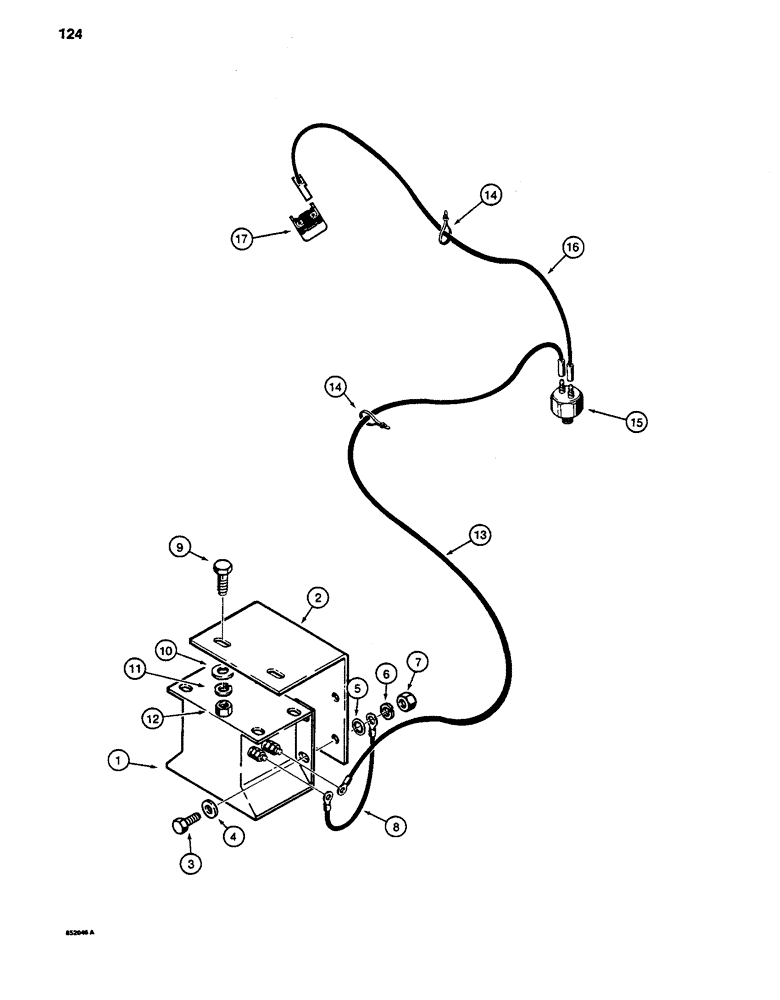

Запчасти Case 480D (124) - BACKUP ALARM, POWER SHUTTLE PRESSURE ACTUATED SWITCH (55) - ELECTRICAL SYSTEMS

1

D121972

ALARM

BACKUP ALARM - electric, rectangular type

1шт.

2

D75815

BRACKET

- backup alarm

1шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

4

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.

5

193-82

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

1шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

7

9635082

NUT,5/16" - 18, Gr 5

4шт.

8

D70125

ELECTRICAL WIRE

WIRE - alarm ground

1шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

10

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

13

D131326

ELECTRICAL WIRE

WIRE -, Serial Range: switch-alarm

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

7шт.

15

D127319

SWITCH

- pressure, mounts in power shuttle

1шт.

16

D131327

HARNESS

WIRE - pressure switch to circuit breaker

1шт.

17

D78002

CIRCUIT-BREAKER

CIRCUIT BREAKER - 15 amperes

1шт.
