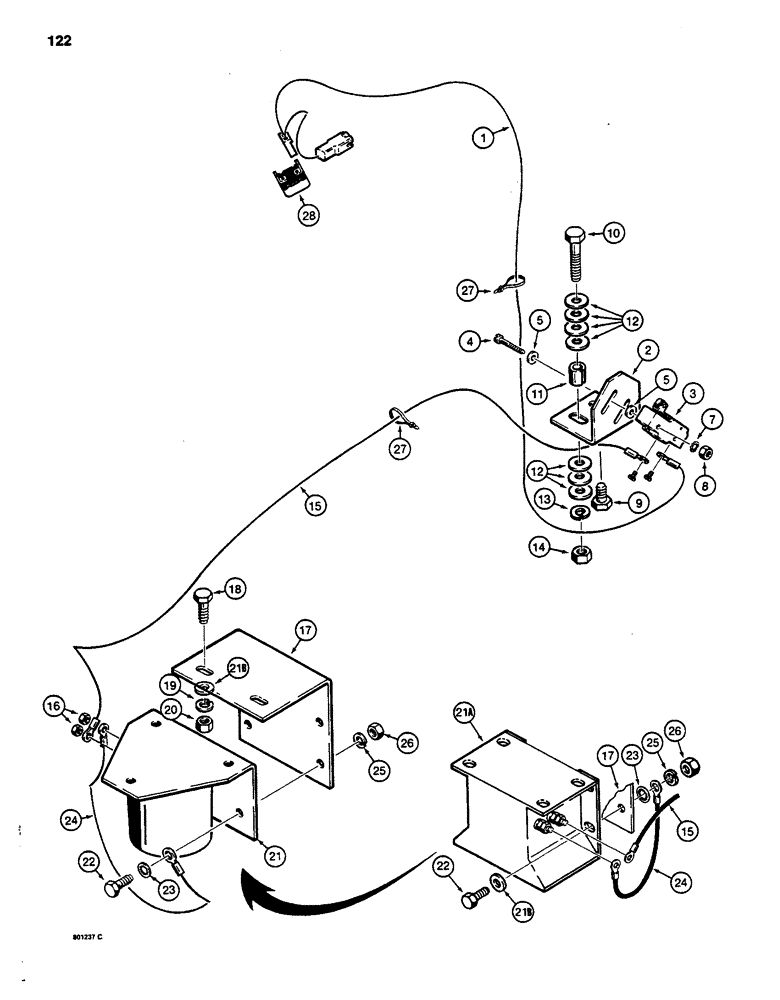

Запчасти Case 480D (122) - BACKUP ALARM, MECHANICALLY ACTUATED SWITCH (55) - ELECTRICAL SYSTEMS

1

D75957

ELECTRICAL WIRE

WIRE - circuit, Serial Range: breaker-switch

1шт.

2

D70035

BRACKET

- switch mounting

1шт.

3

D134622

SWITCH

- backup alarm

1шт.

4

169-144

SCREW,Sl Fil Hd, #6 - 32 x 1 1/4"

MACHINE SCREW - Fillister head, No. 6 - 32 NC x 1-1/4", plated

2шт.

5

195-507

WASHER,#6

- flat, No. 6, plated

4шт.

7

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

2шт.

8

129-15

NUT,#6-32

2шт.

9

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

10

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

11

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- power shuttle shift bracket

1шт.

12

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, used as a spacer

1шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

15

D70126

ELECTRICAL WIRE

WIRE -, Serial Range: switch-alarm

1шт.

16

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

AND LOCK WASHER - No. 8 - 32 NC, plated

2шт.

17

D75815

BRACKET

- backup alarm

1шт.

18

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

21

D75814

BUZZER

BACKUP ALARM - electric, round type, if used

1шт.

21a

D121972

ALARM

BACKUP ALARM - electric, rectangular type, if used

1шт.

21b

195-521

WASHER,5/16", SAE

- flat, 5/16", plated, if used

6шт.

22

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

23

193-82

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

1шт.

24

D70125

ELECTRICAL WIRE

WIRE - alarm ground

1шт.

25

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

26

9635082

NUT,5/16" - 18, Gr 5

4шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

7шт.

28

D78002

CIRCUIT-BREAKER

CIRCUIT BREAKER - 15 amperes

1шт.
