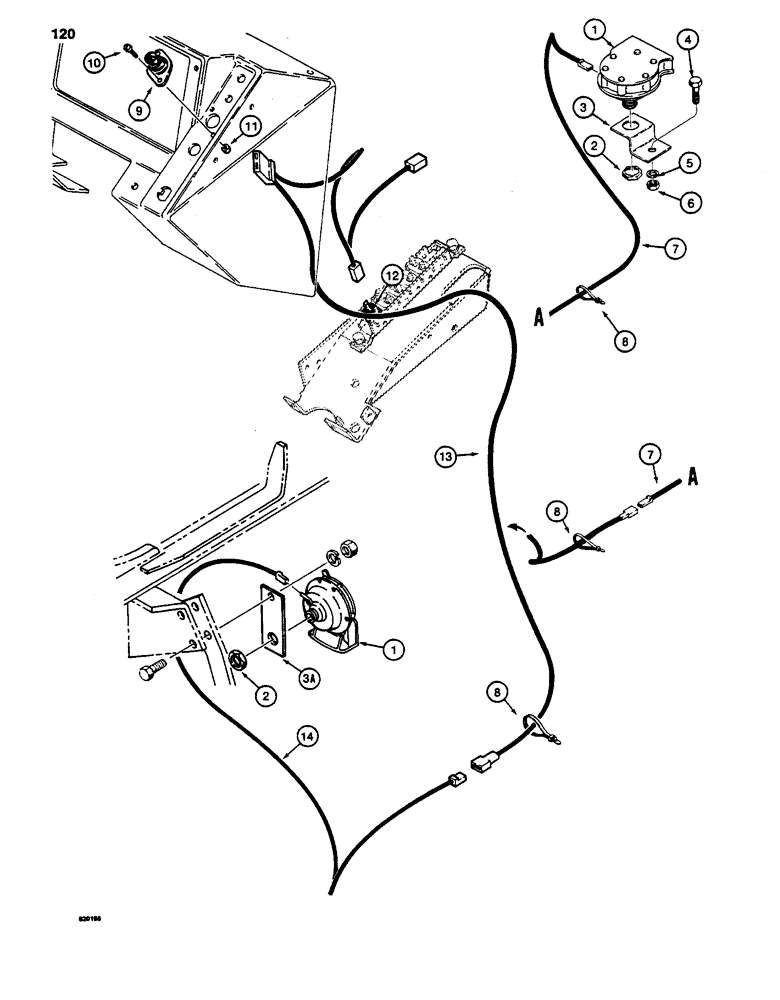

Запчасти Case 480D (120) - HORN (55) - ELECTRICAL SYSTEMS

1

D123205

HORN

- 12 volt

1шт.

2

L30866

LOCK NUT

- hex, horn mounting, 7/8" - 20 NC

1шт.

3

NSS

NOT SOLD SEPARAT

BRACKET - horn, order Ref. 3A and relocate horn to transaxle mounting strap, instruction sheet included with Ref. 3A

1шт.

3a

D122734

SUPPORT

BRACKET - horn mounting, fastens to transmission support strap, for attaching hardware see Figure 176

1шт.

4

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

7

D70199

ELECTRICAL WIRE

WIRE - horn to switch wire, used only with front mounted horn, no longer used, order D91176 wire (Ref. 14)

1шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

9

D67872

SWITCH

- horn

1шт.

10

163-15

SCREW,Hex, #10 - 24 x 5/8"

MACHINE SCREW - hex head, No. 10 - 24 NC x 5/8", plated

2шт.

11

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT AND LOCK WASHER - No. 10 - 24 NC, plated

2шт.

12

D78002

CIRCUIT-BREAKER

CIRCUIT BREAKER - 15 amperes

1шт.

13

D75818

ELECTRICAL WIRE

WIRE - circuit breaker to horn button and horn

1шт.

14

D91176

ELECTRICAL WIRE

WIRE - horn to switch wire

1шт.
