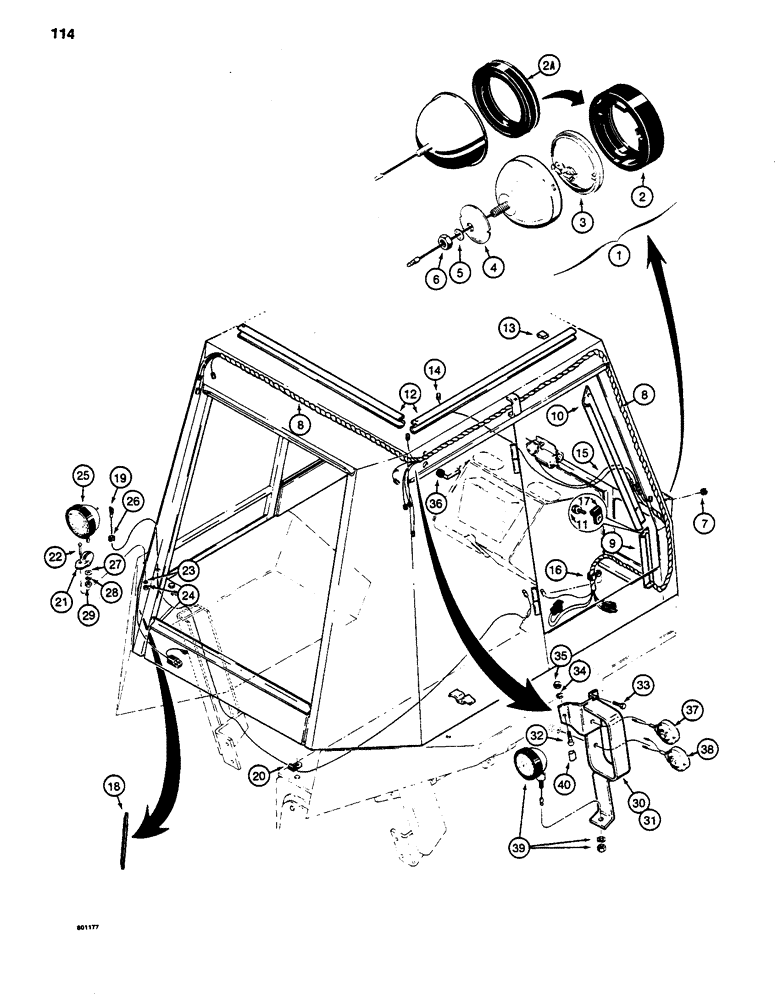

Запчасти Case 480D (114) - TRACTOR LAMP ELECTRICAL CIRCUIT, WITH CAB (55) - ELECTRICAL SYSTEMS

1

D88547

LAMP BASE

LAMP ASSEMBLY - front, interchangeable with A59701 lamp, Includes: Ref. 2 - 3

2шт.

2

A25213

RETAINER

- lamp, locks to shell with three rubber tabs, if used

1шт.

2a

N6160

LAMP

RETAINER - lamp, locks over shell flange, if used

1шт.

3

A11280

LAMP

BULB - sealed beam, No. 4411

1шт.

4

A59702

RETAINER

WASHER - retainer

2шт.

5

193-57

LOCK WASHER,Ext Tooth, 1/4"

WASHER - internal-external tooth lock, 1/2"

2шт.

6

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

7

353-700

BUSHING

GROMMET - rubber

2шт.

8

F44608

HARNESS

- cab

1шт.

9

F44338

CHANNEL

- lower front, wire

1шт.

10

F44337

CHANNEL

- upper front, wire

1шт.

11

187-1046

SELF-TAP SCREW,Hex Wash Hd, 3/8" x 5/8"

SCREW - self-tapping, 3/8" - 16 NC x 5/8", plated

4шт.

12

F44339

CHANNEL

- upper, wire

2шт.

13

F44407

CLIP

- wire

10шт.

14

R37316

ELECTRICAL WIRE

WIRE - to left-hand front lamp

1шт.

15

R37315

ELECTRICAL WIRE

WIRE - to front windshield wiper

1шт.

16

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- cab harness

1шт.

17

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- cab harness

1шт.

18

R37440

STRIP

COVER - harness wire, to rear windshield wiper

1шт.

19

D91117

ELECTRICAL WIRE

WIRE - rear fender lamp

1шт.

20

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- wire, used with fender mounted rear lamp

1шт.

21

A34046

BRACKET

- used with fender mounted rear lamp

1шт.

22

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Used with fender mounted rear lamp Hex, 3/8"-16 x 1 1/2", G5

1шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Used with fender mounted rear lamp 3/8"

1шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Used with fender mounted rear lamp 3/8"-16, G5

1шт.

25

D70115

LAMP

- rear flood and tail, parts list Figure 118, used with fender mounted rear lamp

1шт.

26

D37936

GROMMET

- wire, used with fender mounted rear lamp

1шт.

27

195-533

WASHER,1/2", SAE

- flat, 1/2", plated, used with fender mounted rear lamp

1шт.

28

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Used with fender mounted rear lamp 1/2"

1шт.

29

129-105

NUT,Hex, 1/2" - 13, Gr 5

Used with fender mounted rear lamp 1/2"-13, G5

1шт.

30

F96702

FRAME

BRACKET - rear lamp mounting, right-hand, used with upper rear lamps and flashers

1шт.

31

F96701

FRAME

BRACKET - rear lamp mounting, left-hand, used with upper rear lamps and flashers

1шт.

32

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Used with upper rear lamps and flashers Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

33

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Used with upper rear lamps and flashers Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Used with upper rear lamps and flashers 3/8"

4шт.

35

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Used with upper rear lamps and flashers 3/8"-16, G5

4шт.

36

A23870

GROMMET

- wire, used with upper rear lamps and flashers

2шт.

37

D122121

LAMP,12V

- flasher, parts list Figure 116, used with upper rear lamps and flashers

2шт.

38

D49733

LAMP

- stop and tail, parts list Figure 116, used with upper rear lamps and flashers

2шт.

39

D88684

LAMP

- rear flood, parts list Figure 118, used with upper rear lamps and flashers

2шт.

40

214-1105

CLIP

- wire, used with upper rear lamps and flashers

10шт.
