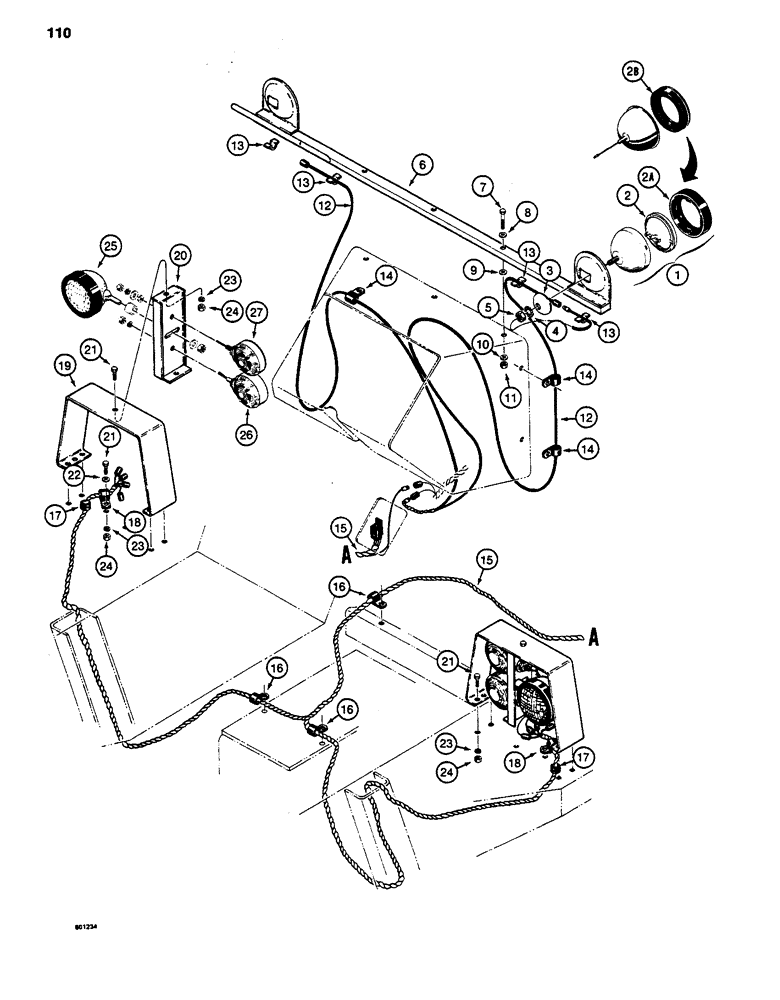

Запчасти Case 480D (110) - TRACTOR LAMP ELECTRICAL CIRCUIT, WITHOUT CANOPY OR CAB (55) - ELECTRICAL SYSTEMS

1

D88547

LAMP BASE

LAMP ASSEMBLY - front, interchangeable with A59701 lamp, Includes: Ref. 2 - 2B

2шт.

2

A11280

LAMP

BULB - sealed beam, No. 4411

1шт.

2a

A25213

RETAINER

- lamp, locks to shell with three rubber tabs, if used

1шт.

2b

N6160

LAMP

RETAINER - lamp, locks over shell flange, if used

1шт.

3

A59702

RETAINER

WASHER - retaining

2шт.

4

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

6

D77790

BAR

BRACKET - front lamps

1шт.

7

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

3шт.

8

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

3шт.

9

195-103

WASHER,5/16"

- flat, , plated, used as spacer on models with hourmeter 5/16"

2шт.

10

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

3шт.

11

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

3шт.

12

D88626

HARNESS

WIRE - front lamps

1шт.

13

F93268

CLIP

- wire, stick on type

4шт.

14

49853

TOOL

- wire

6шт.

15

D88629

HARNESS

- rear lamps

1шт.

16

49838

CLAMP

- wire

3шт.

17

D37936

GROMMET

- rubber

2шт.

18

49838

CLAMP

- wire

2шт.

19

D58721

BRACKET

- rear lamp, outer

2шт.

20

D58713

LARGE PLATE

BRACKET - rear lamp, center

2шт.

21

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

14шт.

22

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, clamp bolts only

2шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

14шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

14шт.

25

D88684

LAMP

ASSEMBLY - rear flood, part list Figure 118

2шт.

26

D49733

LAMP

ASSEMBLY - stop and tail, parts list Figure 116

2шт.

27

D122121

LAMP,12V

ASSEMBLY - signal and flasher, parts list Figure 116

2шт.
