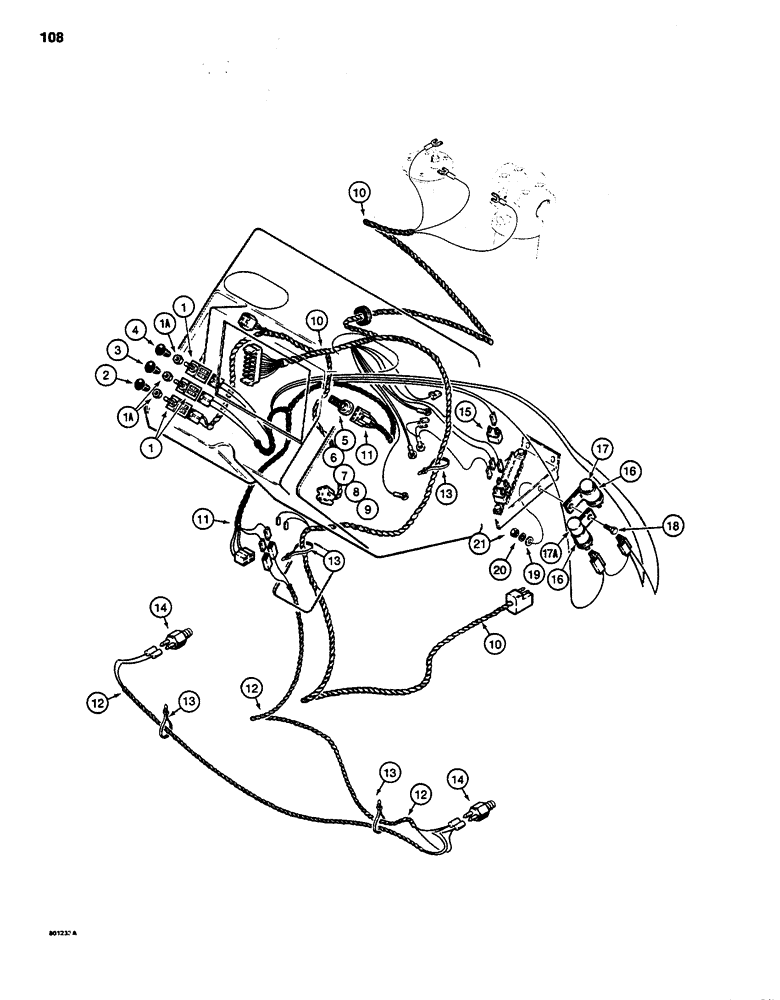

Запчасти Case 480D (108) - TRACTOR LAMP SWITCHES AND SWITCH WIRING (55) - ELECTRICAL SYSTEMS

1

D74330

SWITCH

- lamp, Includes: Ref. 1A

1-3шт.

1a

N7557

NUT

- special, 3/8" - 24 NF

1шт.

2

D95781

BUTTON

KNOB - front driving lamps

1шт.

3

D95783

KNOB

- rear flood lamps, if used

1шт.

4

D95782

KNOB

- flasher lamps, if used

1шт.

5

D52008

SWITCH

- turn signal, if used

1шт.

6

193-35

LOCK WASHER,Int Tooth, 3/4"

WASHER, LOCK, , If used Int Tooth, 3/4"

1шт.

7

A20467

NUT

- special, 11/16" - 28 NF, switch mounting

1шт.

8

A20465

KNOB

- turn signal switch

1шт.

9

A20468

SCREW,Spcl, #8 - 32 x 5/16"

- knob retaining

1шт.

10

REF

INSTRUCTION

HARNESS - main, see Figure 96 for correct harness and connecting parts

1шт.

11

D99212

HARNESS

- switches

1шт.

12

D99211

HARNESS

- stop lamp switches

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

14

D99796

SWITCH

- stop lamp, for brake lines see Figures 218 and 222

2шт.

15

D78002

CIRCUIT-BREAKER

CIRCUIT BREAKER - 15 amperes, lamps

1шт.

16

A34868

CLAMP

BRACKET - flasher mounting

2шт.

17

A65550

FLASHER UNIT

FLASHER - 12 volt, turn

1шт.

17a

D133000

LIGHT, WARNING

FLASHER - 12 volt, hazard

1шт.

18

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

19

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

1шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

21

9635082

NUT,5/16" - 18, Gr 5

1шт.
