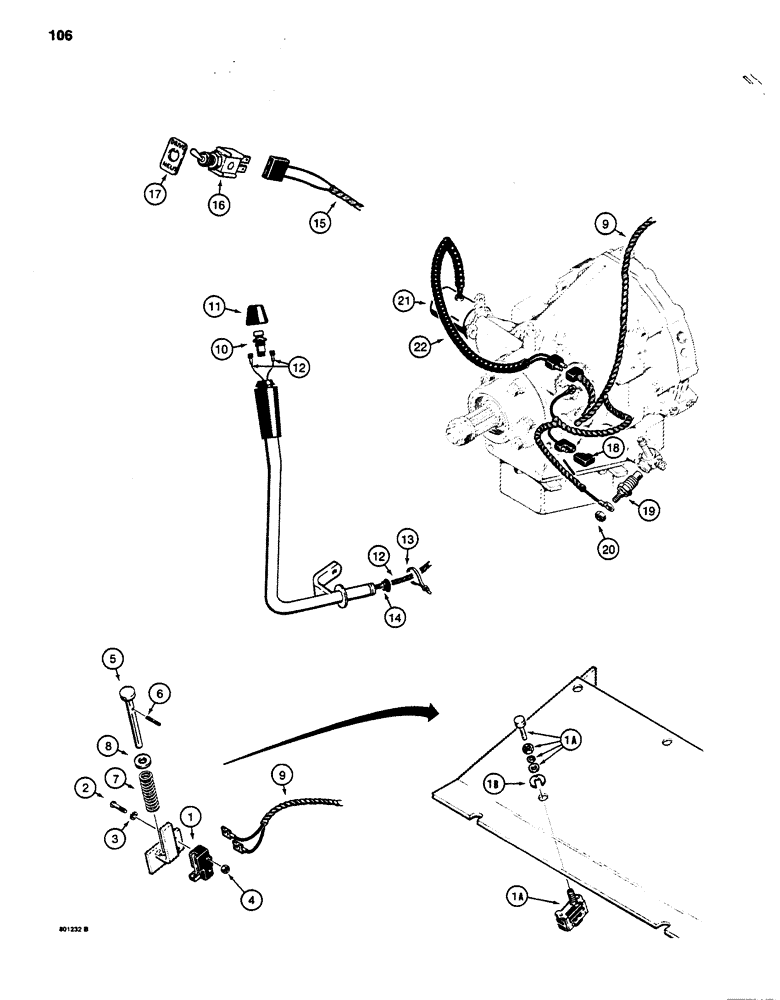

Запчасти Case 480D (106) - POWER SHUTTLE ELECTRICAL CIRCUIT (55) - ELECTRICAL SYSTEMS

1

D134622

SWITCH

- clutch cutout, floor, used with D84332 floor plate with switch mounting bracket, if used, see Figures 484 and 488 for floor plates

1шт.

1a

D124618

SWITCH

- clutch cutout, floor, used with D127013 floor plate without switch mounting bracket, if used, see Figures 484 and 488 for floor plates

1шт.

1b

D126116

BRACKET

WASHER - special, used with D124618 clutch cutout switch only

1шт.

2

169-165

MACHINE SCREW - Fillister head, No. 6 - 32 NC x 1-1/8", plated, if used

2шт.

3

195-507

WASHER,#6

- flat, No. 6, plated, if used

2шт.

4

193-1003

NUT,Keps, w/LW,#6-32

AND LOCK WASHER - No. 6 - 32 NC, plated, if used

2шт.

5

D84327

ROD

- switch actuating, if used

1шт.

6

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, , If used 1/8" x 1", Slotted

1шт.

7

T34088

SPRING

- rod return, if used

1шт.

8

195-525

WASHER,3/8", SAE

- flat, 7/8", plated, if used

1шт.

9

D99204

HARNESS

- clutch cutout, lower

1шт.

10

D91440

SWITCH

- clutch cutout, control lever, if used

1шт.

11

D125880

BOOT

- switch cover, if used

1шт.

12

D99751

HARNESS

- control lever switch, if used

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

14

D83832

GROMMET

- wire, if used

1шт.

15

D99203

HARNESS

- clutch cutout, upper, if used

1шт.

16

D67251

SWITCH

- clutch cutout, instrument panel, includes hardware, if used

1шт.

17

D73929

PLATE

- instrument panel switch, if used

1шт.

18

L71879

DIODE ELEMENT,400V, 3A

DIODE - switch protecting

1шт.

19

D65446

SENDER UNIT

SENDER - shuttle oil temperature

1шт.

20

193-1000

NUT,Keps, w/LW,#10-32

AND LOCK WASHER - No. 10 - 32 NF, plated

1шт.

21

D134742

SOLENOID

- clutch cutout, at power shuttle

1шт.

22

D88053

SLEEVE

- solenoid wires

1шт.
