Запчасти Case 480D (104) - HOURMETER ELECTRICAL CIRCUIT (55) - ELECTRICAL SYSTEMS

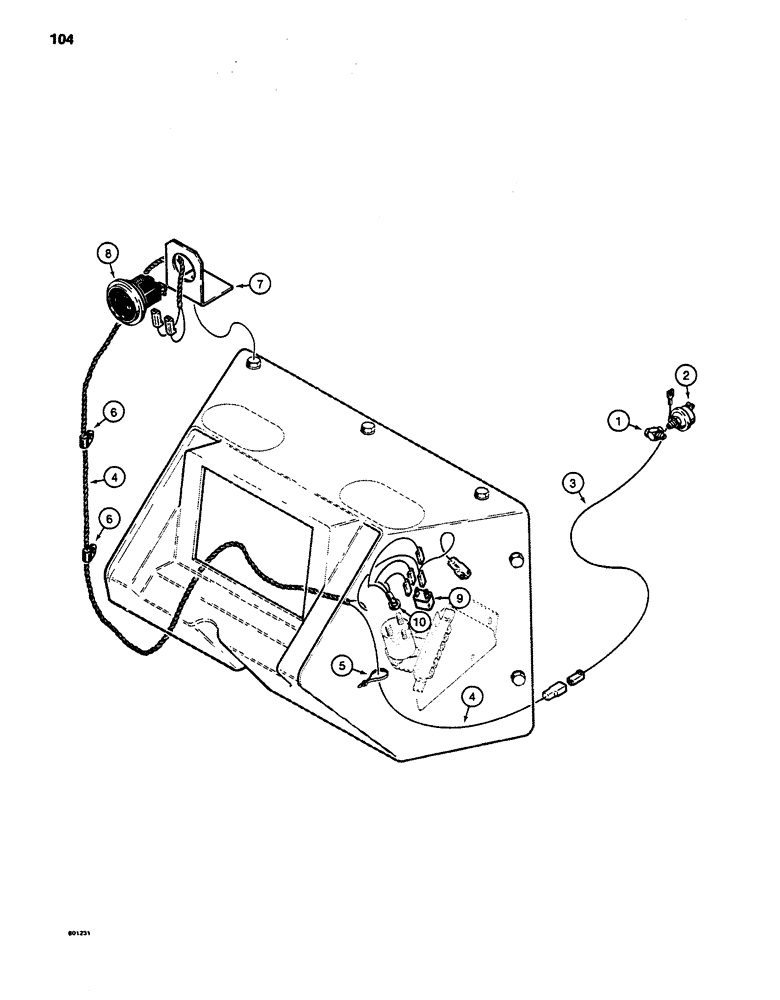

Схема запчастей Case 480D - (104) - HOURMETER ELECTRICAL CIRCUIT (55) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

- 1/8" NPT, at engine oil press port

1шт.

2

D65458

SWITCH

SENDER - hourmeter, at engine

1шт.

3

D92170

CABLE

WIRE - from sender

1шт.

4

D76118

HARNESS

- hourmeter

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

6

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- wire retaining

2шт.

7

D75592

BRACKET

- hourmeter

1шт.

8

D53047

GAUGE

HOURMETER ASSEMBLY - complete

1шт.

9

D78002

CIRCUIT-BREAKER

CIRCUIT BREAKER - 15 amperes

1шт.

10

D75225

ELECTRICAL WIRE

WIRE - circuit, Serial Range: breaker-solenoid

1шт.

Выбрано товаров: 10
