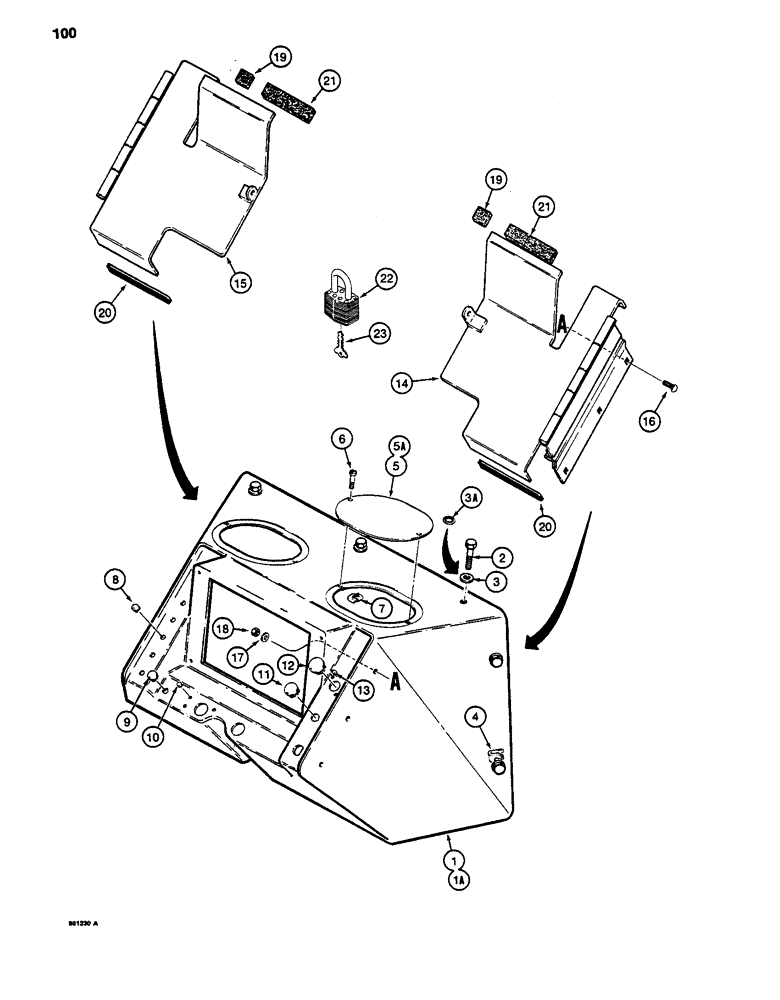

Запчасти Case 480D (100) - INSTRUMENT PANEL AND COVERS (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
D99756
PANEL
INSTRUMENT PANEL - tractor, black, if used
1шт.
1a
D124796
KIT
INSTRUMENT PANEL - tractor, brown, if used
1шт.
2
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd
7шт.
3
195-521
WASHER,5/16", SAE
- flat, 5/16", plated
6-7шт.
3a
193-82
LOCK WASHER,Int Tooth, 5/16"
WASHER, LOCK, , Used with defroster fan mounting bracket, see Figure 524 Ref. 24 Int Tooth, 5/16"
1шт.
4
131-637
SPRING NUT,Ret, J, 5/16"-18
- J-type, 5/16" - 18 NC
4шт.
5
D78247
COVER
- access hole, black, if used
2шт.
5a
D124884
COVER
- access hole, brown, if used
2шт.
6
182-516
SCREW,Sl Pan Hd, #10 - 24 x 1/2"
MACHINE SCREW - pan head slotted, No. 10 - 24 NC x 1/2", plated
4шт.
7
131-619
SPRING NUT,J, #10 - 24, 0.031" Thk
- J-type, No. 10 - 24 NC
4шт.
8
353-402
PLUG,Dome, .375" hole, Nylon
If used Dome, .375" hole, Nylon
6шт.
9
353-404
PLUG,Dome, .500" hole, Nylon
If used Dome, .500" hole, Nylon
1-2шт.
10
353-401
PLUG,Dome, .312" hole, Nylon
- button, nylon, 5/16", if used
9шт.
11
353-407
PLUG,Dome, .687" hole, Nylon
- button, nylon, 11/16", if used
1шт.
12
353-411
PLUG,Dome, 1.000" hole, Nylon
If used Dome, 1.000" hole, Nylon
1шт.
13
353-421
PLUG,Dome, .187" hole, Nylon
If used Dome, .187" hole, Nylon
2шт.
14
D80782
COVER
- anti-vandalism, right-hand, if used
1шт.
15
D80781
COVER
- anti-vandalism, left-hand, if used
1шт.
16
111-135
CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2
- 1/4" - 20 NC x 3/4", plated
6шт.
17
195-102
WASHER,1/4"
- flat, , plated 1/4"
6шт.
18
7770
NUT,Hex, 1/4 - 20, Cl 5
1/4"-20, G5
6шт.
19
D83236
PAD
- cushion
2шт.
20
D95462
MOLDING
TRIM - edge, 9" (229 mm) cut to fit two places
1шт.
21
D66072
SEALING STRIP
- cushion
2шт.
22
D93753
PADLOCK
- includes keys, Includes: Ref. 23
1шт.
23
R29555
KEY
- for Master padlock only
2шт.
23
D93751
SET OF 2 KEYS
KEY - for Yale padlock only
2шт.
