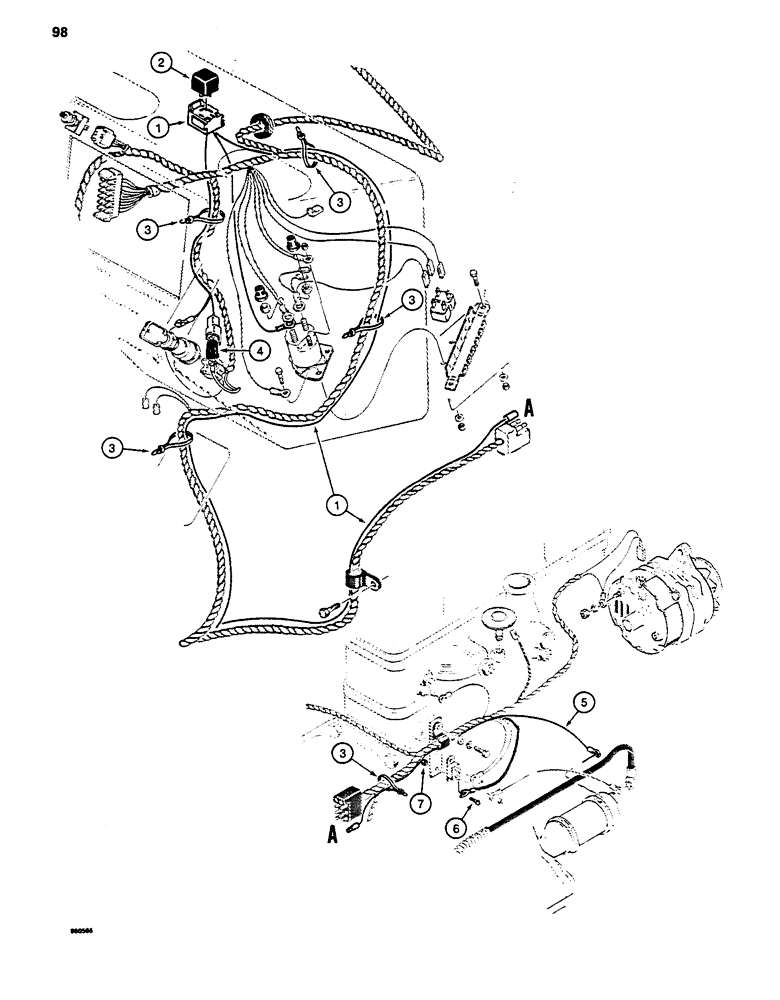

Запчасти Case 480D (098) - NEUTRAL START CONVERSION KIT (55) - ELECTRICAL SYSTEMS

D101559

ASSEMBLY

KIT - neutral start conversion, includes instruction sheet, Includes: Ref. 1 - 7

1шт.

1

D127340

ELECTRICAL WIRE

HARNESS - relay, attaches to D127339 wire

1шт.

2

D128310

RELAY

- neutral start

1шт.

Ref. 2 relay is marked 40 amperes on the relay - this is the resistance rating. The inductive rating is 30 amps. We use this inductive rating in our literature.

1шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

6шт.

4

223-155

ELEC CONNECTOR,Female, 1 Pin

CONNECTOR - male

1шт.

5

D127339

ELECTRICAL WIRE

WIRE - starter to relay harness

1шт.

6

182-86

SCREW,Slotted Pan Hd, #8-32 x 1/2"

MACHINE SCREW - pan head slotted, No. 8 - 32 NC x 1/2", replaces existing lower circuit breaker mounting hardware

1шт.

7

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

AND LOCK WASHER - No. 8 - 32 NC, plated, replaces existing lower circuit breaker mounting hardware

1шт.
