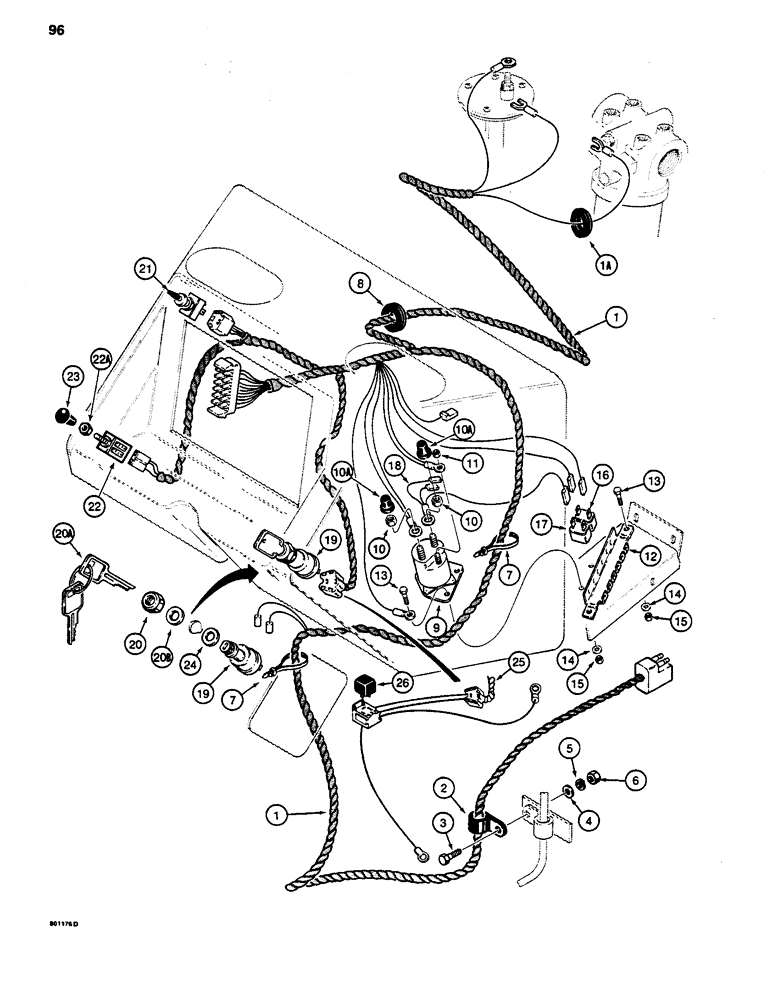

Запчасти Case 480D (096) - MAIN WIRING HARNESS AND CONNECTIONS (55) - ELECTRICAL SYSTEMS

1

D99754

WIRE HARNESS

HARNESS - main, without a connector for the neutral start switch relay, no longer available, for service order D102068 kit, see Ref. 25 - 28 below

1шт.

For models prior to tractor PIN 17000766, using D99754 main harness without a connector for a neutral start switch relay, see Figure 98 for the conversion kit for the redesigned neutral start switch circuit. The relay has been added for longer service life of the neutral start switch.

1шт.

1a

F5450

GROMMET

- rubber

1шт.

2

49838

CLAMP

- harness

1шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

For brake line clamp see Figure 218 Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

4

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

8

A145925

GROMMET

- rubber

1шт.

9

A77311

SWITCH

SOLENOID - electrical

1шт.

10

193-1009

NUT,Keps, w/LW, 5/16"-18

AND LOCK WASHER - 5/16" - 18 NC, plated

2шт.

10a

353-11

PLUG,Cap, .610" OD

CAP - insulator, solenoid terminal ends, if used

2шт.

11

193-1000

NUT,Keps, w/LW,#10-32

AND LOCK WASHER - No. 10 - 32 NF, plated

1шт.

12

D75355

BRACKET

- circuit breaker

1шт.

13

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

14

195-102

WASHER,1/4"

- flat, , plated 1/4"

4шт.

15

193-1006

NUT,Keps, w/LW, 1/4"-20

AND LOCK WASHER - 1/4" - 20 NC, plated

4шт.

16

D78001

CIRCUIT-BREAKER

CIRCUIT BREAKER - 10 amperes

1шт.

17

D78002

CIRCUIT-BREAKER

CIRCUIT BREAKER - 15 amperes

1шт.

18

D75225

ELECTRICAL WIRE

WIRE ASSEMBLY - solenoid to circuit breakers

1шт.

D134737

IGNITION SWITCH

KEY SWITCH ASSEMBLY - includes keys, Includes: Ref. 19 - 20A

1шт.

19

NSS

NOT SOLD SEPARAT

KEY SWITCH - without keys

1шт.

20

A77314

NUT

- key switch mounting

1шт.

20a

A77313

SET OF 2 KEYS

Metal Without Padding

1шт.

20b

193-108

LOCK WASHER,Int Tooth, 1"

WASHER - internal tooth lock, 1"

1шт.

21

D75360

SWITCH

- warning lamp

1шт.

22

D74330

SWITCH

- lamp, see Figure 108 for additional switches and switch wiring, Includes: Ref. 22A

1шт.

22a

N7557

NUT

- special, 3/8" - 24 NF

1шт.

23

D95781

BUTTON

KNOB - lamp switch

1шт.

24

195-2105

WASHER,1 1/16" x 1 3/4" x .065"

- flat, 1", special

1шт.

D102068

HARNESS

KIT - service, harness, includes instruction sheet, Includes: Ref. 25 - 28

1шт.

25

D133799

HARNESS

- main, with connector for neutral start switch relay

1шт.

26

D128310

RELAY

- 30 amperes, to protect neutral start switch

1шт.

Ref. 26 relay is marked 40 amperes on the relay - this is the resistance rating. The inductive rating is 30 amps. We use this inductive rating in our literature.

1шт.

27

182-86

SCREW,Slotted Pan Hd, #8-32 x 1/2"

MACHINE SCREW - pan head slotted, No. 8 - 32 NC x 1/2", not shown, replaces existing circuit breaker lower mounting hardware

1шт.

28

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

AND LOCK WASHER - No. 8 - 32 NC, plated, not shown, replaces existing circuit breaker lower mounting hardware

1шт.
