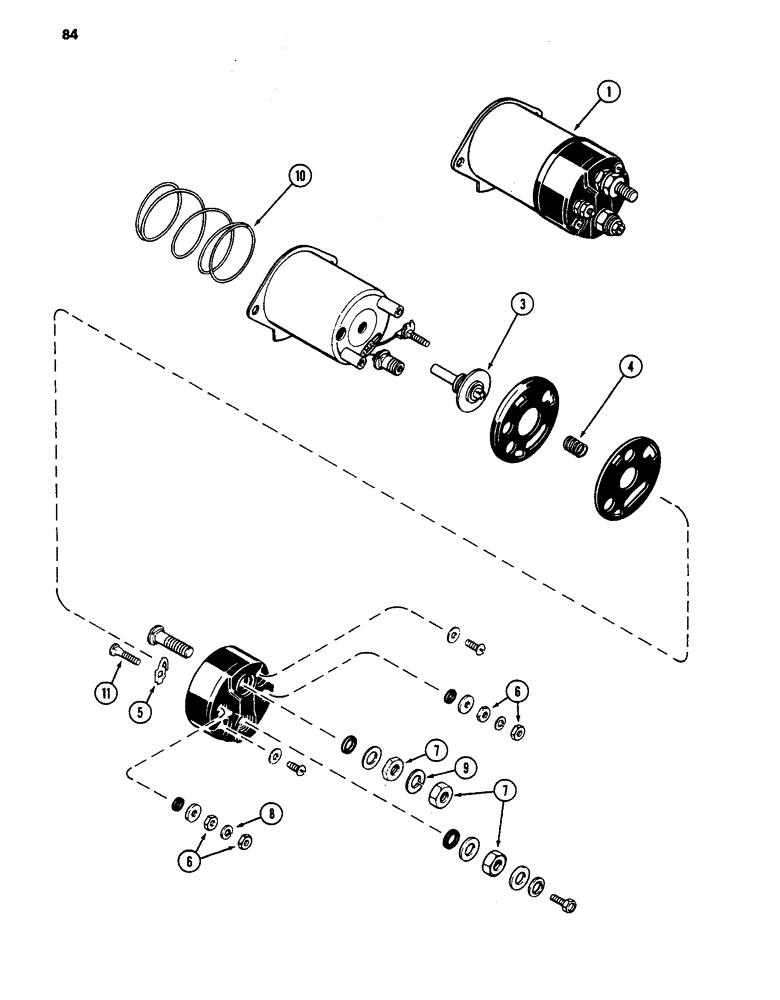

Запчасти Case 480D (084) - SOLENOID, 188 DIESEL ENGINE (55) - ELECTRICAL SYSTEMS

1

A47539

SOLENOID SWITCH

SOLENOID ASSEMBLY - starter, stamped 1114458 or G44891 (Serviced as complete assembly only)

1шт.

G44891

SOLENOID

ASSEMBLY - starter (Delco-Remy 1114356) Includes: Ref. 3 - 11

1шт.

See local Delco-Remy dealer for parts illustrated but not listed. For repairs, order A47539.

1шт.

3

A42061

SWITCH

CONTACT ASSEMBLY - solenoid

1шт.

4

A43171

LINING

SPRING - return

1шт.

5

A42060

HALF BLADE

BLADE - contact

1шт.

6

129-16

NUT,#8-32

4шт.

7

87016560

JAM NUT,Jam, 3/8"-16, G5

3шт.

8

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

10

A40221

SPRING

- plunger return

1шт.

11

A43876

STUD

SCREW - terminal

1шт.
