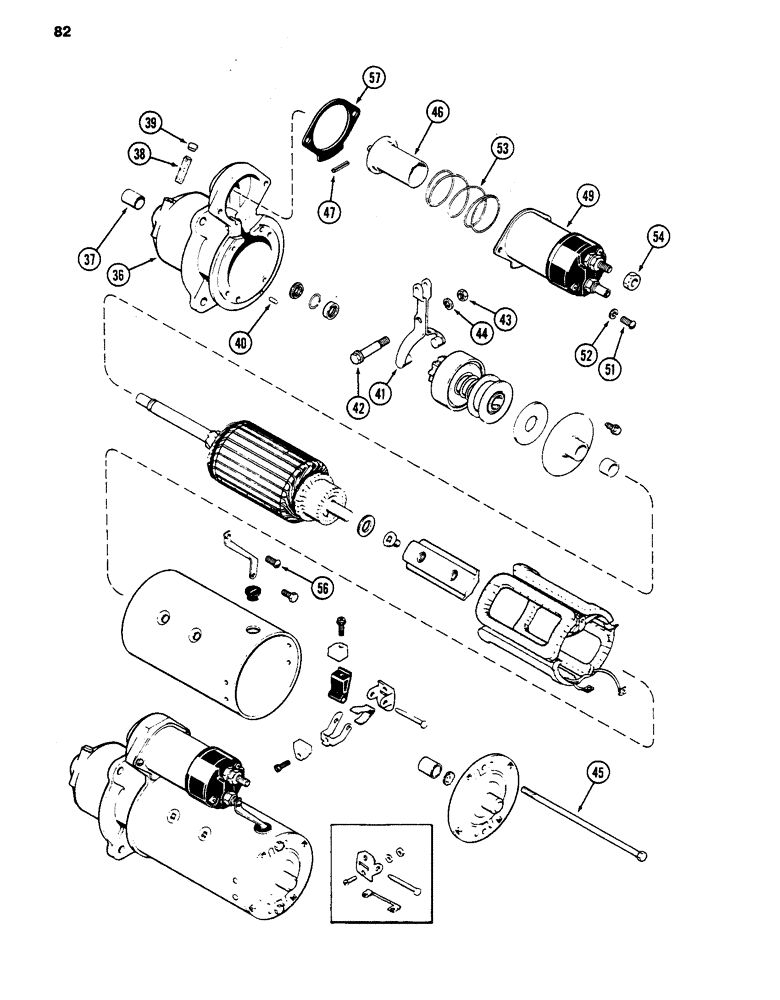

Запчасти Case 480D (082) - A169502 STARTER (CONTD) (55) - ELECTRICAL SYSTEMS

A169502

STARTER MOTOR

STARTER ASSEMBLY - Includes: Ref. 2 - 34 on Figure 80 and Ref. 36 - 57 on this figure

1шт.

36

A49471

HOUSING

ASSEMBLY - drive end, Includes: Ref. 37 - 39

1шт.

37

A25387

BEARING

BUSHING - drive housing

1шт.

38

A48716

WICK

- oiler

1шт.

39

A48712

PLUG

- oil wick hole

1шт.

40

A49452

DOWEL

PIN - locating, drive housing

1шт.

41

A40220

LEVER

- drive shift

1шт.

42

A40520

BOLT

PIVOT - shift lever

1шт.

43

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

44

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

45

A49474

BOLT

- through

2шт.

46

A49475

PLUNGER

- solenoid

1шт.

47

A49453

PIN

-, Serial Range: plunger-solenoid

1шт.

49

A49480

SWITCH

SOLENOID ASSEMBLY - starter, Includes: Ref. 51 - 53

1шт.

51

182-202

SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"

- round head slotted, 1/4-20 x 1/2 inch

2шт.

52

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

53

A48717

SPRING

- plunger return

1шт.

54

A49478

NUT

- battery cable to solenoid (Replaces A49473)

1шт.

56

182-202

SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"

- round head, 1/4-20 x 1/2 inch

1шт.

57

A42126

GASKET

- solenoid to drive housing

1шт.
