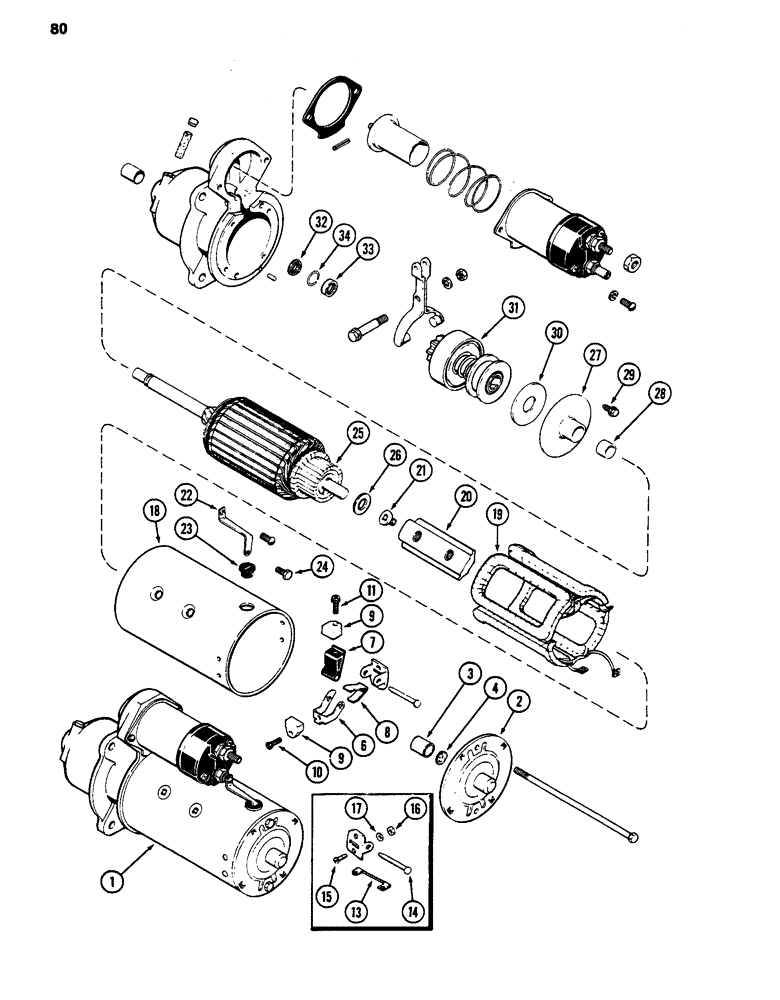

Запчасти Case 480D (080) - A169502 STARTER (55) - ELECTRICAL SYSTEMS

1

A169502

STARTER MOTOR

STARTER ASSEMBLY - new (Delco-Remy No. 1998353) Includes: Ref. 2 - 34 on this figure and Ref. 36 - 57 on Figure 82

1шт.

1

87297364

REMAN-STARTER

Starter; For N.A. only

1шт.

1

87297365

CORE-STARTER

Return number - For N.A. only

1шт.

2

A49447

FUNNEL

FRAME FRAME ASSEMBLY - commutator end, Includes: Ref. 3 and 4

1шт.

3

A45152

BUSHING

BUSHING - frame

1шт.

4

A47133

WICK

WICK - oiler

1шт.

6

A48714

HOLDER

HOLDER - brush (grounded)

2шт.

7

A49448

HOLDER

HOLDER - brush (insulated)

2шт.

8

A47813

WASHER

SPRING - brush pressure

2шт.

9

A49479

BRUSH

BRUSH - armature

4шт.

10

A42124

SCREW,#8 - 32 x 5/8"

SCREW - brush (grounded)

2шт.

11

A48710

SCREW,3/4"

SCREW AND LOCK WASHER - brush (insulated)

2шт.

A46860

SUPPORT

SUPPORT KIT - brush holder, Includes: Ref. 13 - 17

2шт.

13

NLS

NO LONGER SERVICED

WIRE LEAD - brush ground

2шт.

14

A41983

PIN

PIN - brush holder

2шт.

15

175-97

SCREW,Sl Truss Hd, #10 - 24 x 1/2"

SCREW - truss head slotted, No. 10-24 x 1/2 inch

4шт.

16

129-17

NUT,Hex, #10 - 24

NUT - hex, 3/8 inch NC

4шт.

17

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

18

NSS

NOT SOLD SEPARAT

FRAME - starter body

1шт.

19

A49481

COIL

COIL ASSEMBLY - starter field

1шт.

20

A25391

SHOE

SHOE - pole

4шт.

21

A42127

SCREW,3/8" - 24 x 0.20"

SCREW - pole shoe

8шт.

22

A48718

ROD, CONNECTING

CONNECTOR - field

1шт.

23

A41980

GROMMET

GROMMET - connector insulating

1шт.

24

A42023

SCREW,#10 - 32 x 1/2"

BOLT -, Serial Range: connector-coil

1шт.

25

A25547

ARMATURE

ARMATURE - starter

1шт.

26

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - commutator brake

1шт.

27

A49446

BEARING ASSY

PLATE ASSEMBLY - center bearing, Includes: Ref. 28

1шт.

28

A47544

BUSHING

BUSHING, Center bearing

1шт.

29

A49476

CAPTIVE WASHER SCREW,Spcl, Hex, #10 - 32 x 0.56"

SCREW AND LOCKWASHER ASSEMBLY - center bearing to drive housing

4шт.

30

A49451

WASHER

WASHER - thrust, center bearing

1шт.

31

A47178

DRIVE

DRIVE ASSEMBLY - starter

1шт.

32

A48709

WASHER

WASHER - thrust, drive end

1шт.

33

R15049

COLLAR

COLLAR - drive stop

1шт.

34

R15048

RING

RING - snap, stop collar retaining

1шт.
