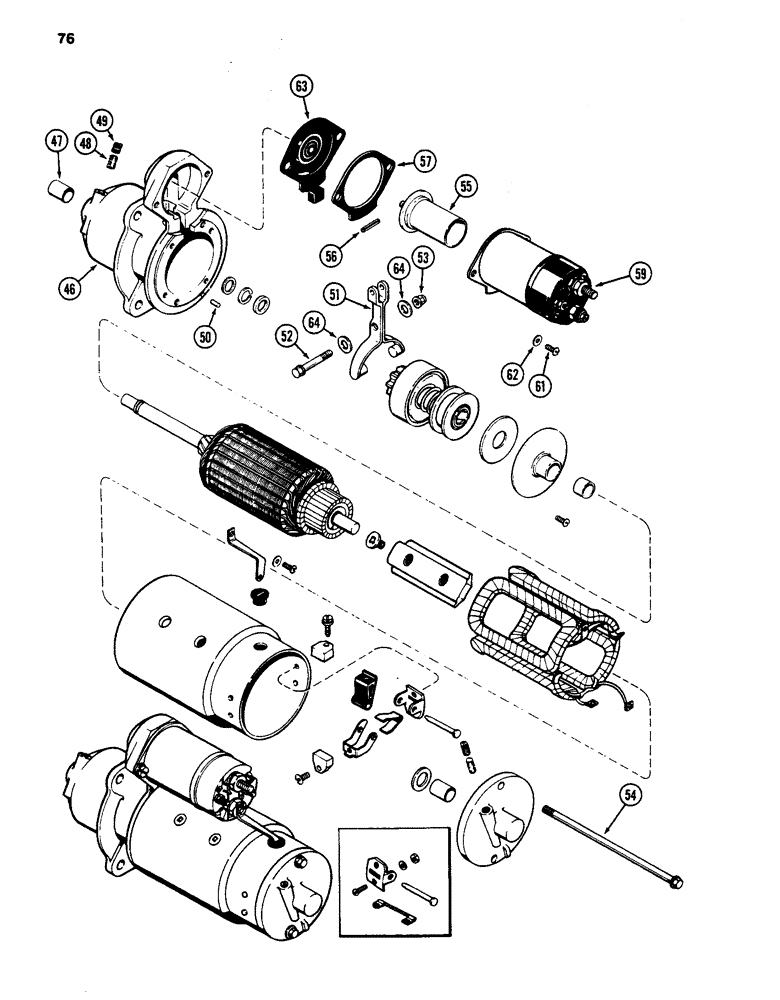

Запчасти Case 480D (076) - R29870 STARTER, 188 DIESEL ENGINE (CONTD) (55) - ELECTRICAL SYSTEMS

104202A2R

REMAN-STARTER

STARTER ASSEMBLY - Replaces R29870, Includes: Ref. 2 - 36 on Figure 74 and Ref. 46 - 64 on this figure

1шт.

104202A1C

CORE-STARTER

Return Part Number

1шт.

The R29870 subs to 104202A2R. This starter changed from a 10-tooth gear to a 9-tooth gear for faster cranking speed. This changed the nose piece in the area of the offset. Megavolt gets more cores in on the 10-tooth gear and the offset is only .050 diff. between the two gears. At times the nose pieces get mixed up and the result is the starter gear won't mesh with the ring gear unless the starter mounting bolts are loose. On 2/26/96 (MEGA-VOLT) is in process of designing a fixture to readily identify t

1шт.

46

A44495

LUG

HOUSING ASSEMBLY - drive end, Includes: Ref. 47 - 49

1шт.

47

A25387

BEARING

BUSHING - drive housing

1шт.

48

R15023

WICK

WICK - oiler

1шт.

49

221-1041

PLUG

PLUG - slotted head, 1/8 inch PT

1шт.

50

R15041

SPARE PART PIN - locating, drive housing

1шт.

51

A40220

LEVER

LEVER - drive shift

1шт.

52

A40520

BOLT

PIVOT - shift lever

1шт.

53

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, 5/16 inch NC

1шт.

54

A25552

BOLT

BOLT - through

2шт.

55

A40218

PLUNGER

PLUNGER - solenoid

1шт.

56

138-93

LOCK PIN,3/16" x 13/16", Slotted

Pin, 3/16" x 13/16", Slotted

1шт.

57

A40222

BOOT

BOOT - plunger protection

1шт.

59

REF

INSTRUCTION

SOLENOID ASSEMBLY - starter (See Figure 84)

1шт.

61

A42023

SCREW,#10 - 32 x 1/2"

SCREW - solenoid and connector

3шт.

62

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

63

A42126

GASKET

GASKET - solenoid

1шт.

64

A41984

WASHER

SEAL - pivot

2шт.
