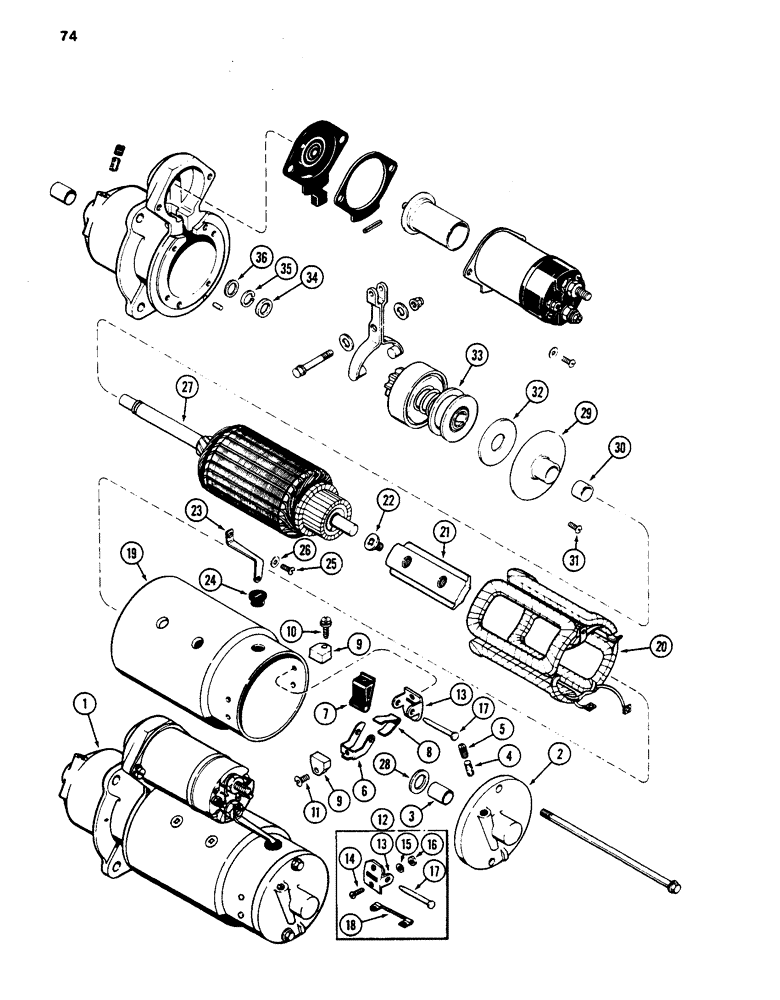

Запчасти Case 480D (074) - R29870 STARTER, 188 DIESEL ENGINE (55) - ELECTRICAL SYSTEMS

1

A47494

STARTING MOTOR

Starter Assembly - remanufactured

1шт.

1

A47495

CORE-STARTER

Return Part Number - Use this part number to return starter core for credit

1шт.

The R29870 subs to 104202A2R. This starter changed from a 10-tooth gear to a 9-tooth gear for faster cranking speed. This changed the nose piece in the area of the offset. Megavolt gets more cores in on the 10-tooth gear and the offset is only .050 diff. between the two gears. At times the nose pieces get mixed up and the result is the starter gear won't mesh with the ring gear unless the starter mounting bolts are loose. On 2/26/96 (MEGA-VOLT) is in process of designing a fixture to readily identify t

1шт.

1

104202A2R

REMAN-STARTER

Starter Assembly - new (Delco-Remy No. 1109149) (Replaces R29870) Includes: Ref. 2 - 36 on this figure and Ref. 46 - 64 on Figure 76

1шт.

1

104202A1C

CORE-STARTER

Return Part Number

1шт.

1

87297364

REMAN-STARTER

Starter

1шт.

1

87297365

CORE-STARTER

Return Part Number

1шт.

2

A25304

FRAME

FRAME ASSEMBLY - commutator end, Includes: Ref. 3 - 5

1шт.

3

A45152

BUSHING

BUSHING - frame

1шт.

4

A41979

WICK

WICK - oiler

1шт.

5

221-1041

PLUG

PLUG - slotted head, 1/8 inch PT

1шт.

6

A40217

HOLDER

HOLDER - brush (grounded)

2шт.

7

A49472

HOLDER

HOLDER - brush (insulated) (Replaces R15027)

2шт.

8

A25359

SPRING

SPRING - brush pressure

2шт.

9

A25356

BRUSH, COMMUTATOR

BRUSH BRUSH - armature

4шт.

10

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW ASSEMBLY - brush to insulated holder

2шт.

11

A42124

SCREW,#8 - 32 x 5/8"

SCREW ASSEMBLY - brush to grounded holder

2шт.

12

A25379

KIT

SUPPORT KIT - brush holder, Includes: Ref. 13 - 18

2шт.

13

NSS

NOT SOLD SEPARAT

SUPPORT

1шт.

14

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW - round head, No. 10-24 x 1/2 inch

2шт.

15

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

16

129-17

NUT,Hex, #10 - 24

NUT - No. 10-24 hex

2шт.

17

R15035

PIN

PIN - brush holder

1шт.

18

A42494

ELECTRICAL WIRE

WIRE LEAD - brush ground

1шт.

19

NSS

NOT SOLD SEPARAT

FRAME - starter body

1шт.

20

A25548

COIL

COIL ASSEMBLY - field

1шт.

21

A25391

SHOE

SHOE - pole

4шт.

22

A42127

SCREW,3/8" - 24 x 0.20"

SCREW - pole shoe

8шт.

23

A40225

CONNECTOR, ELEC

CONNECTOR CONNECTOR -, Serial Range: field-solenoid

1шт.

24

A41980

GROMMET

GROMMET - connector insulating (in frame)

1шт.

25

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

SCREW - round head, No. 10-32 x 7/16 inch

1шт.

26

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

27

A25547

ARMATURE

ARMATURE

1шт.

28

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - thrust (at commutator end)

1шт.

29

A40215

PLATE ASSY.

PLATE ASSEMBLY - center bearing, Includes: Ref. 30

1шт.

30

R15038

BUSHING

BUSHING - center bearing

1шт.

31

A41959

SCREW,#10 - 32 x 3/8"

SCREW - center bearing to drive housing

4шт.

32

R15043

WASHER

WASHER - thrust, center bearing

1шт.

33

A45565

DRIVE

DRIVE ASSEMBLY

1шт.

33

87421540

REMAN-STARTER DRIVE

480D, 480LL, Both CASE CONSTRUCTION KING LOADER BACKHOE, DRIVE ASSEMBLY, Reman for New PN A45565

1шт.

33

87421541

CORE-STARTER DRIVE

Return Part Number

1шт.

34

R15049

COLLAR

COLLAR - drive stop

1шт.

35

R15048

RING

RING - snap, stop collar retaining

1шт.

36

A25385

WASHER

WASHER - thrust (Drive end)

1шт.
