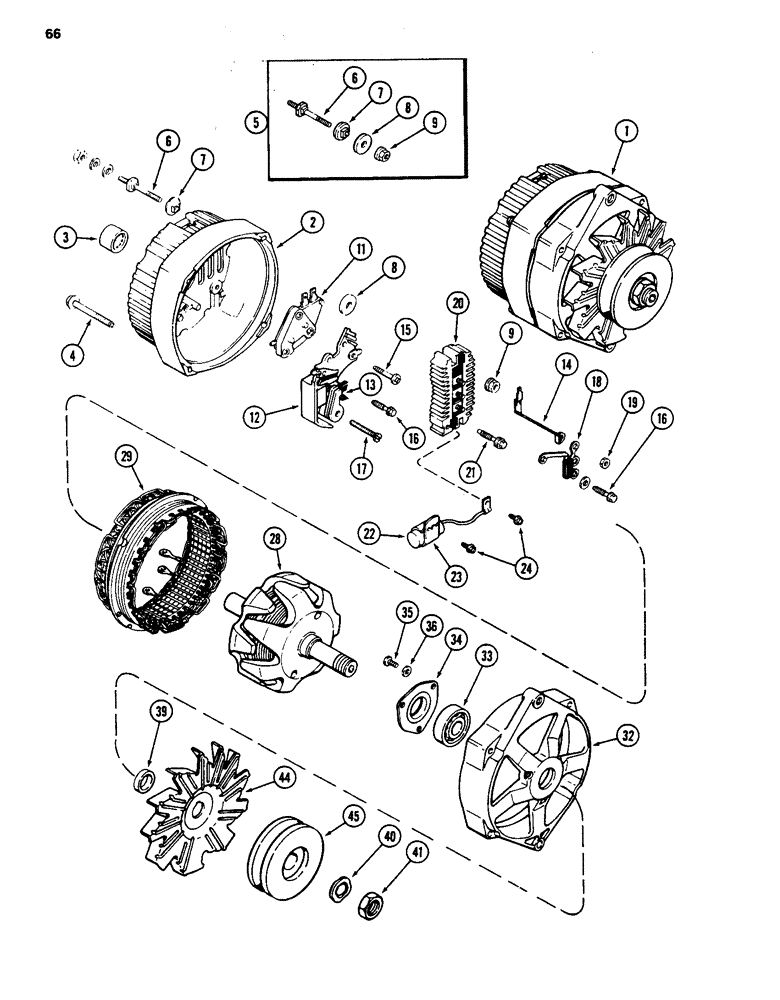

Запчасти Case 480D (066) - ALTERNATOR (55) - ELECTRICAL SYSTEMS

1

L102693

ALTERNATOR ASSEMBLY - Delco-Remy No. 1103125, J I Case Installed (Order A47623 alternator, A43384 fan and A51561 pulley)

1шт.

1

A47436

ALTERNATOR

ALTERNATOR ASSEMBLY - remanufactured

1шт.

1

A47444

REMAN-ALTERNATOR

Reman For New P/N A47436

1шт.

1

A47437

CORE-ALTERNATOR

Return Number - use this part number to return alternator core for credit

1шт.

1

A47623

ALTERNATOR

ALTERNATOR ASSEMBLY - new, Delco-Remy No. 1103133, Used for repairs only, Includes: Ref. 2 - 41

1шт.

1

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 61 AMP Alternator

1шт.

1

103801A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 61 AMP Alternator

1шт.

1

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 63 AMP Alternator

1шт.

1

103799A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 63 Amp Alternator

1шт.

1

103802A1R

REMAN-ALTERNATOR

Reman For New P/N A47623

1шт.

1

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

2

A47595

FRAME

FRAME ASSEMBLY - slip ring end

1шт.

3

A47578

ROLLER BEARING,0.6694" ID x 0.937" OD x 0.73"

BEARING - roller

1шт.

4

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

BOLT - through hex head with washer No. 10-24 x 1-3/4 inch

4шт.

5

A47597

TERMINAL CONNECTOR

TERMINAL KIT - battery, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

STUD - terminal

1шт.

7

NSS

NOT SOLD SEPARAT

INSULATOR - terminal

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - insulating

1шт.

9

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY

2шт.

11

A45213

REGULATOR

REGULATOR - voltage

1шт.

12

A47042

HOLDER

HOLDER ASSEMBLY - brush, Includes: Ref. 13

1шт.

13

A47987

BRUSH, COMMUTATOR

BRUSH BRUSH - alternator

2шт.

14

A47045

TERMINAL CONNECTOR

TERMINAL - relay

1шт.

15

A47043

SCREW,#8 - 32 x 21"

SCREW - brush holder, grounded

1шт.

16

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

SCREW - brush holder, insulated

2шт.

17

A47581

SCREW,#8 - 32 x 1.43"

SCREW - brush holder attaching

1шт.

18

A48339

DIODE

DIODE - trio (Replaces A45219)

1шт.

19

129-16

NUT,#8-32

NUT, , Trio diode to rectifier bridge #8-32

3шт.

20

A45394

RECTIFIER

RECTIFIER BRIDGE

1шт.

21

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

SCREW - rectifier bridge attaching

1шт.

22

A47734

CAPACITOR

CAPACITOR - alternator

1шт.

23

A45227

CLAMP

BRACKET - capacitor mounting

1шт.

24

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW - capacitor bracket and lead

2шт.

28

A47047

ROTOR

ROTOR ASSEMBLY - alternator

1шт.

29

A47048

ARMATURE

STATOR ASSEMBLY - alternator

1шт.

32

A46933

FRAME

FRAME - drive end (Replaces A47596)

1шт.

33

A49389

BEARING ASSY

BEARING - ball, drive end (Replaces A47579)

1шт.

34

A44433

PLATE

PLATE - bearing retaining

1шт.

35

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

SCREW - bearing plate retaining

3шт.

36

195-512

WASHER,#10

WASHER - flat, 7/32 x 7/16 x 1/16 inch (6 x 11 x 2 mm)

4шт.

39

A47577

FRAME

COLLAR - rotor shaft

1шт.

40

R16171

SPRING WASHER

WASHER - lock, pulley nut

1шт.

41

A25546

NUT

NUT - pulley and fan retaining

1шт.

44

A43384

FAN

FAN - ventilating

1шт.

45

A51561

PULLEY

PULLEY - drive

1шт.
