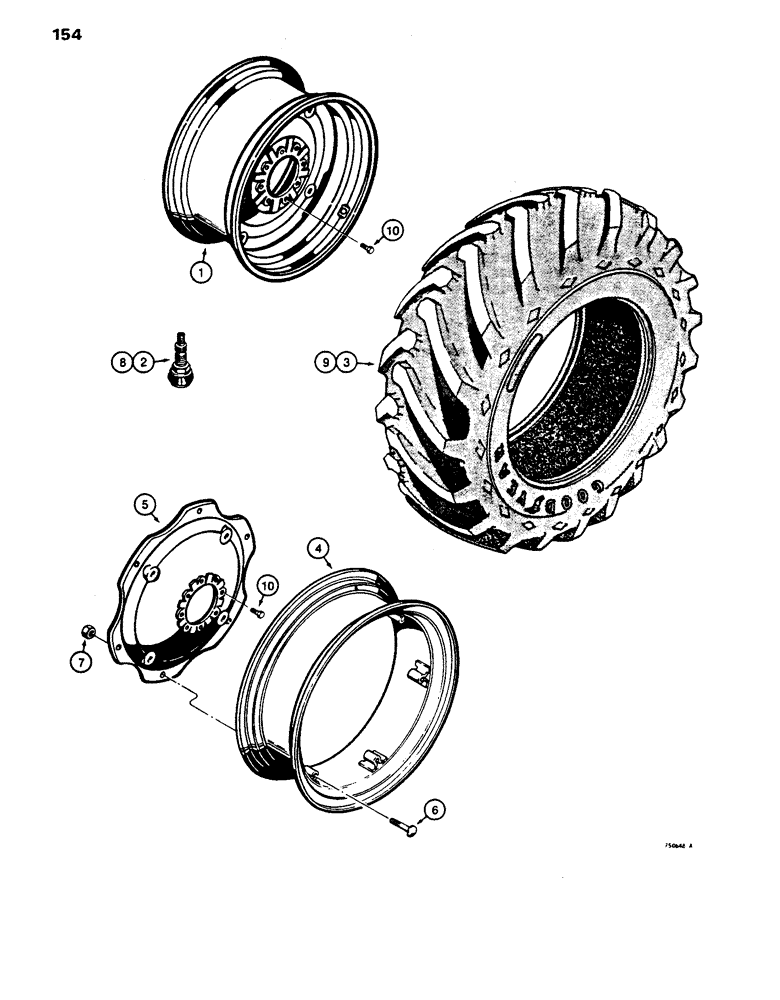

Запчасти Case 480D (154) - REAR WHEELS AND TIRES (44) - WHEELS

1

A139083

WHEEL

- rim, 13.6 x 24 and 14.9 x 24 fixed disc

2шт.

2

A20058

VALVE STEM

- wheel, 13.6 x 24 and 14.9 x 24 fixed disc

2шт.

3

REF

INSTRUCTION

TIRE - rear, 13.6 x 24 and 14.9 x 24 fixed disc wheel

2шт.

1

A139085

WHEEL

- rim, 16.9 x 24 and 17.5L x 24 fixed disc

2шт.

2

A20058

VALVE STEM

- wheel, 16.9 x 24 and 17.5L x 24 fixed disc

2шт.

3

REF

INSTRUCTION

TIRE - rear, 16.9 x 24 and 17.5L x 24 fixed disc

2шт.

1

A139084

RIM

WHEEL - rim, 13.6 x 24 and 14.9 x 24 offset fixed disc

2шт.

2

A20058

VALVE STEM

- rim, 13.6 x 24 and 14.9 x 24 offset fixed disc

2шт.

3

REF

INSTRUCTION

TIRE - rear, 13.6 x 24 and 14.9 x 24 offset fixed disc

2шт.

4

D72304

RIM

- tire, 13.6 x 24 and 14.9 x 24 demountable

2шт.

5

D72323

DISC, WHEEL

DISC - wheel, demountable, 13.6 x 24 and 14.9 x 24 rim

2шт.

6

G10701

BOLT

- special, 5/8" - 18 NF x 2-11/16", 13.6 x 24 and 14.9 x 24 demountable rim

12шт.

7

129-565

SPECIAL NUT,5/8"-18, G5

- hex, 5/8" - 18 NF, plated, 13.6 x 24 and 14.9 x 24 demountable rim

12шт.

8

A20058

VALVE STEM

- rim, 13.6 x 24 and 14.9 x 24 demountable

2шт.

9

REF

INSTRUCTION

TIRE - rear, 13.6 x 24 and 14.9 x 24 demountable rim

2шт.

4

D72303

RIM

- tire, 16.9 x 24 and 17.5L x 24 demountable

2шт.

5

D72323

DISC, WHEEL

DISC - wheel, 16.9 x 24 and 17.5L x 24 demountable rim

2шт.

6

G10701

BOLT

- special, 5/8" - 18 NF x 2-11/16", 16.9 x 24 and 17.5L x 24 demountable rim

12шт.

7

129-565

SPECIAL NUT,5/8"-18, G5

- hex, 5/8" - 18 NF, plated, 16.9 x 24 and 17.5L x 24 demountable rim

12шт.

8

A20058

VALVE STEM

- rim, 16.9 x 24 and 17.5L x 24 demountable

2шт.

9

REF

INSTRUCTION

TIRE - rear, 16.9 x 24 and 17.5L x 24 demountable rim

2шт.

10

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

Retaining

16шт.
