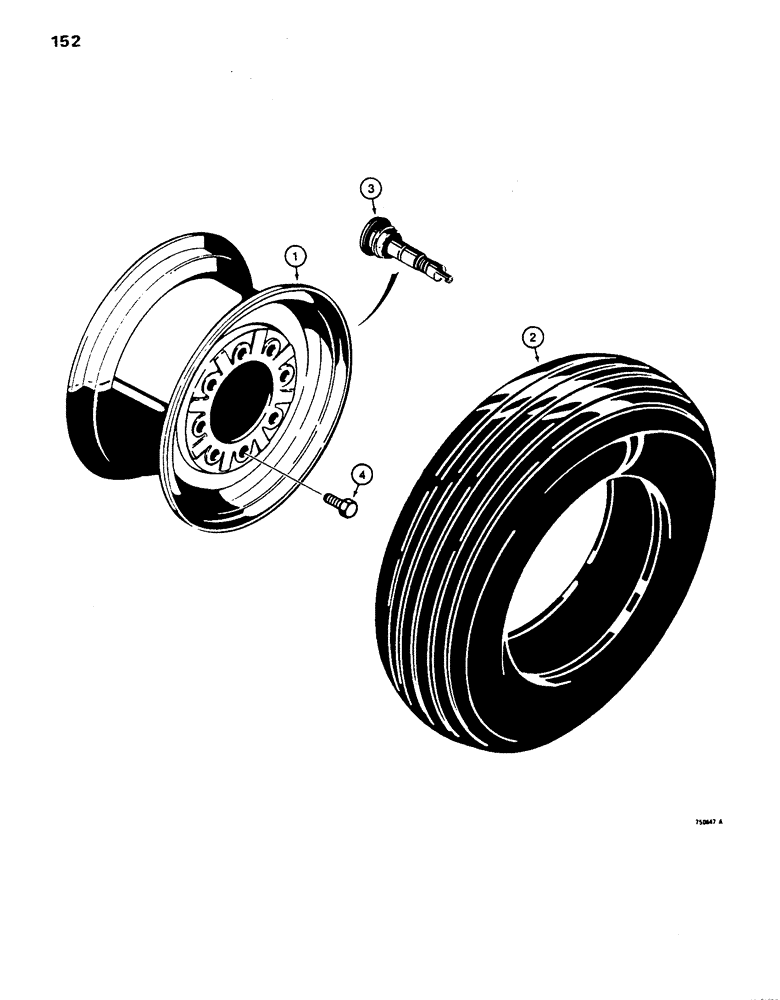

Запчасти Case 480D (152) - FRONT WHEELS AND TIRES (44) - WHEELS

1

A139081

WHEEL

- rim, 6.50 x 16, 7.50 x 16 and 8.00 x 16

2шт.

2

REF

INSTRUCTION

TIRE - front, 6.50 x 16, 7.50 x 16 and 8.00 x 16

2шт.

3

A38261

VALVE

STEM - wheel, 6.50 x 16, 7.50 x 16 and 8.00 x 16

2шт.

1

A139082

WHEEL

- rim, 11L x 16

2шт.

2

REF

INSTRUCTION

TIRE - front, 11L x 16

2шт.

3

A38261

VALVE

STEM - wheel, 11L x 16

2шт.

4

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

Retaining

16шт.
