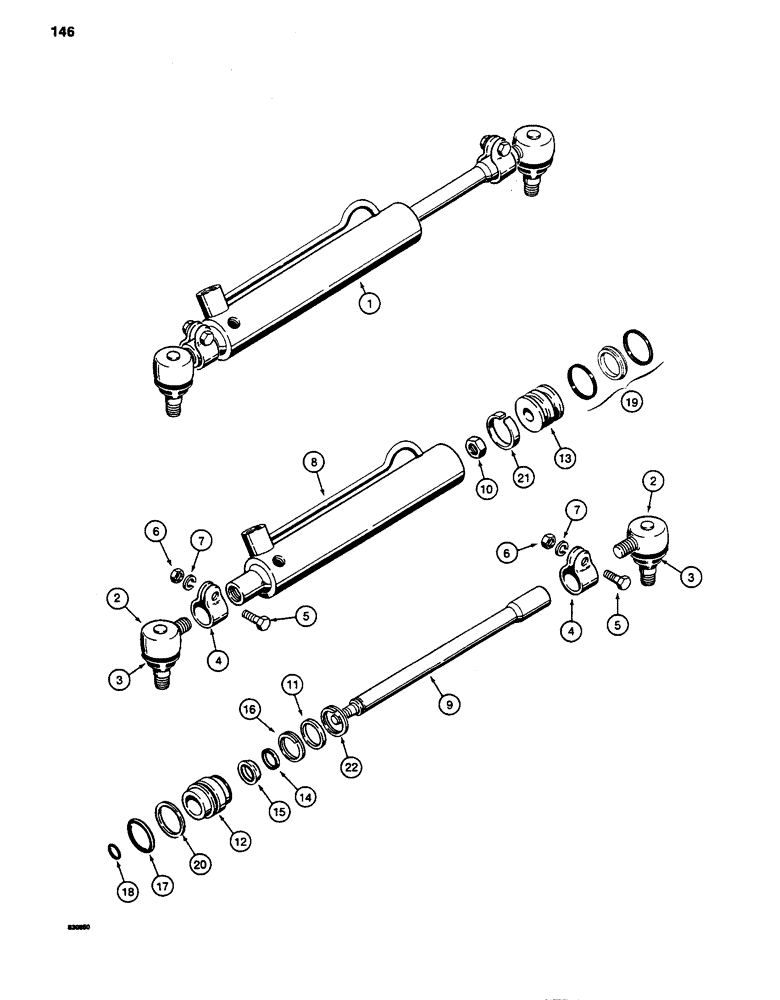

Запчасти Case 480D (146) - D128454 STEERING CYLINDER (41) - STEERING

1

D128454

STEERING CYLINDER

CYLINDER - steering, interchangeable with D84800 steering cylinder, Includes: Ref. 2 - 22

2шт.

2

A40962

BALL JOINT

- male thread, Includes: Ref. 3

2шт.

3

A41424

SEAL

BOOT - dust cover

1шт.

A27080

CLAMP

ASSEMBLY - end, Includes: Ref. 4 - 7

2шт.

4

NSS

NOT SOLD SEPARAT

CLAMP - end

1шт.

5

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

D83188

CYLINDER

TUBE - cylinder

1шт.

9

N8890

PISTON ROD

ROD - cylinder, hardened

1шт.

10

131-1145

JAM NUT,5/8" - 18

NUT - hex, self-locking, 9/16" - 18 NF, plated

1шт.

11

A44641

SPACER,31.62mm ID x 34.37mm OD x 7.7mm L

- head

1шт.

12

D83189

GLAND

ASSEMBLY - cylinder, includes bushing

1шт.

13

D83190

PISTON

- cylinder

1шт.

D83184

GASKET KIT

KIT - cylinder repair, Includes: Ref. 14 - 21

1шт.

14

A44651

WIPER SEAL,18.49mm ID x 25.3mm OD x 3.63mm Thk

WIPER - rod

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

16

A44652

SNAP RING,#150, 1.591", Int, Spiral

RING - lock, gland

1шт.

17

S6582

O-RING,1.234" ID x 1.512" OD x 0.139"

- outer gland

1шт.

18

A64436

O-RING,0.549" ID x 0.755" OD

- rod to piston

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

20

A45035

SEALING RING,34.88mm ID x 38mm OD x 1.58mm W

BACKUP RING - O-ring

1шт.

21

NSS

NOT SOLD SEPARAT

RING - wear, piston

1шт.

22

A44654

SNAP RING,#125, 1.188", Ext Spiral

RING - lock, outer

1шт.
