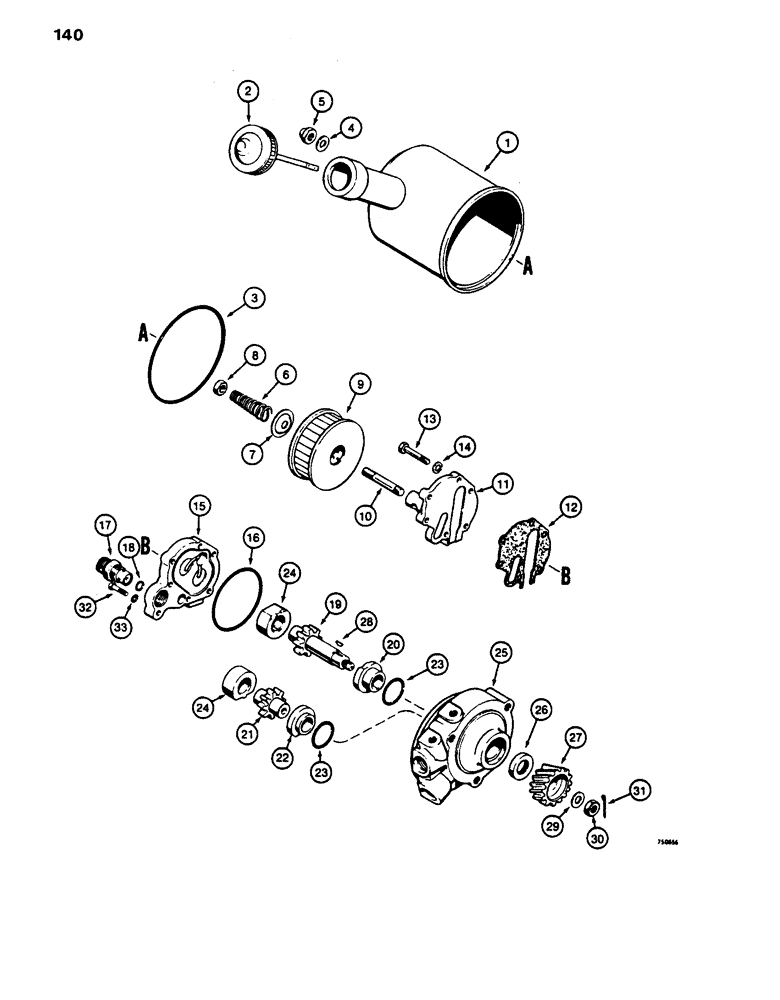

Запчасти Case 480D (140) - D84179 POWER STEERING PUMP (41) - STEERING

D84179

PUMP

STEERING PUMP ASSEMBLY - tractor, Includes: Ref. 1 - 33

1шт.

D84179R

REMAN-HYD PUMP

480LL

1шт.

D84179C

CORE-HYDRAULIC PUMP

Return Number

1шт.

D84179R

REMAN-HYD PUMP

480D

1шт.

D84179C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

A35951

RESERVOIR

- oil

1шт.

2

A35967

GAUGE

CAP - reservoir, includes dipstick

1шт.

2

A35967AM

DIPSTICK

CAP - reservoir, includes dipstick

1шт.

3

A35965

O-RING,2.87mm Thk x 120.27mm ID

GASKET - reservoir

1шт.

4

A42164

WASHER,9.93mm ID x 25.4mm OD x 2.31mm Thk

- reservoir nut

1шт.

5

129-525

CROWN NUT,Crown, 3/8"-16

DOME NUT - 3/8" - 16 NC

1шт.

6

A35963

SPRING

- element tension

1шт.

7

A35962

CAP

SEAT - element spring

1шт.

8

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex, jam, 3/8" - 16 NC

1шт.

9

A42242

FILTER, ELEMENT

ELEMENT - filter

1шт.

10

A35952

STUD

- 3/8" - 16 NC x 2-3/8"

1шт.

11

A35950

COVER

- pump, rear

1шт.

12

A35966

GASKET

- rear cover

1шт.

13

26-426

BOLT,Hex, 1/4" - 20 x 1-5/8", Gr 8

- hex head, 1/4" - 20 NC x 1-5/8", grade 8

6шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

15

A35949

COVER

- pump, intermediate

1шт.

16

A35959

O-RING,2.55" ID x 2.756" OD x 0.103"

O-RING - cover

1шт.

17

D83222

VALVE

RELIEF VALVE - steering pump

1шт.

18

A42187

O-RING,0.426" ID x 0.566" OD x 0.07"

- relief valve

1шт.

19

A25593

GEAR

DRIVEN GEAR - steering pump

1шт.

20

A35957

BEARING

- gear, front

1шт.

21

A35954

GEAR

IDLER GEAR - steering pump

1шт.

22

A35955

BEARING

- idler gear, front

1шт.

23

D54277

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

- body

2шт.

24

A35956

BEARING

- rear

2шт.

25

D71329

BODY

- front

1шт.

26

A50421

OIL SEAL,19.05mm ID x 31.95mm OD x 6.73mm Thk

- oil

1шт.

27

A25594

GEAR

PINION GEAR - pump drive

1шт.

28

126-109

WOODRUFF KEY,#3, 1/8" x 1/2", HT

1шт.

29

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

30

F18390

NUT

- special, 3/8" - 24 NF

1шт.

31

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

32

26-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 8

- hex head, 1/4" - 20 NC x 7/8", grade 8

1шт.

33

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.
