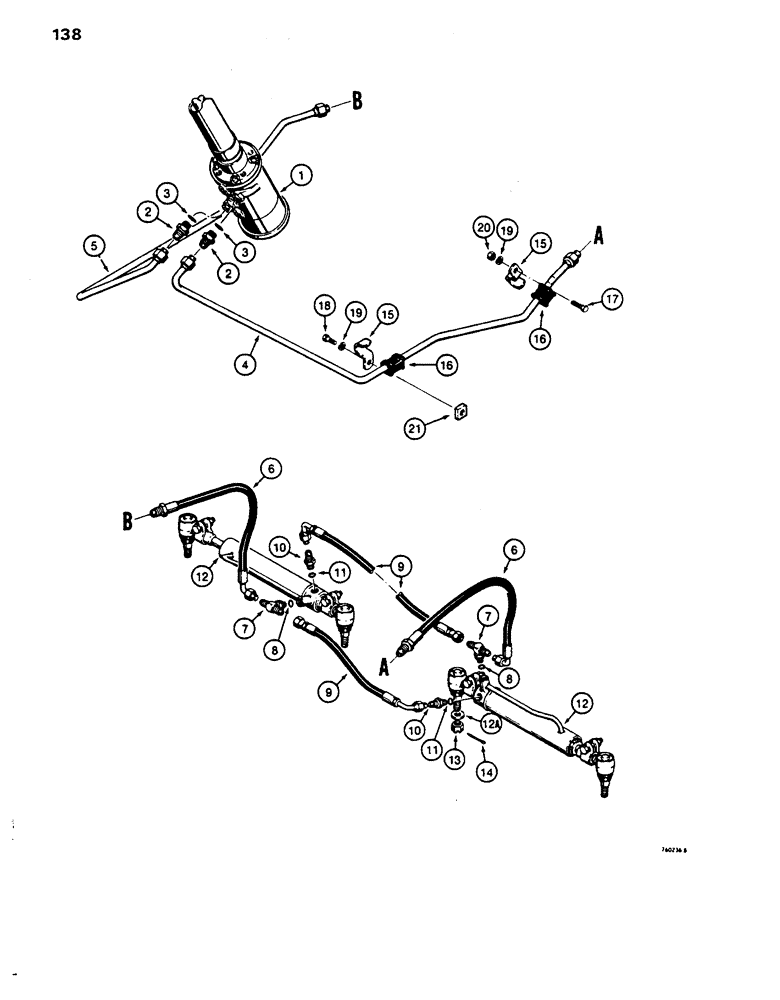

Запчасти Case 480D (138) - STEERING HYDRAULIC CIRCUIT, STEERING CONTROL VALVE TO CYLINDERS (41) - STEERING
№
Артикул
Название
Примечание
Количество
1
D89898
PUMP
CONTROL VALVE - steering, includes steering column, parts list Figure 142
1шт.
1
D89898R
REMAN-STEERING VALVE
480D, 480LL, Both CASE CONSTRUCTION KING LOADER BACKHOE, CONTROL VALVE
1шт.
1
D89898C
CORE-STEERING VALVE
Return Number
1шт.
2
D76050
HARDWARE
ADAPTER - straight, male, restrictor type, Includes: Ref. 3
2шт.
3
218-5005
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, adapter
1шт.
4
D70808
HYD TUBE,0.5" OD x 4.96, 28.48" L
TUBE - to right-hand steering cylinder
1шт.
5
D70806
HYD TUBE,0.5" OD x 5.72, 27.77" L
TUBE - to left-hand steering cylinder
1шт.
6
D62390
HOSE,9.53mm ID x 508mm L, SAE 100R1
- 20" (508 mm) long, to steering cylinders
2шт.
7
218-5182
TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
- adjustable, Includes: Ref. 8
2шт.
8
218-5005
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, tee
1шт.
9
D126884
HOSE,9.53mm ID x 382mm L, SAE 100R1
- 15" (382 mm) long, between cylinders
2шт.
10
218-5057
HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB
ADAPTER - straight, male, Incl. Ref. 11
2шт.
11
218-5005
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, adapter
1шт.
12
REF
INSTRUCTION
CYLINDER - steering, parts list Figure 146
2шт.
12a
95-10
WASHER,5/8"
- flat, , if used 5/8"
2шт.
13
129-610
SLOTTED NUT,5/8"-18, G5
4шт.
14
132-50
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
4шт.
15
D68638
CLAMP
- tube
4шт.
16
D67296
GROMMET
INSULATOR - tube clamp
4шт.
17
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
19
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
20
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
2шт.
21
25-226
SQUARE NUT,Sq, 3/8"-16
- square, 3/8" - 16 NC, if used in cage
2шт.
Выбрано товаров: 24
