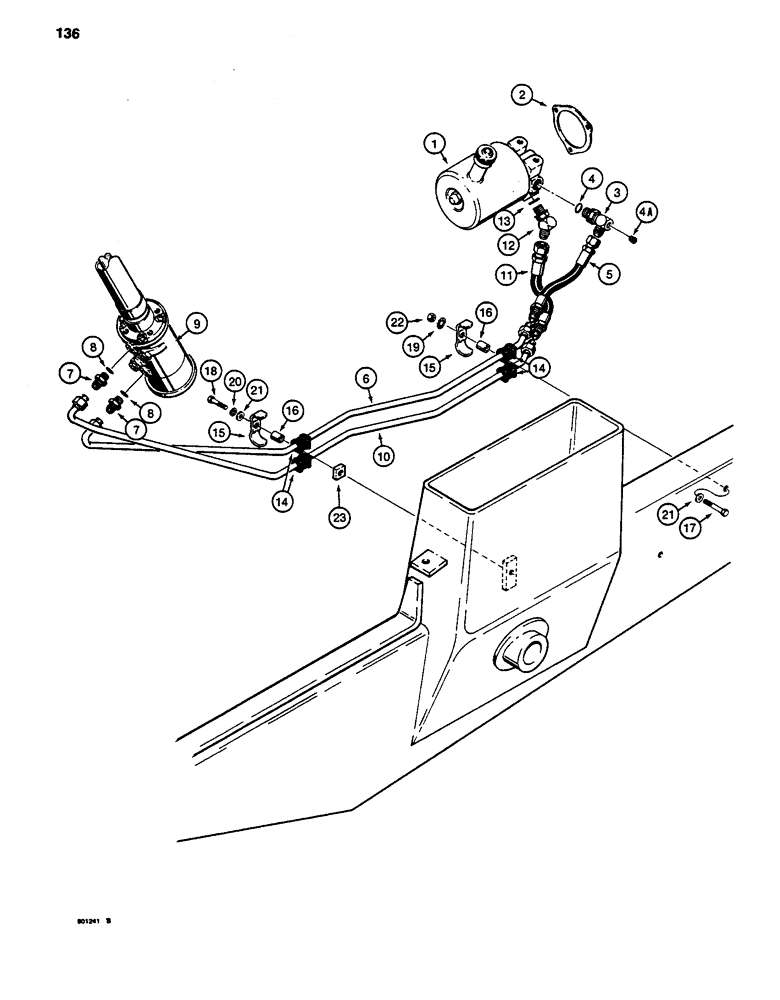

Запчасти Case 480D (136) - STEERING HYDRAULIC CIRCUIT, STEERING PUMP TO STEERING CONTROL VALVE (41) - STEERING

1

D84179

PUMP

STEERING PUMP - parts list Figure 140

1шт.

D84179R

REMAN-HYD PUMP

480LL

1шт.

D84179C

CORE-HYDRAULIC PUMP

Return Number

1шт.

D84179R

REMAN-HYD PUMP

480D

1шт.

D84179C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

A30042

GASKET

- steering pump

1шт.

3

R30587

ELBOW

- adjustable, 90 degree, special (Replaces R30547) Includes: Ref. 4

1шт.

4a

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket head, 1/8" NPT, if used

1шт.

5

D63184

HOSE,9.53mm ID x 304.8mm L, SAE 100R2

- 12" (305 mm) long, from steering pump

1шт.

6

D70810

HYD TUBE,0.5" OD x 24.98, 29.16" L

TUBE - to steering valve, pressure

1шт.

7

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, male, Includes: Ref. 8

2шт.

8

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

9

D89898

PUMP

CONTROL VALVE - steering, includes steering column, parts list Figure 142

1шт.

9

D89898R

REMAN-STEERING VALVE

480D, 480LL, Both CASE CONSTRUCTION KING LOADER BACKHOE, CONTROL VALVE

1шт.

9

D89898C

CORE-STEERING VALVE

Return Number

1шт.

10

D70812

HYD TUBE,0.5" OD x 27.25, 30.13" L

TUBE - from control valve, return

1шт.

11

D63184

HOSE,9.53mm ID x 304.8mm L, SAE 100R2

- 12" (305 mm) long, to steering pump

1шт.

12

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- adjustable, 45 degree, Incl. Ref 13

1шт.

14

D67296

GROMMET

INSULATOR - tube

4шт.

15

D68646

CLAMP

- tube

2шт.

16

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- tube clamp

2шт.

17

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

18

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

19

193-72

LOCK WASHER

- internal-external tooth lock, 3/8", plated

1шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

21

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, if used

1шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

23

25-226

SQUARE NUT,Sq, 3/8"-16

- square, 3/8" - 16 NC, if used in cage

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
