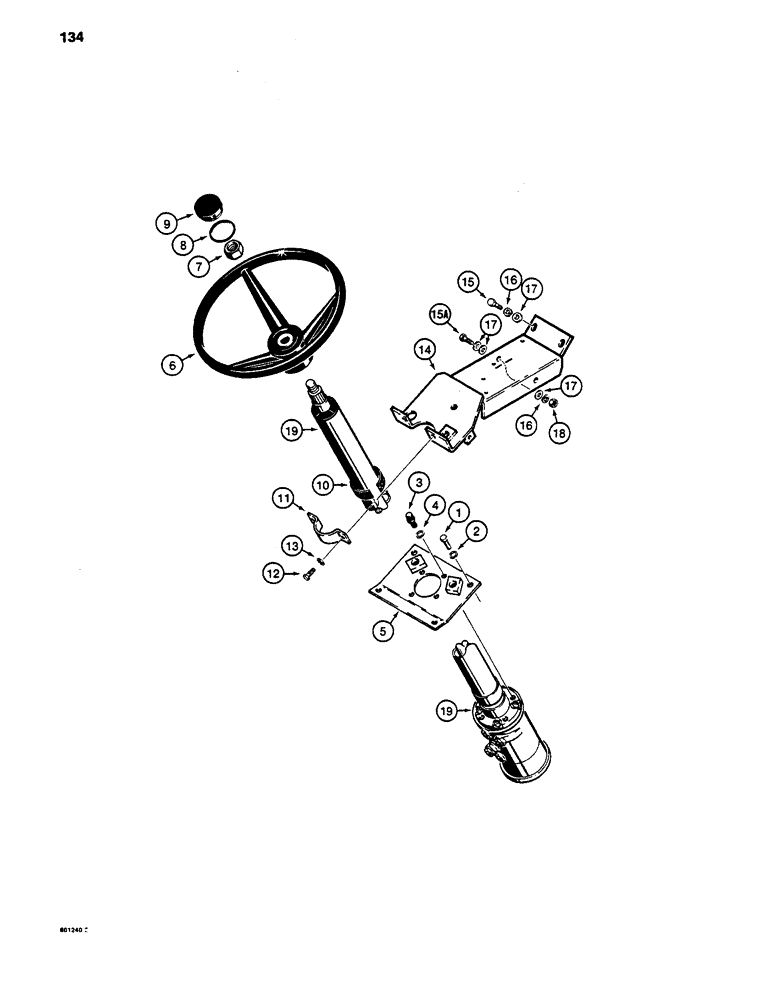

Запчасти Case 480D (134) - STEERING WHEEL AND COLUMN (41) - STEERING

1

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

2

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3

163-23

SCREW,Hex, #10 - 32 x 3/4"

MACHINE SCREW - hex head, No. 10 - 32 NF x 3/4", plated

4шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

5

D71584

PLATE

- control valve mounting

1шт.

6

A65544

STEERING WHEEL

- Tractor

1шт.

7

F19646

LOCK NUT,13/16"-20, Thin

NUT - steering wheel retaining

1шт.

8

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

- cap

1шт.

9

A62210

PLUG

CAP - steering wheel nut cover

1шт.

10

D66844

PADDING

COLLAR - steering column

1шт.

11

D66049

CLAMP

- steering column

1шт.

12

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

14

D99515

BRACKET

- steering column support

1шт.

15

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

15a

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

17

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

5шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

19

D89898

PUMP

CONTROL VALVE - includes steering column, parts list Figure 142

1шт.

19

D89898R

REMAN-STEERING VALVE

480D, 480LL, Both CASE CONSTRUCTION KING LOADER BACKHOE, CONTROL VALVE

1шт.

19

D89898C

CORE-STEERING VALVE

Return Number

1шт.
