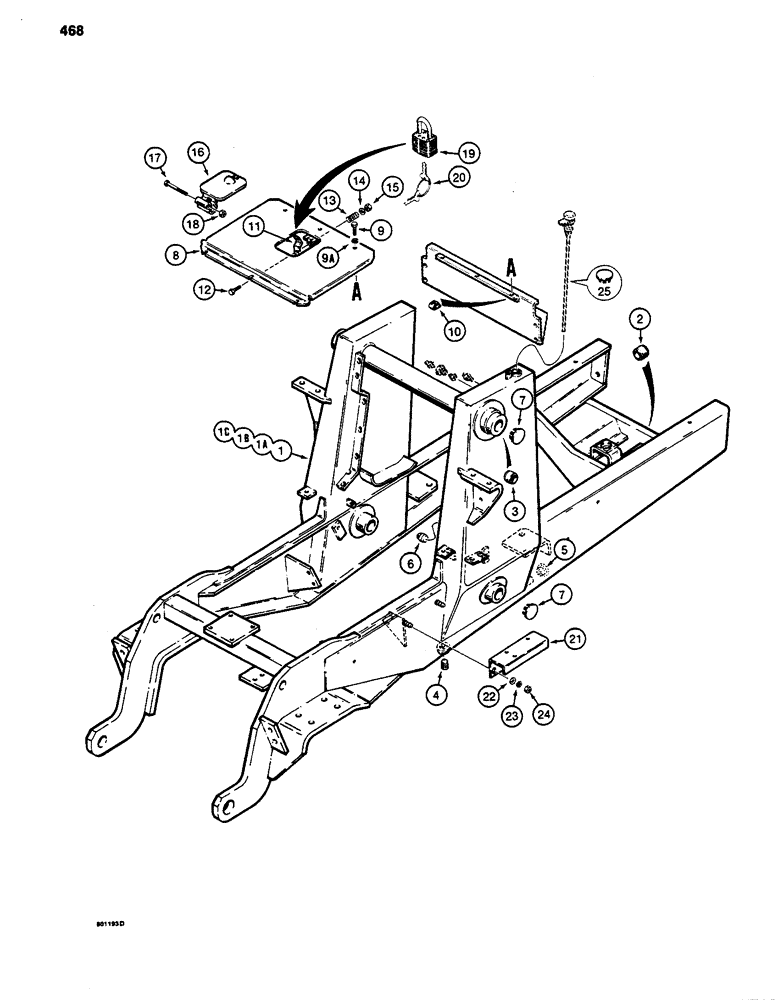

Запчасти Case 480D (468) - CHASSIS (39) - FRAMES AND BALLASTING

1

D82523

CHASSIS - tractor, no longer available, order D124434 chassis, Includes: Ref. 2 - 4

1шт.

1a

D124434

FRAME

CHASSIS - tractor, includes decals, used before tractor SN 9080011, not shown, Includes: Ref. 2 - 4

1шт.

1b

D124274

FRAME

CHASSIS - tractor, includes decals, used on tractor SN 9080011 and after, not shown, no longer available, order D129574 chassis, Includes: Ref. 2 - 4

1шт.

1c

D129574

FRAME ASSY

CHASSIS - tractor, includes decals, not shown, Includes: Ref. 2 - 4

1шт.

2

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

- front axle mounting

2шт.

3

D37443

BUSHING,44.68mm ID x 57.15mm OD x 50.8mm L

- loader frame pivot

2шт.

4

D123893

PLUG

DRAIN PLUG - hydraulic reservoir, hex head, 3/4 NPT

1шт.

5

343-23

PLUG - plastic, No. 15, reservoir outlet tube, used only on drawbar tractors without equipment hydraulics

1шт.

6

221-15

PLUG,Sq Hd, 3/4"-14

- square head, 3/4" NPT, reservoir return port, used only on drawbar tractors without equipment hydraulics

1шт.

7

353-416

PLUG,Dome, 1.750" hole, Nylon

- button, nylon, 1-3/4", used on models without loader

4шт.

8

D99048

CAP

COVER - chassis

1шт.

9

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

9a

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

10

131-97

SPRING NUT,Tinn, U, 5/16"-18

- U-type, 5/16" - 18 NC

3шт.

11

D99215

LATCH

- cover, diesel fuel

1шт.

12

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

13

D128398

SPRING

- latch

1шт.

14

195-102

WASHER,1/4"

- flat, , plated 1/4"

1шт.

15

131-2

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

1шт.

16

D92446

DOOR

COVER - diesel fuel access, remove decal that applies to radiator access only

1шт.

17

113-53

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

1шт.

18

131-2

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

1шт.

19

D93753

PADLOCK

- cover, includes keys, if used, Includes: Ref. 20

1шт.

20

R29555

KEY

- for Master padlock only

2шт.

20

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

21

D68572

BRACKET

SUPPORT - hydraulic tubes, used on loader models only

1шт.

22

195-103

WASHER,5/16"

- flat, , plated 5/16"

2шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

24

9635082

NUT,5/16" - 18, Gr 5

2шт.

25

323-422

PLUG - button, 1-1/4" (32 mm) diameter, used on models without loader hydraulic system

1шт.
