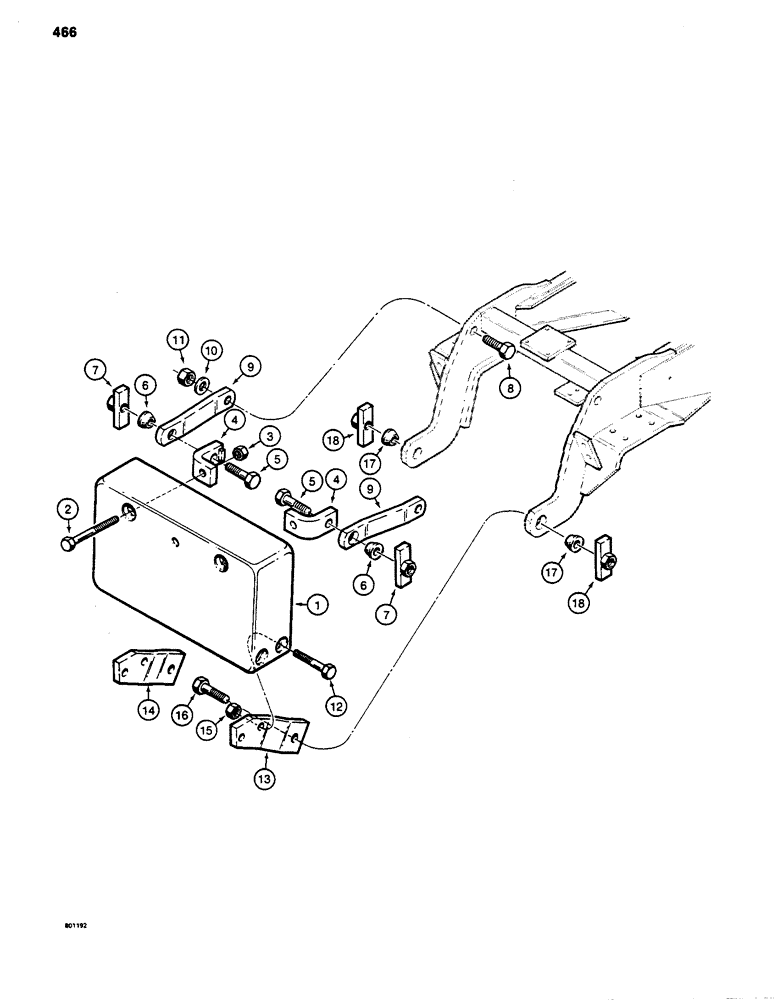

Запчасти Case 480D (466) - REAR COUNTERWEIGHT, 480D MODELS ONLY (39) - FRAMES AND BALLASTING

1

D31204

BALANCER

COUNTERWEIGHT - rear, 1425 lbs (646 kg)

1шт.

2

15-16168

BOLT,Hex, 1" - 8 x 10-1/2", Gr 5

- hex head, 1" - 8 NC x 10-1/2"

2шт.

3

131-698

LOCK NUT,1"-8, GB

NUT - hex, self-locking, 1" - 8 NC, plated

2шт.

4

D31530

BRACKET

- counterweight mounting, upper

2шт.

5

113-978

BOLT,Hex, 1-1/4" - 7 x 5", Gr 5

- hex head, 1-1/4" - 7 NC x 5", plated

2шт.

6

D30717

WASHER

- special, cone

2шт.

7

D99480

BLOCK

NUT - special, knock-off

2шт.

8

D69035

BOLT

- special, 1-1/4" - 7 NC x 3-1/2"

2шт.

9

D70230

LINK

ARM - support, upper, not used on models with three-point hitch

2шт.

10

D64968

WASHER

- special

2шт.

11

25-1020

NUT,1 1/4"-7, G5

2шт.

12

113-929

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

- hex head, 1" - 8 NC x 6-1/2", plated

4шт.

13

D44977

ARM

- support at counterweight, right-hand

1шт.

14

D44978

ARM

- support at counterweight, left-hand

1шт.

15

131-698

LOCK NUT,1"-8, GB

NUT - hex, self-locking, 1" - 8 NC, plated

4шт.

16

113-978

BOLT,Hex, 1-1/4" - 7 x 5", Gr 5

- hex head, 1-1/4" - 7 NC x 5", plated

2шт.

17

D30717

WASHER

- cone, special

2шт.

18

D99480

BLOCK

NUT - special, knock-off

2шт.
