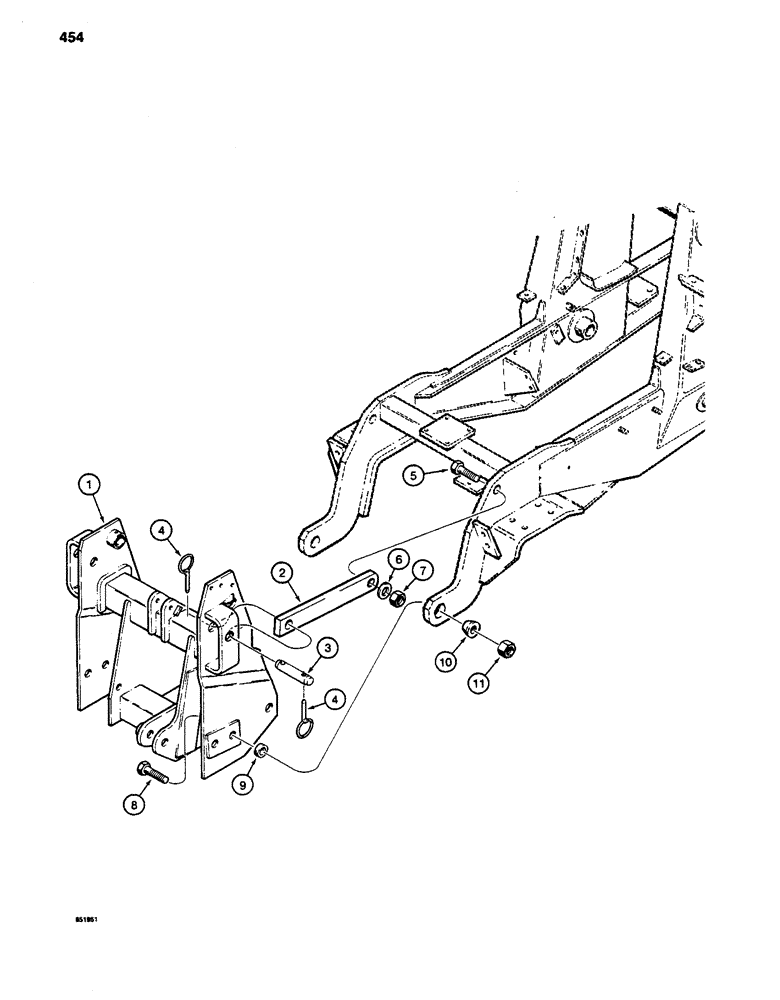

Запчасти Case 480D (454) - THREE-POINT HITCH FRAME AND MOUNTING PARTS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

D102085

FRAME

KIT - three-point hitch mounting frame, Includes: Ref. 1 - 4

1шт.

1

D133255

FUNNEL

FRAME - mounting, three-point hitch

1шт.

2

D133251

LINK

ARM - support, three-point hitch frame

2шт.

3

D133267

PIN

- hitch mounting

2шт.

4

D33805

PIN

- lock

4шт.

5

D69035

BOLT

- special, 1-1/4" - 7 NC x 3-1/2"

2шт.

6

D64968

WASHER

- special

2шт.

7

129-112

NUT,1 1/4"-7, G5

- hex, 1-1/4" - 7 NC, plated

2шт.

8

13-2072

BOLT,Hex, 1-1/4" - 7 x 4-1/2", Gr 5

- hex head, 1-1/4" - 7 NC x 4-1/2"

2шт.

9

L47693

SPACER

- mounting bolt, lower

2шт.

10

D30717

WASHER

- cone

2шт.

11

129-112

NUT,1 1/4"-7, G5

- hex, 1-1/4" - 7 NC, plated

2шт.
