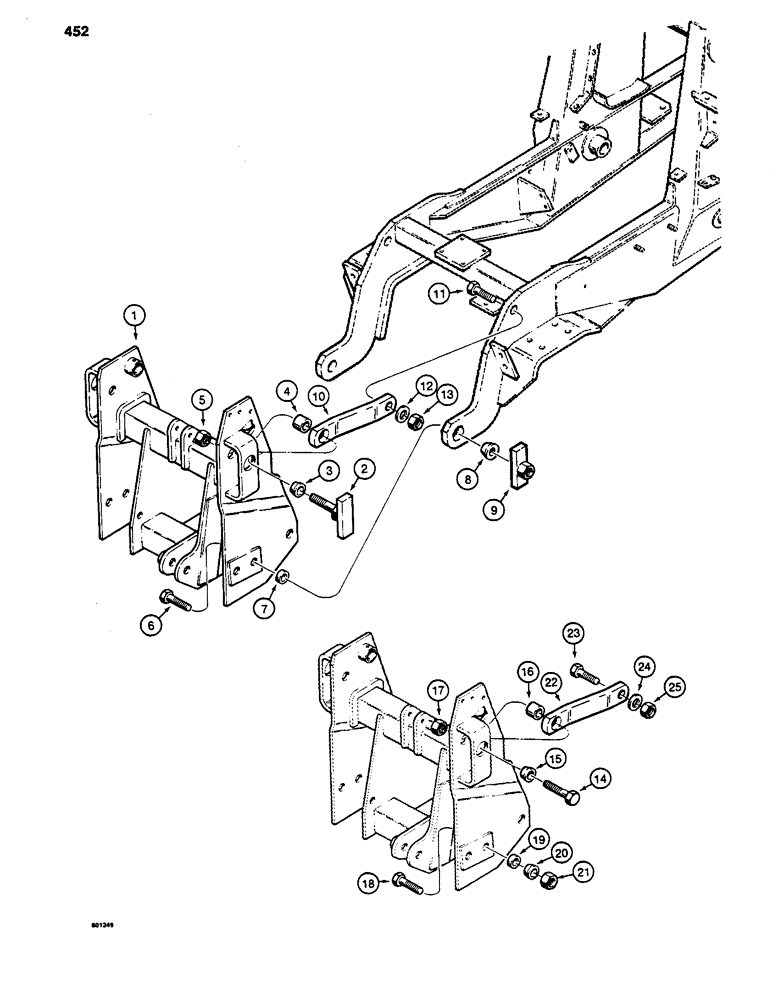

Запчасти Case 480D (452) - THREE-POINT HITCH FRAME AND MOUNTING PARTS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

D90985

FRAME

- mounting, three-point hitch, no longer available, for service order D102085 frame kit on Figure 454

1шт.

2

L47696

BLOCK

BOLT - special, hammer block, no longer used, order 13-2488 bolt (Ref. 14), 480D mounting only

2шт.

3

L47694

CONE

WASHER - cone, 480D mounting only

2шт.

4

L47692

SPACER

- mounting bolt, upper, 480D only

2шт.

5

129-114

NUT,1 1/2"-6, G5

- hex, 1-1/2" - 6 NC, plated, 480D mounting only

2шт.

6

13-2068

BOLT,Hex, 1-1/4" - 7 x 4-1/4", Gr 5

No longer used, Order 13-2072 bolt, 480D mounting only Ref. 18 Hex, 1 1/4"-7 x 4 1/4", G5

2шт.

7

L47693

SPACER

- mounting bolt, lower, 480D only

2шт.

8

D30717

WASHER

- cone, 480D mounting only

2шт.

9

D99480

BLOCK

NUT - special, hammer block, no longer used, order 25-1020 nut (Ref. 25), 480D mounting only

2шт.

10

D70230

LINK

ARM - support, three-point hitch frame, 480D mounting only

2шт.

11

D69035

BOLT

- special, 1-1/4" - 7 NC x 3-1/2", 480D mounting only

2шт.

12

D64968

WASHER

- special, 480D mounting only

2шт.

13

25-1020

NUT,1 1/4"-7, G5

480D mounting only 1 1/4"-7, G5

2шт.

14

13-2488

BOLT,Hex, 1-1/2" - 6 x 5-1/2", Gr 5

- hex head, 1-1/2" - 6 NC x 5-1/2", 480LL mounting only

2шт.

15

L47694

CONE

WASHER - cone, 480LL mounting only

2шт.

16

L47692

SPACER

- mounting bolt, upper, 480LL only

2шт.

17

129-114

NUT,1 1/2"-6, G5

- hex, 1-1/2" - 6 NC, plated, 480LL mounting only

2шт.

18

13-2072

BOLT,Hex, 1-1/4" - 7 x 4-1/2", Gr 5

- hex head, 1-1/4" - 7 NC x 4-1/2", 480LL mounting only

2шт.

19

L47693

SPACER

- mounting bolt, lower, 480LL only

2шт.

20

D30717

WASHER

- cone, 480LL mounting only

2шт.

21

25-1020

NUT,1 1/4"-7, G5

480LL mounting only 1 1/4"-7, G5

2шт.

22

D70230

LINK

ARM - support, three-point hitch frame, 480LL mounting only

2шт.

23

D69035

BOLT

- special, 1-1/4" - 7 NC x 3-1/2", 480LL mounting only

2шт.

24

D64968

WASHER

- special, 480LL mounting only

2шт.

25

25-1020

NUT,1 1/4"-7, G5

480LL mounting only 1 1/4"-7, G5

2шт.
