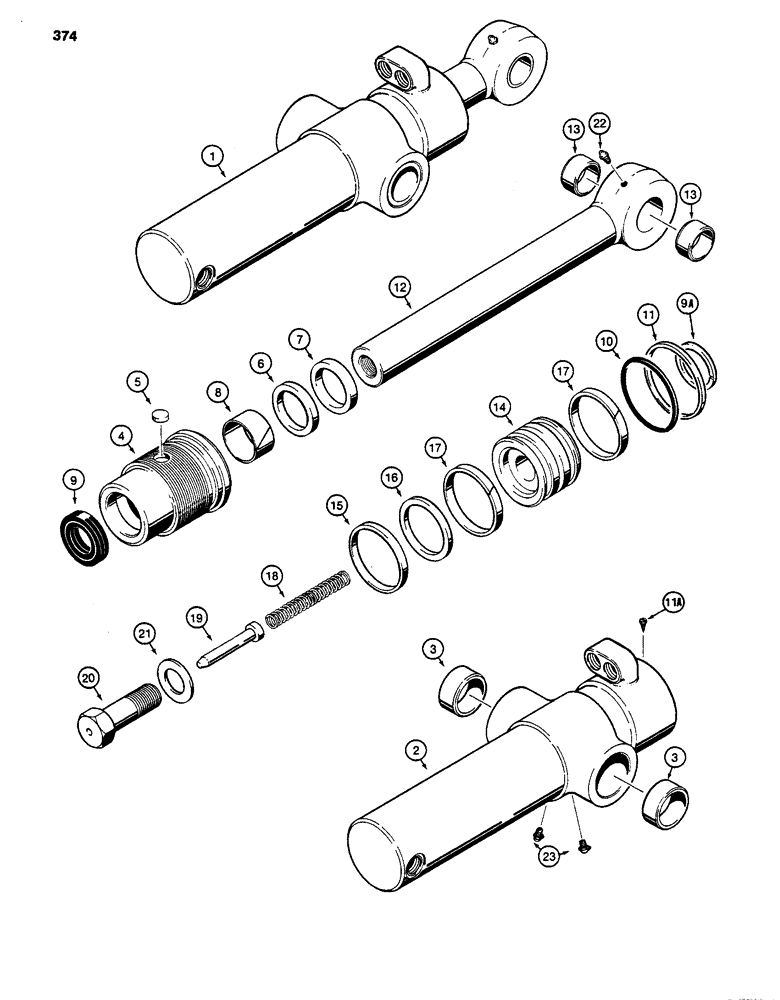

Запчасти Case 480D (374) - G104127 BACKHOE SWING CYLINDERS, 480D MODELS ONLY (35) - HYDRAULIC SYSTEMS

1

G104127

CYLINDER

ASSEMBLY - swing, 3-1/2" (89 mm) ID x 11" (279 mm) stroke, Includes: Ref. 2 - 23

2шт.

2

G104128

TUBE,3.5" DIA x 18.19" L

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- tube, trunnion

2шт.

G104280

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 11

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

6

NSS

NOT SOLD SEPARAT

RETAINING RING - bushing

1шт.

7

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of seal kit P/N G109472

1шт.

8

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center

1шт.

Part of seal kit P/N G109472

1шт.

9

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

U-CUP SEAL - with O-ring, piston rod, wide

1шт.

Part of seal kit P/N G109472

1шт.

9

G100776

SEAL

U-CUP SEAL - piston rod, service option - severe heat or cold

1шт.

9a

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N G109472

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G109472

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of seal kit P/N G109472

1шт.

11a

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex head, slotted, self-tapping, No. 8 - 32 NC x 3/8", plated, if used

1шт.

12

G33475

ROD

ASSEMBLY - piston, 1-1/2" (38 mm) diameter, Includes: Ref. 13

1шт.

13

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- piston rod

2шт.

14

G100700

PISTON

- cylinder

1шт.

15

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

- piston

1шт.

Part of seal kit P/N G109472

1шт.

16

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

BACKUP RING - piston seal

1шт.

Part of seal kit P/N G109472

1шт.

17

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

Piston

2шт.

Part of seal kit P/N G109472

1шт.

18

D44554

VALVE SPRING

SPRING - relief

1шт.

19

G100049

PIN

- sliding, spring guide

1шт.

20

D44571

BOLT

BOLT - hex head, 1" - 14 NF x 3", grade 8

1шт.

21

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

23

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Special short 90º, 1/8" NPT x .84" lg

2шт.

G109472

SET

KIT - seal, Includes: Refs. 7, 8, 9, 9A, 10, 11, 15, 16 and 17

1шт.
