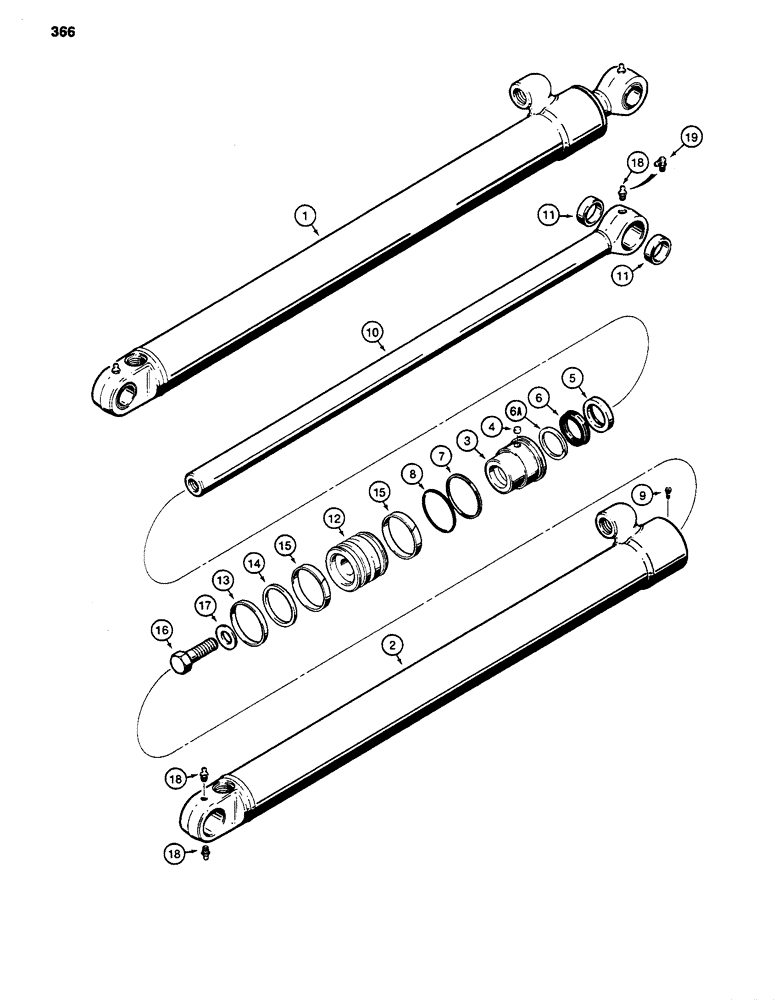

Запчасти Case 480D (366) - G101206 AND G101207 LOADER LIFT CYLINDERS (35) - HYDRAULIC SYSTEMS

1

G101207

CYLINDER,Double Acting, 38.1mm Rod, 797.4mm Stroke

- lift, left-hand, 2-1/2" (64 mm) ID x 31-7/16" (799 mm) stroke, Includes: Ref. 2 - 19

1-2шт.

1

G101206

CYLINDER

- lift, right-hand, 2-1/2" (64 mm) ID x 31-7/16" (799 mm) stroke, no longer used, order G101207 cylinder for both left-hand and right-hand, Includes: Ref. 2 - 19

1шт.

2

D49093

CYLINDER

TUBE - left-hand cylinder

1шт.

2

D49092

CYLINDER

TUBE - right-hand cylinder

1шт.

G104008

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of seal kit P/N G109456

1шт.

6

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

U-CUP SEAL - with O-ring, piston rod, wide

1шт.

Part of seal kit P/N G109456

1шт.

6

G100776

SEAL

U-CUP SEAL - piston rod, service option - severe heat or cold

1шт.

6a

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N G109456

1шт.

7

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of seal kit P/N G109456

1шт.

8

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G109456

1шт.

9

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex head, slotted, self-tapping, No. 8 - 32 NC x 3/8", plated, if used

1шт.

10

G35001

ROD

ASSEMBLY - piston, 1-1/2" (38 mm) diameter, Includes: Ref. 11

1шт.

11

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- piston rod

2шт.

12

G100706

PISTON

- cylinder

1шт.

13

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

- piston

1шт.

Part of seal kit P/N G109456

1шт.

14

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

BACKUP RING - piston seal

1шт.

Part of seal kit P/N G109456

1шт.

15

G100714

RING

- wear, piston

2шт.

Part of seal kit P/N G109456

1шт.

16

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex head, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

17

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, 3 used on left-hand cylinder, 2 used on right-hand cylinder

2-3шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Special short, Used on RH cylinder, Rod end 90º, 1/8" NPT x .84" lg

1шт.

G109456

GASKET KIT

KIT - seal, Includes: Refs. 5, 6, 6A, 7, 8, 13, 14 and 15

1шт.
