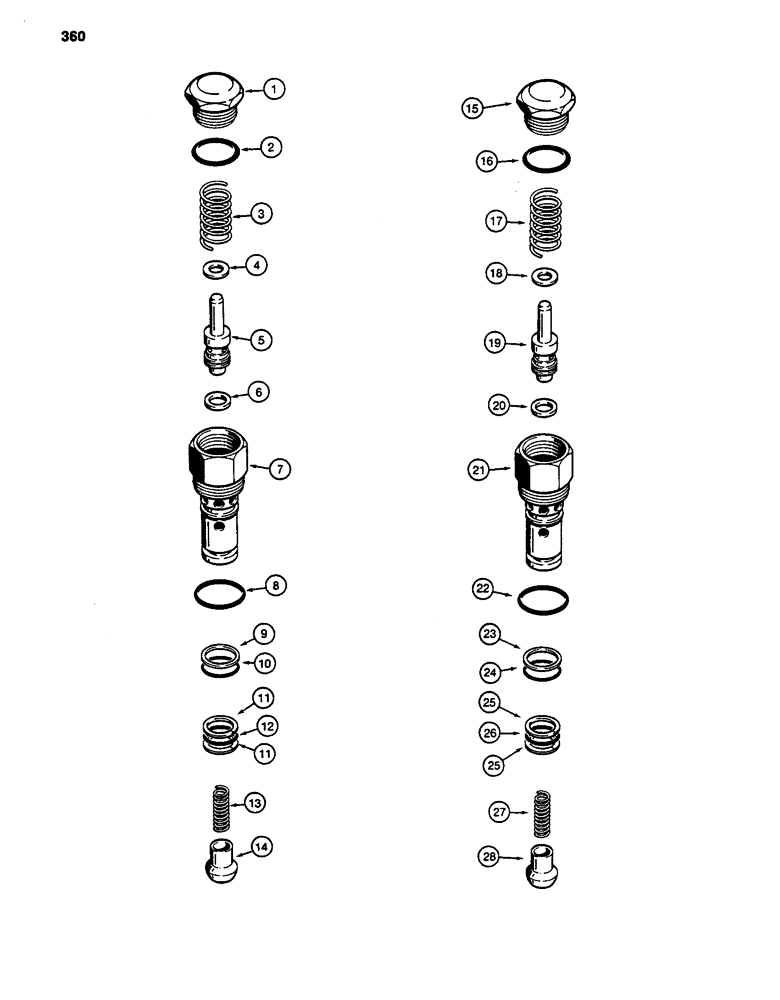

Запчасти Case 480D (360) - PTO AND THREE-POINT HITCH RELIEF VALVE ASSEMBLIES, LIFT SECTIONS, H593228 CIRCUIT RELIEF VALVE (35) - HYDRAULIC SYSTEMS

H593228

VALVE

CIRCUIT RELIEF VALVE - lift circuit, upper port, Includes: Ref. 1 - 14

1шт.

The pressure setting of the repair valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.

1

D39716

PLUG

CAP - circuit relief valve

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Plug, Cap

1шт.

3

D51540

VALVE SPRING

SPRING - outer

1шт.

4

A55893

SHIM,.0418" Thk

(1.016 mm) .0418" Thk

1шт.

4

A55894

SHIM,.0209" Thk

(0.508 mm) .0209" Thk

1шт.

4

D39712

SHIM

.010" (0.254 mm) thick

1шт.

D66490

VALVE POPPET

PLUNGER ASSEMBLY - circuit relief valve, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

PLUNGER - body

1шт.

6

D39714

RING

SEAL - plunger

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - circuit relief valve

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Plug, Outer

1шт.

9

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

BACKUP RING - center O-ring

1шт.

10

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- center

1шт.

11

H411371

BACK-UP RING

BACKUP RING - inner O-ring

2шт.

12

16905

O-RING,0.551" ID x 0.07" Width

O-RING - inner

1шт.

13

H268730

SPRING

- load check valve poppet

1шт.

14

D28576

VALVE POPPET

POPPET - load check valve

1шт.

D122552

VALVE, PRESSURE RELI

CIRCUIT RELIEF VALVE - lift circuit, lower port, Includes: Ref. 15 - 28

1шт.

The pressure setting of the repair valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.

15

D39716

PLUG

CAP - circuit relief valve, D122552

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Plug, Cap, D122552 circuit relief valve

1шт.

17

D39709

SPRING

- outer, D122552 circuit relief valve

1шт.

18

A55893

SHIM,.0418" Thk

(1.016 mm), D122552 circuit relief valve .0418" Thk

1шт.

18

A55894

SHIM,.0209" Thk

(0.508 mm), D122552 circuit relief valve .0209" Thk

1шт.

18

D39712

SHIM

.010" (0.254 mm) thick, D122552 circuit relief valve

1шт.

D66490

VALVE POPPET

PLUNGER ASSEMBLY - circuit relief valve, D122552, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

PLUNGER - circuit relief valve, D122552

1шт.

20

D39714

RING

SEAL - plunger, D122552 circuit relief valve

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - circuit relief valve, D122552

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Plug, Outer, D122552 circuit relief valve

1шт.

23

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

BACKUP RING - center O-ring, D122552 circuit relief valve

1шт.

24

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- center, D122552 circuit relief valve

1шт.

25

H411371

BACK-UP RING

BACKUP RING - inner O-ring, D122552 circuit relief valve

2шт.

26

16905

O-RING,0.551" ID x 0.07" Width

O-RING - inner, D122552 circuit relief valve

1шт.

27

H268730

SPRING

- load check valve poppet, D122552 circuit relief valve

1шт.

28

D28576

VALVE POPPET

POPPET - load check valve, D122552 circuit relief valve

1шт.
