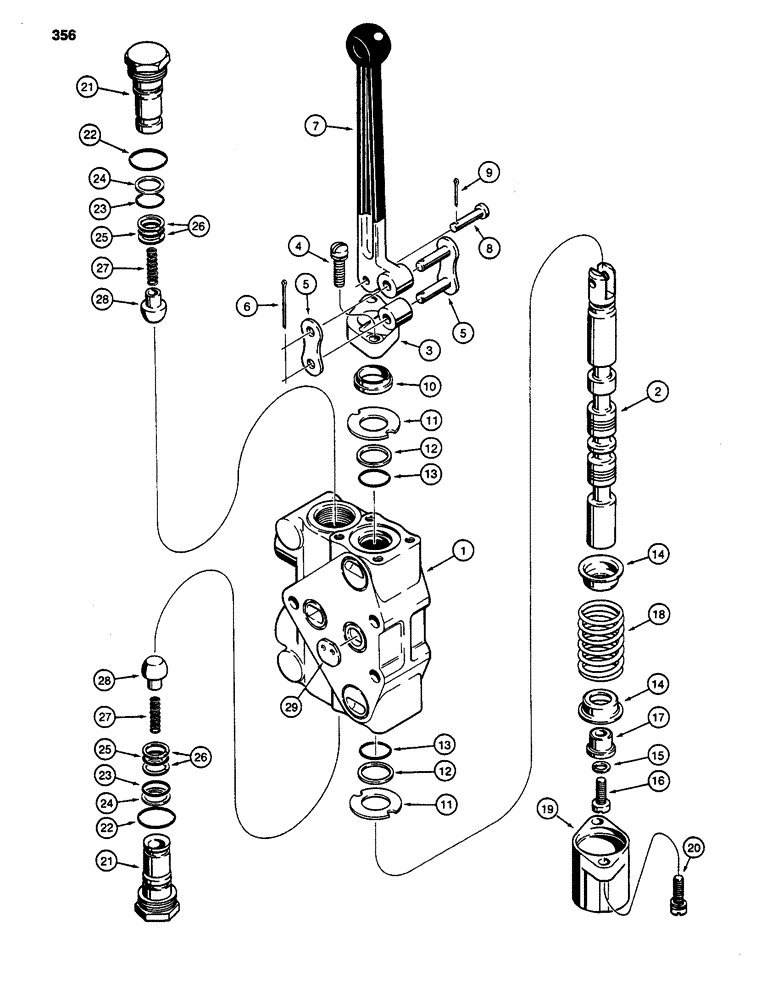

Запчасти Case 480D (356) - THREE-POINT HITCH CONTROL VALVE, PITCH, TILT, AND IMPLEMENT SECTIONS (35) - HYDRAULIC SYSTEMS

N8691

KNIFE SECTION

SECTION - hitch pitch, tilt, and implement, used in four and five spool control valves, Includes: Ref. 1 - 29

2-4шт.

N7115

VALVE BLOCK

SECTION - hitch auxiliary, used in four and five spool control valves D99475 and D99490 only, Includes: Ref. 1 - 29

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve section, not the same between N8691 and N7115

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve section

1шт.

3

N7114

BRACKET

RETAINER AND BRACKET - section

1шт.

4

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

AND LOCK WASHER - 1/4" - 20 NC x 7/8", plated

2шт.

5

H620344

LINK

ASSEMBLY - bracket to control rod, N7115 section only

1шт.

6

132-13

PIN

COTTER PIN - 1/16" x 1-1/2", N7115 section only

1шт.

7

N7113

HANDLE

LEVER - section control, N7115 section only

1шт.

8

D88727

PIN

- control rod to spool eye, N7115 section only

1шт.

9

132-379

COTTER PIN,5/64" x 1/2"

PIN, SPLIT (COTTER), , N7115 section only 5/64" x 1/2"

1шт.

10

N7029

SCRAPER

WIPER - spool

1шт.

11

D88730

WASHER,0.77" ID x 1.43" OD

RETAINER - seal

2шт.

12

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

BACKUP RING - O-ring

2шт.

13

D88728

O-RING,19.05mm ID x 25.4mm OD x 3.18mm Thk

- spool seal

2шт.

14

H267591

SPRING SEAT

SEAT - centering spring

2шт.

15

192-404

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

16

169-160

SCREW,Sl Fil Hd, 5/16" - 18 x 3/4"

MACHINE SCREW - Fillister head, 5/16" - 18 NC x 3/4", plated

1шт.

17

H267609

REAR FENDER

COLLAR - spool

1шт.

18

D87306

SPRING

CENTERING SPRING - spool

1шт.

19

H267583

FITTING

CAP - valve spool

1шт.

20

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

AND LOCK WASHER - 1/4" - 20 NC x 7/8", plated

2шт.

D87307

VALVE

LOAD CHECK VALVE - valve section, Includes: Ref. 21 - 28

2шт.

21

NSS

NOT SOLD SEPARAT

PLUG - load check valve

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Plug, Outer

1шт.

23

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- center

1шт.

24

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

BACKUP RING - center O-ring

1шт.

25

16905

O-RING,0.551" ID x 0.07" Width

O-RING - inner

1шт.

26

D88725

BACK-UP RING

BACKUP RING - inner O-ring

2шт.

27

H268730

SPRING

- poppet

1шт.

28

D28576

VALVE POPPET

POPPET - load check valve

1шт.

29

N7116

PLATE

- flow restriction, used with N7115 section only

1шт.
