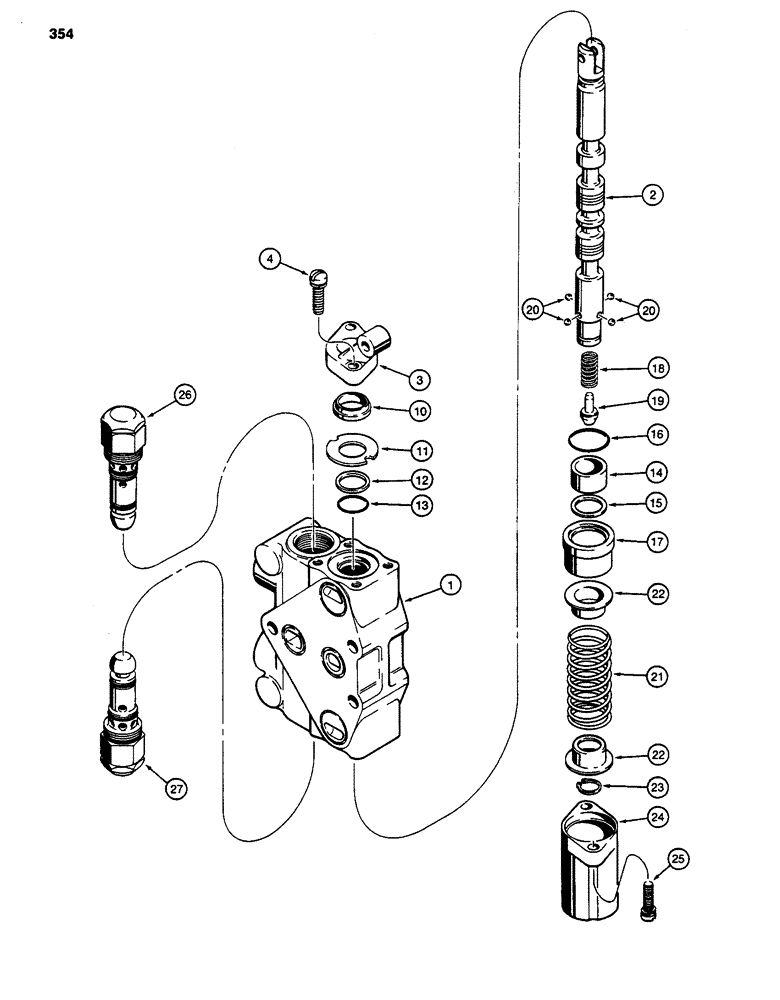

Запчасти Case 480D (354) - PTO AND THREE-POINT HITCH CONTROL VALVES, LIFT SECTION WITH TWO CIRCUIT RELIEF VALVE (35) - HYDRAULIC SYSTEMS

N8692

KNIFE SECTION

SECTION - hitch lift, contains two circuit relief valves, Includes: Ref. 1 - 27

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve section

1шт.

3

N7114

BRACKET

RETAINER AND BRACKET - section

1шт.

4

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

AND LOCK WASHER - 1/4" - 20 NC x 7/8", plated

2шт.

5

RESERVED

1шт.

6

RESERVED

1шт.

7

RESERVED

1шт.

8

RESERVED

1шт.

9

RESERVED

1шт.

10

N7029

SCRAPER

WIPER - spool

1шт.

11

D88730

WASHER,0.77" ID x 1.43" OD

RETAINER - seal

1шт.

12

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

BACKUP RING - spool seal O-ring

1шт.

13

D88728

O-RING,19.05mm ID x 25.4mm OD x 3.18mm Thk

- spool seal

1шт.

14

N7038

SLEEVE

- spool

1шт.

15

N7036

SEALING RING

QUAD RING - spool seal

1шт.

16

D39717

O-RING,1.051" ID x 1.191" OD

- detent sleeve to section housing

1шт.

17

N7034

SLEEVE VALVE

SLEEVE - detent

1шт.

18

N7037

SPRING

- detent

1шт.

19

N7035

VALVE POPPET

PLUNGER - ball retaining

1шт.

20

211-6

BALL,7/32" Dia

grade 200, chrome alloy steel 7/32" Dia

4шт.

21

N7032

SPRING

CENTERING SPRING - spool

1шт.

22

N7033

SEAT

- centering spring

2шт.

23

103-1162

SNAP RING,#62, Ext

Ring, Snap, #62, Ext, seat

1шт.

24

N7031

COVER

CAP - valve spool

1шт.

25

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

AND LOCK WASHER - 1/4" - 20 NC x 7/8", plated

2шт.

26

H593228

VALVE

CIRCUIT RELIEF VALVE - upper port, parts list Figure 360

1шт.

27

D122552

VALVE, PRESSURE RELI

CIRCUIT RELIEF VALVE - lower port, parts list Figure 360

1шт.
