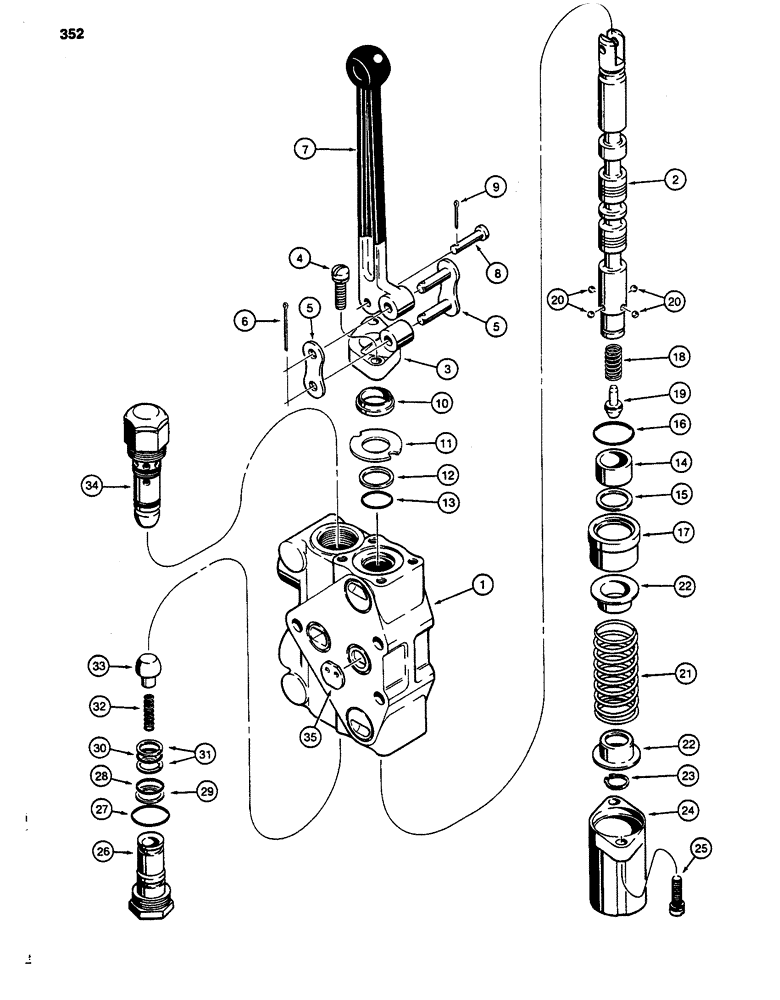

Запчасти Case 480D (352) - THREE-POINT HITCH CONTROL VALVE, LIFT SECTION WITH ONE CIRCUIT RELIEF VALVE (35) - HYDRAULIC SYSTEMS

N7119

VALVE BLOCK

SECTION - hitch lift, used in one spool control valve, 480D only, Includes: Ref. 1 - 35

1шт.

N7118

VALVE BLOCK

SECTION - hitch lift, used in four and five spool control valves, Includes: Ref. 1 - 35

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve section

1шт.

3

N7114

BRACKET

RETAINER AND BRACKET - section

1шт.

4

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

AND LOCK WASHER - 1/4" - 20 NC x 7/8", plated

2шт.

5

H620344

LINK

ASSEMBLY - bracket to control rod

1шт.

6

132-13

PIN

COTTER PIN - 1/16" x 1-1/2"

1шт.

7

N7113

HANDLE

LEVER - section control

1шт.

8

D88727

PIN

- control rod to spool eye

1шт.

9

132-379

COTTER PIN,5/64" x 1/2"

PIN, SPLIT (COTTER), 5/64" x 1/2"

1шт.

10

N7029

SCRAPER

WIPER - spool

1шт.

11

D88730

WASHER,0.77" ID x 1.43" OD

RETAINER - seal

1шт.

12

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

BACKUP RING - O-ring

1шт.

13

D88728

O-RING,19.05mm ID x 25.4mm OD x 3.18mm Thk

- spool seal

1шт.

14

N7038

SLEEVE

- spool

1шт.

15

N7036

SEALING RING

QUAD RING - spool seal

1шт.

16

D39717

O-RING,1.051" ID x 1.191" OD

- detent sleeve to section housing

1шт.

17

N7034

SLEEVE VALVE

SLEEVE - detent

1шт.

18

N7037

SPRING

- detent

1шт.

19

N7035

VALVE POPPET

PLUNGER - ball retaining

1шт.

20

211-6

BALL,7/32" Dia

grade 200, chrome alloy steel 7/32" Dia

4шт.

21

N7032

SPRING

CENTERING SPRING - spool

1шт.

22

N7033

SEAT

- centering spring

2шт.

23

103-1162

SNAP RING,#62, Ext

Ring, Snap, , seat, CLAMP - D23046 tube, when D29295 check valve is used, boom cylinder hydraulics #62, Ext

1шт.

24

N7031

COVER

CAP - valve spool

1шт.

25

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

AND LOCK WASHER - 1/4" - 20 NC x 7/8", plated

2шт.

D87307

VALVE

LOAD CHECK VALVE - valve section, Includes: Ref. 26 - 33

1шт.

26

NSS

NOT SOLD SEPARAT

PLUG - load check valve

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Plug, Outer

1шт.

28

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- center

1шт.

29

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

BACKUP RING - center O-ring

1шт.

30

16905

O-RING,0.551" ID x 0.07" Width

O-RING - inner

1шт.

31

D88725

BACK-UP RING

BACKUP RING - inner O-ring

2шт.

32

H268730

SPRING

- poppet

1шт.

33

D28576

VALVE POPPET

POPPET - load check valve

1шт.

34

H593228

VALVE

CIRCUIT RELIEF VALVE - parts list Figure 360

1шт.

35

N7116

PLATE

- flow restriction, used with N7119 section only

1шт.
