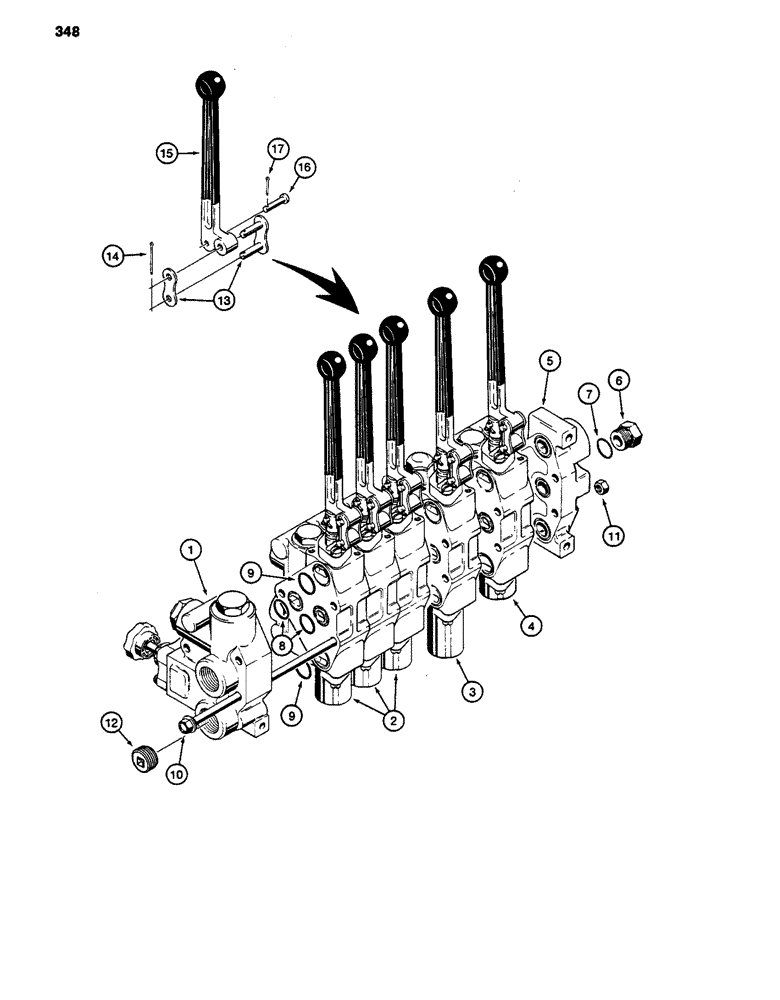

Запчасти Case 480D (348) - PTO AND THREE-POINT HITCH CONTROL VALVE (35) - HYDRAULIC SYSTEMS

D122151

VALVE

CONTROL VALVE - PTO and three-point hitch, five-spool, Includes: Ref. 1 - 17

1шт.

1

D122551

VALVE

END SECTION - inlet-outlet, parts list Figure 350

1шт.

2

N8691

KNIFE SECTION

SECTION - implement, pitch, and tilt, section does not include control lever and mounting, see Refs. 13-17 below, parts list Figure 356

3шт.

3

N8692

KNIFE SECTION

SECTION - lift, section does not include control lever and mounting, see Refs. 13-17 below, parts list Figure 354

1шт.

4

N7899

PTO

SECTION - PTO, section includes control lever and mounting, parts list Figure 358

1шт.

D122553

PLATE

END SECTION - cover plate, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - cover

1шт.

6

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Cover plate, Includes: Ref. 7 Hex Hd, 1 1/16"-12 ORB

1шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

1шт.

8

A15888

O-RING,0.801" ID x 0.941" OD x 0.07"

- between sections, 13/16" (21 mm) ID

12шт.

9

A62239

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

- between sections, 15/16" (24 mm) ID

12шт.

10

N7117

BOLT

- tie, 3/8" - 24 NF x 11-1/4"

3шт.

11

129-123

NUT,3/8"-24, G5

3шт.

12

221-34

DRAIN PLUG,Hex Soc, 1/2"-14, NPTF

PLUG - square socket head, 1/2" NPT, excess flow, internal, used on PTO models only

1шт.

13

H620344

LINK

ASSEMBLY - lever

4шт.

14

132-13

PIN

COTTER PIN - 1/16" x 1-1/2"

4шт.

15

N7113

HANDLE

LEVER - section control

4шт.

16

D88727

PIN

- control lever to spool eye

4шт.

17

132-379

COTTER PIN,5/64" x 1/2"

PIN, SPLIT (COTTER), 5/64" x 1/2"

4шт.
