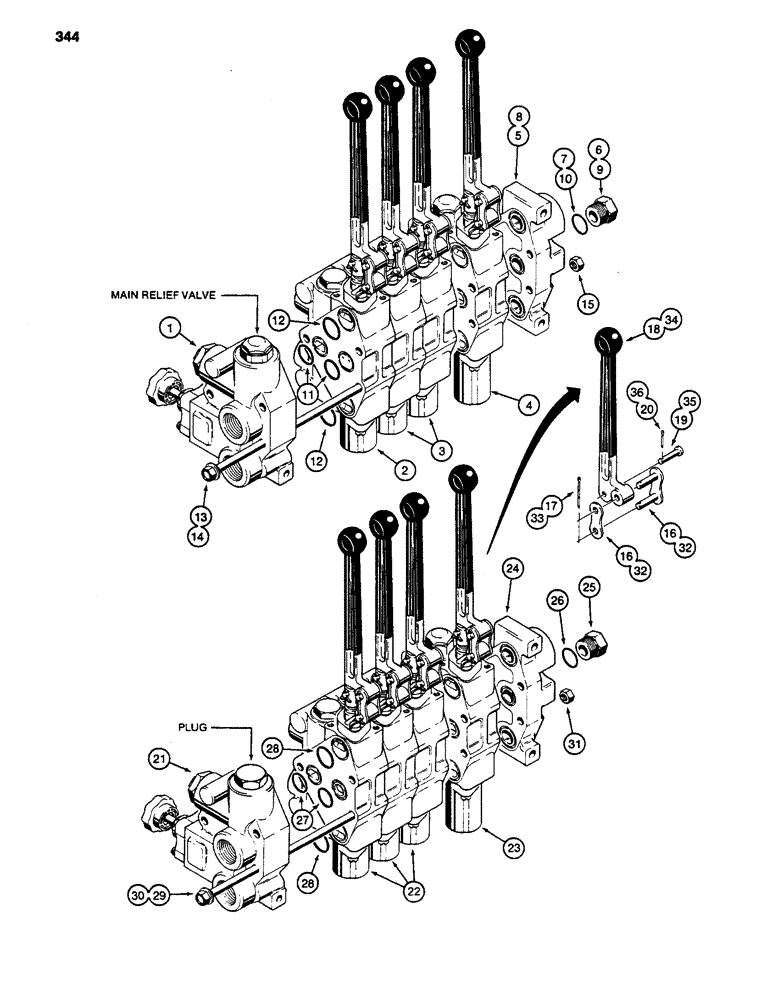

Запчасти Case 480D (344) - THREE-POINT HITCH CONTROL VALVES, FOUR AND FIVE SPOOL VALVE ASSY. D99475 & D99490 CONTROL VALVES (35) - HYDRAULIC SYSTEMS

D99475

VALVE

CONTROL VALVE - hitch, four-spool, 480D only, Ref. 1 has a main relief valve, no longer used, order D122164 on Figure 344, Includes: Ref. 1 - 20

1шт.

D99490

VALVE

CONTROL VALVE - hitch, five-spool, 480LL only, Ref. 1 has a main relief valve, no longer used, order D122165 on Figure 344, Includes: Ref. 1 - 20

1шт.

1

N7108

VALVE

END SECTION - inlet-outlet, parts list Figure 350

1шт.

2

N7115

VALVE BLOCK

SECTION - auxiliary, parts list Figure 356

1шт.

N7115 auxiliary section has a flow restriction seal (see parts list Figure 356) and is always located next to the inlet-outlet section.

1шт.

3

N8691

KNIFE SECTION

SECTION - pitch, tilt, and implement, section does not include control lever and mounting, see Refs. 16-20 below, parts list Figure 356

2-3шт.

4

N7118

VALVE BLOCK

SECTION - lift, section includes control lever and mounting, parts list Figure 352, if used

1шт.

4

N8692

KNIFE SECTION

SECTION - lift, section does not include control lever and mounting, see Refs. 16-20 below, parts list Figure 354, if used

1шт.

N7028

COVER

END SECTION - cover plate, uses 7/8" - 14 NC plug, if used, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - cover

1шт.

6

86512512

PLUG,7/8" - 14 ORB

Cover plate, Incl. Ref. 7 Hex Hd, 7/8"-14 ORB

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Plug, Used with Ref. 6

1шт.

D122553

PLATE

END SECTION - cover plate, uses 1-1/16" - 12 NC plug, if used, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE - cover

1шт.

9

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Cover plate, Includes: Ref. 10 Hex Hd, 1 1/16"-12 ORB

1шт.

10

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug, used with Ref. 9

1шт.

11

A15888

O-RING,0.801" ID x 0.941" OD x 0.07"

- between sections, 13/16" (21 mm) ID

10-12шт.

12

A62239

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

- between sections, 15/16" (24 mm) ID

10-12шт.

13

D86578

BOLT

- tie, 3/8" - 24 NF x 9-1/2", four-spool control valve only

3шт.

14

N7117

BOLT

- tie, 3/8" - 24 NF x 11-1/4", five-spool control valve only

3шт.

15

129-123

NUT,3/8"-24, G5

3шт.

16

H620344

LINK

ASSEMBLY - lever

4-5шт.

17

132-13

PIN

COTTER PIN - 1/16" x 1-1/2"

4-5шт.

18

N7113

HANDLE

LEVER - section control

4-5шт.

19

D88727

PIN

- control lever to spool eye

4-5шт.

20

132-379

COTTER PIN,5/64" x 1/2"

PIN, SPLIT (COTTER), 5/64" x 1/2"

4-5шт.

D122164

VALVE

CONTROL VALVE - hitch, four-spool, 480D only, Ref. 21 has a plugged main relief port, if used, Includes: Ref. 21 - 36

1шт.

D122165

VALVE

CONTROL VALVE - hitch, five-spool, 480LL only, Ref. 21 has a plugged main relief port, if used, Includes: Ref. 21 - 36

1шт.

21

D122551

VALVE

END SECTION - inlet-outlet, parts list Figure 350

1шт.

22

N8691

KNIFE SECTION

SECTION - implement, pitch, and tilt, section does not include control lever and mounting, see Refs. 32-36 below, parts list Figure 356

3-4шт.

23

N8692

KNIFE SECTION

SECTION - lift, section does not include control lever and mounting, see Refs. 32-36 below, parts list Figure 354

1шт.

D122553

PLATE

END SECTION - cover plate, Includes: Ref. 24 - 26

1шт.

24

NSS

NOT SOLD SEPARAT

PLATE - cover

1шт.

25

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Cover plate, Includes: Ref. 26 Hex Hd, 1 1/16"-12 ORB

1шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

1шт.

27

A15888

O-RING,0.801" ID x 0.941" OD x 0.07"

- between sections, 13/16" (21 mm) ID

10-12шт.

28

A62239

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

- between sections, 15/16" (24 mm) ID

10-12шт.

29

D86578

BOLT

- tie, 3/8" - 24 NF x 9-1/2", four-spool control valve only

3шт.

30

N7117

BOLT

- tie, 3/8" - 24 NF x 11-1/4", five-spool control valve only

3шт.

31

129-123

NUT,3/8"-24, G5

3шт.

32

H620344

LINK

ASSEMBLY - lever

4-5шт.

33

132-13

PIN

COTTER PIN - 1/16" x 1-1/2"

4-5шт.

34

N7113

HANDLE

LEVER - section control

4-5шт.

35

D88727

PIN

- control lever to spool eye

4-5шт.

36

132-379

COTTER PIN,5/64" x 1/2"

PIN, SPLIT (COTTER), 5/64" x 1/2"

4-5шт.
