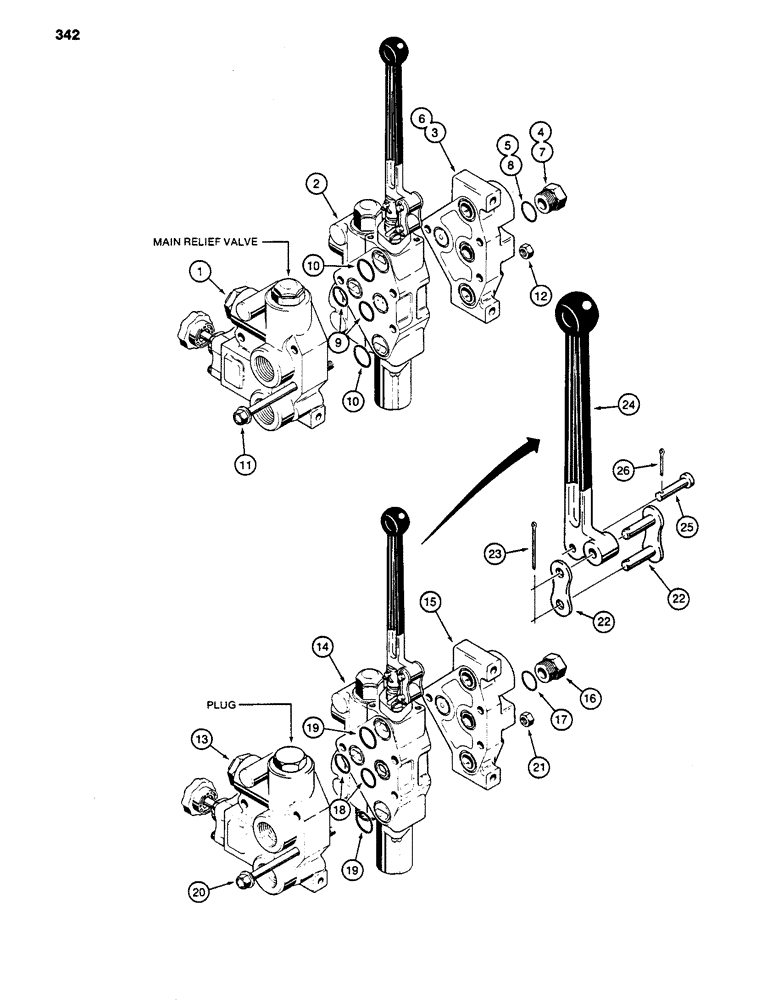

Запчасти Case 480D (342) - THREE-POINT HITCH CONTROL VALVES, ONE-SPOOL VALVE ASSEMBLY 480D MODELS ONLY (35) - HYDRAULIC SYSTEMS

D99474

VALVE

CONTROL VALVE - hitch, one-spool, Ref. 1 has a main relief, if used, Includes: Ref. 1 - 12

1шт.

1

N7108

VALVE

END SECTION - inlet-outlet, parts list Figure 350

1шт.

2

N7119

VALVE BLOCK

SECTION - lift, section includes control lever and mounting, parts list Figure 352

1шт.

N7028

COVER

END SECTION - cover plate, uses 7/8" - 14 NC plug, if used, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE - cover

1шт.

4

86512512

PLUG,7/8" - 14 ORB

Cover plate, If used, Incl. Ref. 5 Hex Hd, 7/8"-14 ORB

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Plug, Used with Ref. 4

1шт.

D122553

PLATE

END SECTION - cover plate, uses 1-1/16" - 12 NC plug, if used, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

PLATE - cover

1шт.

7

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Cover plate, if used, Includes: Ref. 8 Hex Hd, 1 1/16"-12 ORB

1шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug, used with Ref. 7

1шт.

9

A15888

O-RING,0.801" ID x 0.941" OD x 0.07"

- between sections, 13/16" (21 mm) ID

4шт.

10

A62239

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

- between sections, 15/16" (24 mm) ID

4шт.

11

N7039

BOLT

- tie, 3/8" - 24 NF x 4-1/4"

3шт.

12

129-123

NUT,3/8"-24, G5

3шт.

D122163

VALVE

CONTROL VALVE - hitch, one-spool, Ref. 13 has a plugged main relief port, if used, Includes: Ref. 13 - 26

1шт.

13

D122551

VALVE

END SECTION - inlt-outlet, parts list Figure 350, D122163 control valve

1шт.

14

N8692

KNIFE SECTION

SECTION - lift, section does not include control lever and mounting, D122163 valve, see Refs. 22-26 below, parts list Figure 354

1шт.

D122553

PLATE

END SECTION - cover plate, D122163 control valve, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE - cover, D122163 control valve

1шт.

16

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Cover plate, D122163 control valve, Includes: Ref. 17 Hex Hd, 1 1/16"-12 ORB

1шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug, used with Ref. 16, D122163 control valve

1шт.

18

A15888

O-RING,0.801" ID x 0.941" OD x 0.07"

- between sections, 13/16" (21 mm) ID, D122163 control valve

4шт.

19

A62239

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

- between sections, 15/16" (24 mm) ID, D122163 control valve

4шт.

20

N7039

BOLT

- tie, 3/8" - 24 NF x 4-1/4", D122163 control valve

3шт.

21

129-123

NUT,3/8"-24, G5

D122163 control valve 3/8"-24, G5

3шт.

22

H620344

LINK

ASSEMBLY - lever, D122163 control valve

1шт.

23

132-13

PIN

COTTER PIN - 1/16" x 1-1/2", D122163 control valve

1шт.

24

N7113

HANDLE

LEVER - lift section control, D122163 valve

1шт.

25

D88727

PIN

- control lever to spool eye, D122163 valve

1шт.

26

132-379

COTTER PIN,5/64" x 1/2"

PIN, SPLIT (COTTER), , D122163 control valve 5/64" x 1/2"

1шт.
