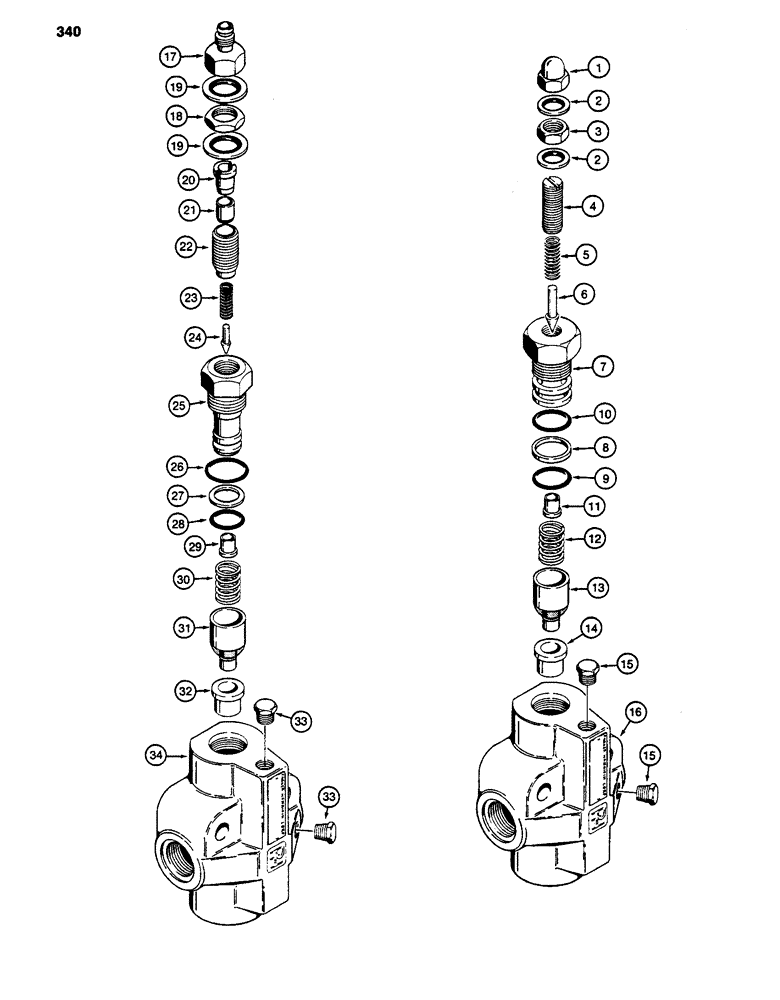

Запчасти Case 480D (340) - D71668 AND D75308 RELIEF VALVES, D71668 RELIEF VALVE (35) - HYDRAULIC SYSTEMS

D71668

VALVE

- relief, used on units without loader only, see Figure 242 for mounting parts, Includes: Ref. 1 - 16

1шт.

1

129-514

CROWN NUT,Low, 5/16" - 24

DOME NUT - 5/16" - 24 NF, relief valve

1шт.

2

D26270

WASHER, SEALING

WASHER - special

2шт.

3

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16" - 24 NF

1шт.

4

176-299

SET SCREW,Sl Hdls, 5/16" - 24 x 7/8", Flat Pt

SCREW - 5/16" - 24 NF x 7/8", adjusting

1шт.

5

D26268

SPRING

- plunger

1шт.

6

D26267

PLUNGER

- relief valve

1шт.

7

D26262

CAP

- relief valve

1шт.

8

L30443

BACK-UP RING,0.547" ID x 0.049" Width

BACKUP RING - inner O-ring

1шт.

9

L30444

O-RING,0.521" ID x 0.661" OD

- relief valve cap, inner

1шт.

11

D26266

SEAT

- plunger

1шт.

12

D52319

SPRING

- relief valve

1шт.

13

D37062

VALVE

POPPET ASSEMBLY - relief valve

1шт.

14

D37063

SEAT

- poppet

1шт.

15

221-661

PLUG,Hex Hd, 1/8"-27

- hex head, 1/8" NPT

2шт.

16

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

D75308

VALVE

- relief, used on loader models with PTO, see Figure 278 for mounting parts, Includes: Ref. 17 - 34

1шт.

17

D27260

FITTING

CONNECTOR - hydraulic, D75308 relief valve

1шт.

18

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex, jam, 5/16" - 18 NF, D75308 relief valve

1шт.

19

D27259

SEAL

- special, D75308 relief valve

2шт.

20

N7066

RETAINER

- piston, D75308 relief valve

1шт.

21

D27261

PISTON

- D75308 relief valve

1шт.

22

D27258

ADJUSTMENT SCREW,5/8" - 18 x 1 1/16"

- adjusting, D75308 relief valve

1шт.

23

D26268

SPRING

- plunger, D75308 relief valve

1шт.

24

D26267

PLUNGER

- D75308 relief valve

1шт.

25

D26262

CAP

- D75308 relief valve

1шт.

27

L30443

BACK-UP RING,0.547" ID x 0.049" Width

BACKUP RING - small O-ring, D75308 relief valve

1шт.

28

L30444

O-RING,0.521" ID x 0.661" OD

- small, D75308 relief valve

1шт.

29

D78417

SEAT

- plunger, D75308 relief valve

1шт.

30

D26261

VALVE SPRING

SPRING - D75308 relief valve

1шт.

31

L30687

SPOOL

POPPET - D75308 relief valve

1шт.

32

D26259

SEAT

- poppet, D75308 relief valve

1шт.

33

221-661

PLUG,Hex Hd, 1/8"-27

- hex head, 1/8" NPT, D75308 relief valve

2шт.

34

NSS

NOT SOLD SEPARAT

BODY - D75308 relief valve

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, relief valve cap, outer

1шт.

26

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, D75308 relief valve

1шт.
