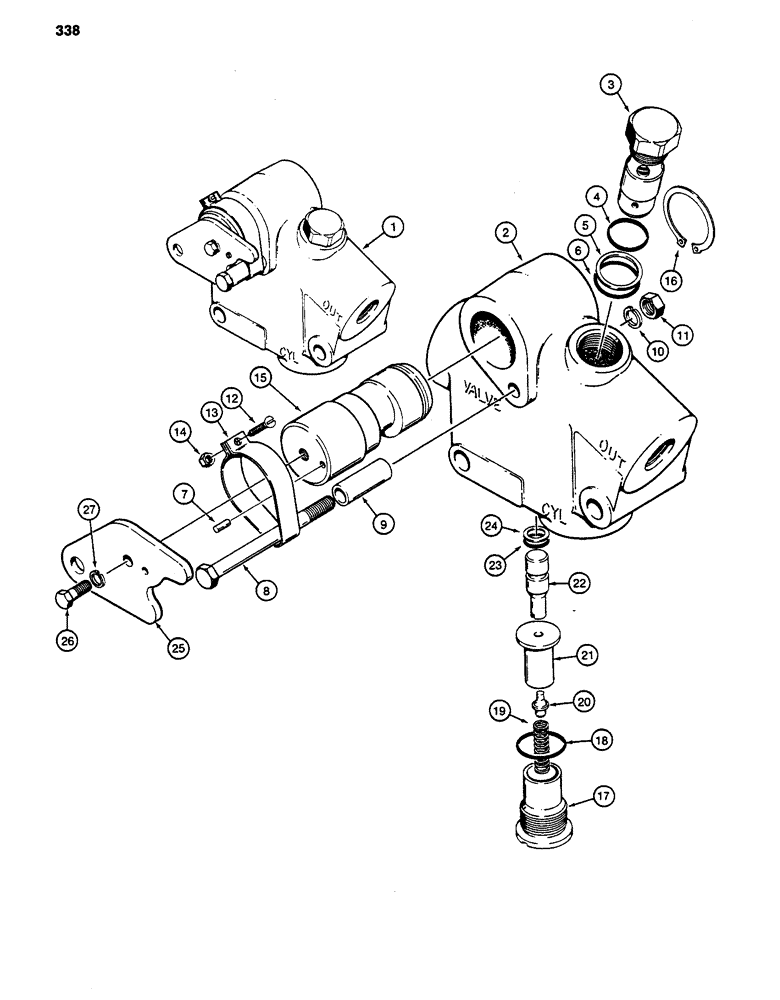

Запчасти Case 480D (338) - BOOM LOCK VALVE, 480D MODELS ONLY (35) - HYDRAULIC SYSTEMS

1

D88644

VALVE

- boom lock, Cessna No. 39013-CAG, Includes: Ref. 2 - 24

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

D56470

VALVE

RELIEF VALVE ASSEMBLY - boom lock valve, Includes: Ref. 4

1шт.

4

F9857

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

- relief valve

1шт.

5

D56469

BACK-UP RING

BACKUP RING - inner O-ring

1шт.

6

A7464

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

- inner

1шт.

7

D56881

PIN

DOWEL PIN - handle

1шт.

8

13-558

BOLT,Hex, 5/16" - 18 x 3-5/8", Gr 5

- hex head, 5/16" - 18 NC x 3-5/8"

1шт.

9

D56460

BUSHING

- spacer

1шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

11

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex, jam, 5/16" - 18 NC

1шт.

12

182-48

SCREW,Sl Pan Hd, #6 - 32 x 3/4"

MACHINE SCREW - pan head slotted, No. 6 - 32 NC x 3/4"

1шт.

13

D56467

CLAMP

- shaft retaining

1шт.

14

131-150

LOCK NUT,#6-32, GA

NUT, LOCK, #6-32, GA

1шт.

15

NSS

NOT SOLD SEPARAT

SHAFT - lock control

1шт.

16

F62020

SNAP RING,#125, Ext

Ring, Snap, , shaft #125, Ext

1шт.

17

D56461

PLUG

- plunger retainer

1шт.

18

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

- plug

1шт.

19

D56462

SPRING

- poppet

1шт.

20

D56464

PLUNGER

POPPET - valve

1шт.

21

D56463

PLUNGER

SEAT - poppet

1шт.

22

D56466

PLUNGER

- valve

1шт.

23

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- plunger

1шт.

24

L31330

BACK-UP RING,109mm ID x 128.81mm OD x 12mm Thk

BACKUP RING - seal

1шт.

25

D89888

LEVER

- boom lock valve

1шт.

26

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.
