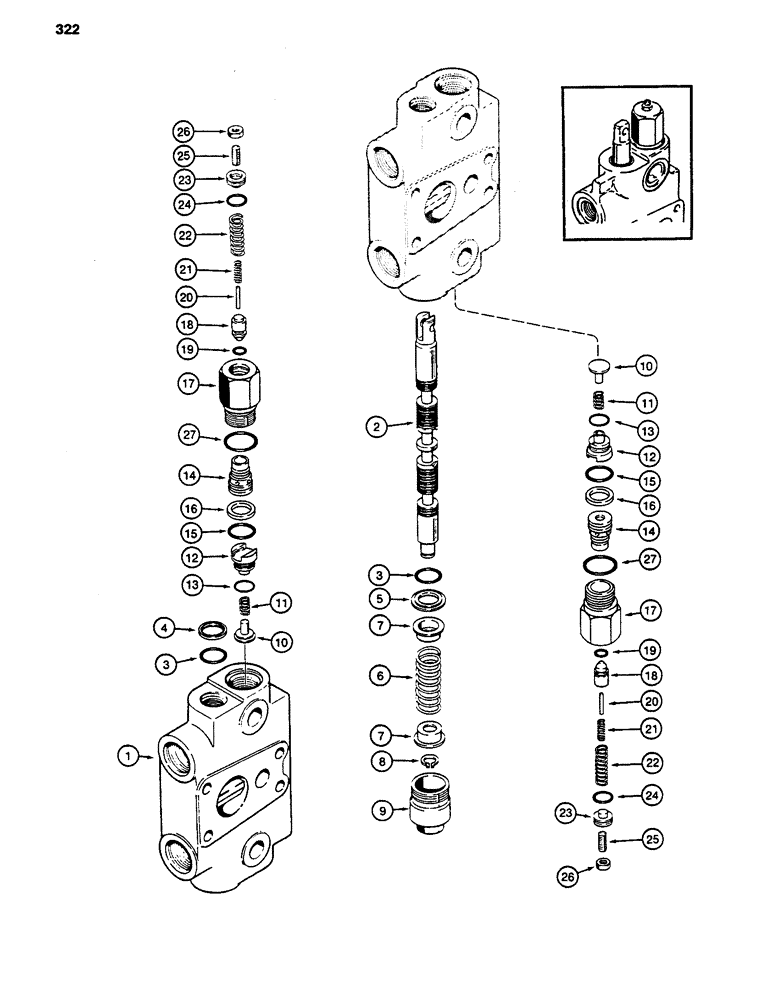

Запчасти Case 480D (322) - BACKHOE CONTROL VALVE, DIPPER AND BUCKET SECTION, 480D MODELS ONLY (35) - HYDRAULIC SYSTEMS

G109513

HYD VALVE SECTION

SECTION ASSEMBLY - dipper and bucket, circuit relief valve with one piece cap, replaces G103401 section assembly on Figure 320, Includes: Ref. 1 - 27

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

3

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- body

2шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

- spool

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

- O-ring

1шт.

6

G34463

SPRING

CENTERING SPRING - spool

1шт.

7

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT - centering spring

2шт.

8

G33077

SNAP RING,#47, Ext

Ring, Snap, , spool end #47, Ext

1шт.

9

P0033080G

SCREW

- centering spring

1шт.

10

G33081

VALVE POPPET

POPPET - load check valve

2шт.

11

G33573

SPRING

- load check valve

2шт.

12

G33084

PLUG

- load check valve

2шт.

13

G33686

O-RING,0.07" Thk x 0.61" ID

- plug

2шт.

G107786

VALVE, PRESSURE RELI

CIRCUIT RELIEF VALVE ASSEMBLY - one piece cap, replaces G34043 valve in production, see Figure 320, order G109449 kit for service, Includes: Ref. 14 - 27

2шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting accotding to the instructions sent with the repair valve and according to the service manual.

1шт.

14

NSS

NOT SOLD SEPARAT

SEAT - circuit relief valve

1шт.

15

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- small, seat

1шт.

16

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

BACKUP RING - small O-ring, seat

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - circuit relief valve

1шт.

18

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - poppet

1шт.

20

NSS

NOT SOLD SEPARAT

PIN - relief stop

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING - circuit relief valve, inner

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING - circuit relief valve, outer

1шт.

23

NSS

NOT SOLD SEPARAT

PISTON - circuit relief valve

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

25

178-890

SET SCREW,Hex Soc, 5/16"-24 x 1"

- hex socket headless, 5/16" - 24 NF x 1", oval point, plated

1шт.

26

86637933

JAM NUT,5/16" - 24, Gr 5

Jam, 5/16"- 24, G5

1шт.

27

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- large, body

1шт.

G109449

KIT

- service for G107786, includes G109447 relief valve assembly (Refs. 14-27) and an instruction sheet

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting accotding to the instructions sent with the repair valve and according to the service manual.

1шт.
