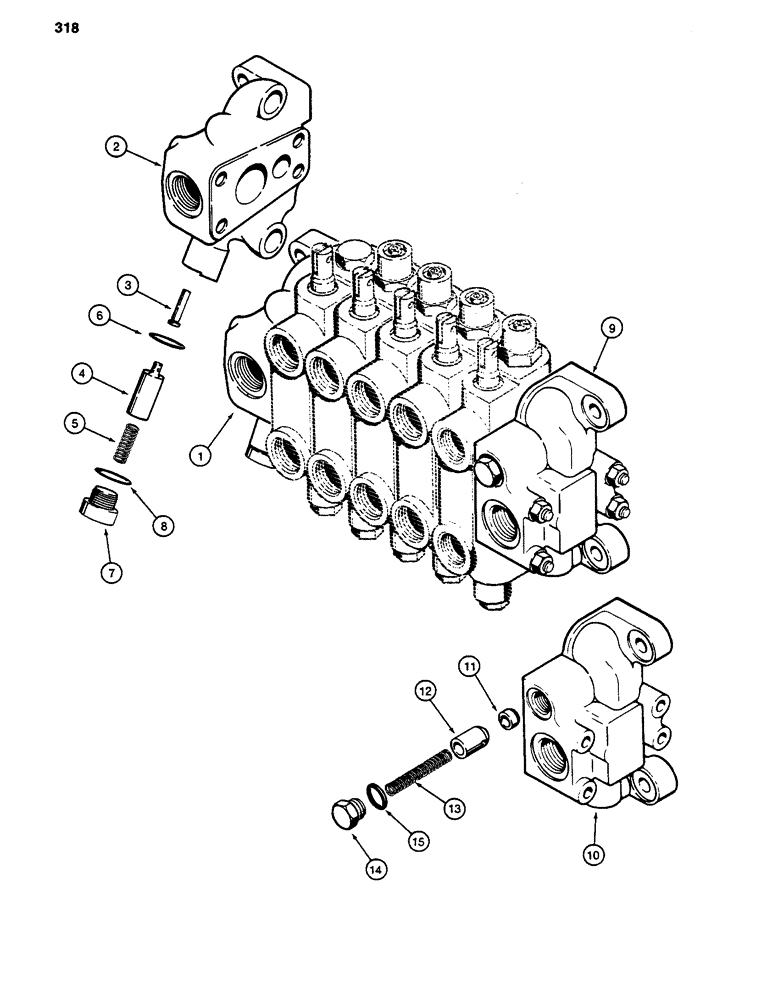

Запчасти Case 480D (318) - BACKHOE CONTROL VALVE, 480D MODELS ONLY, OUTLET SECTION (35) - HYDRAULIC SYSTEMS

1

G33108

MANIFOLD

SECTION - outlet, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

MANIFOLD - section body

1шт.

3

G33110

PISTON

- regeneration sensing

1шт.

4

G34586

SPOOL,22mm OD x 59.87mm L

- regeneration

1шт.

5

G33112

SPRING

- regeneration spool

1шт.

6

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

- internal

1шт.

7

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

regeneration spool, Includes Ref 8 Hex Soc, 1 3/16"-12 ORB

1шт.

8

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- plug

1шт.

9

G33102

MANIFOLD

SECTION - inlet, Includes: Ref. 10 - 15

1шт.

10

NSS

NOT SOLD SEPARAT

MANIFOLD - section body, inlet

1шт.

11

G33104

SEAT

- check valve poppet, inlet section

1шт.

12

G33105

VALVE POPPET

POPPET - check valve, inlet section

1шт.

13

G33106

SPRING

- check valve, inlet section

1шт.

14

A39586

PLUG

- check valve, inlet section

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Plug, inlet section

1шт.
