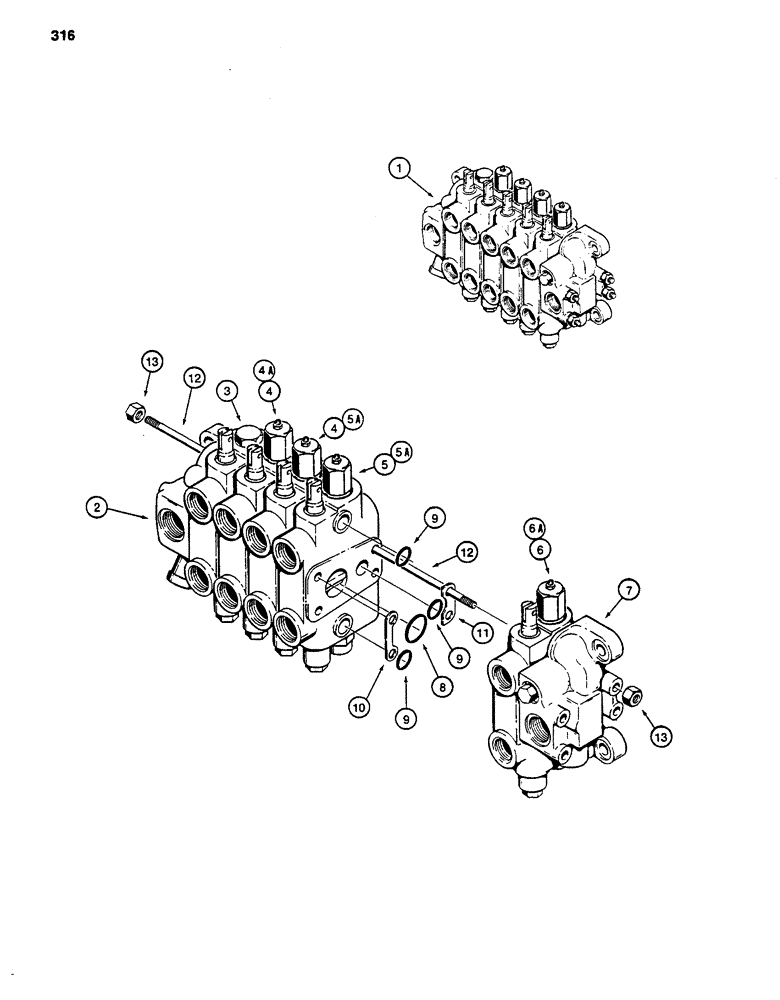

Запчасти Case 480D (316) - BACKHOE CONTROL VALVES, MODELS WITH EXTENDABLE DIPPER, 480D MODELS ONLY (35) - HYDRAULIC SYSTEMS

1

G109538

VALVE

CONTROL VALVE ASSEMBLY - foot swing models, with extendable dipper, replaces G103395 control valve, Includes: Ref. 2 - 13

1шт.

1

G105282

VALVE

CONTROL VALVE ASSEMBLY - hand swing models, with extendable dipper, Includes: Ref. 2 - 13

1шт.

2

G33108

MANIFOLD

OUTLET SECTION - parts list Figure 318

1шт.

3

G103404

SEGMENT

EXTENDABLE DIPPER SECTION - parts list Figure 336

1шт.

4

REF

INSTRUCTION

DIPPER AND BUCKET SECTION - parts list Figures 320 and 322, used with G105282 control valve assembly

2шт.

4a

REF

INSTRUCTION

BOOM SECTION - parts list Figures 328 - 332, used with G109538 control valve assembly

1шт.

5

REF

INSTRUCTION

SWING SECTION - parts list Figures 324 and 326, used with G105282 control valve assembly

1шт.

5a

REF

INSTRUCTION

DIPPER AND BUCKET SECTION - parts list Figures 320 and 322, used with G109538 control valve assembly

2шт.

6

REF

INSTRUCTION

BOOM SECTION - parts list Figures 328 and 332, used with G105282 control valve assembly

1шт.

6a

REF

INSTRUCTION

SWING SECTION - parts list Figures 324 and 326, used with G109538 control valve assembly

1шт.

7

G33102

MANIFOLD

INLET SECTION - parts list Figure 318

1шт.

8

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

- section ports, large

6шт.

9

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

- section ports, small

18шт.

10

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section, Port side of control valve 0.051mm Thk

6шт.

11

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of control valve 0.051mm Thk

6шт.

12

G34675

TIE-ROD

STUD - tie, 3/8" - 16 NC x 15-3/4"

4шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.
