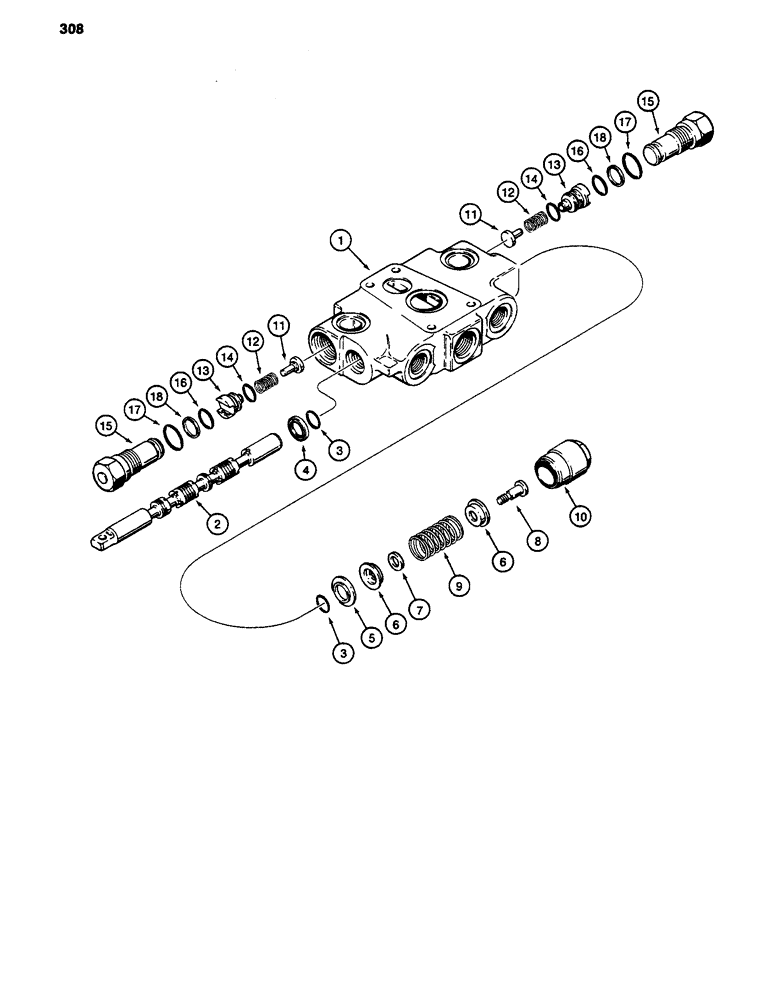

Запчасти Case 480D (308) - CASE LOADER CONTROL VALVE - TWO SPOOL, BUCKET SECTION (35) - HYDRAULIC SYSTEMS

G106953

HYD VALVE SECTION

SECTION ASSEMBLY - bucket, Includes: Ref. 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

3

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- spool and housing

2шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

- spool

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

- O-ring

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT - centering spring

2шт.

7

G106410

SPACER

- split

1шт.

8

G106409

SEAT

SCREW - spool end

1шт.

9

G34463

SPRING

CENTERING SPRING - spool

1шт.

10

P0033080G

SCREW

- spool end

1шт.

11

G33081

VALVE POPPET

POPPET - load check

2шт.

12

G33573

SPRING

- load check

2шт.

13

G33084

PLUG

- load check

2шт.

14

G33686

O-RING,0.07" Thk x 0.61" ID

- plug

2шт.

G33122

PLUG,ORB

ASSEMBLY - load check valve port, Includes: Ref. 15 - 18

2шт.

15

NSS

NOT SOLD SEPARAT

PLUG - load check valve port

1шт.

16

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- small

1шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- large

1шт.

18

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

BACKUP RING - small O-ring

1шт.
