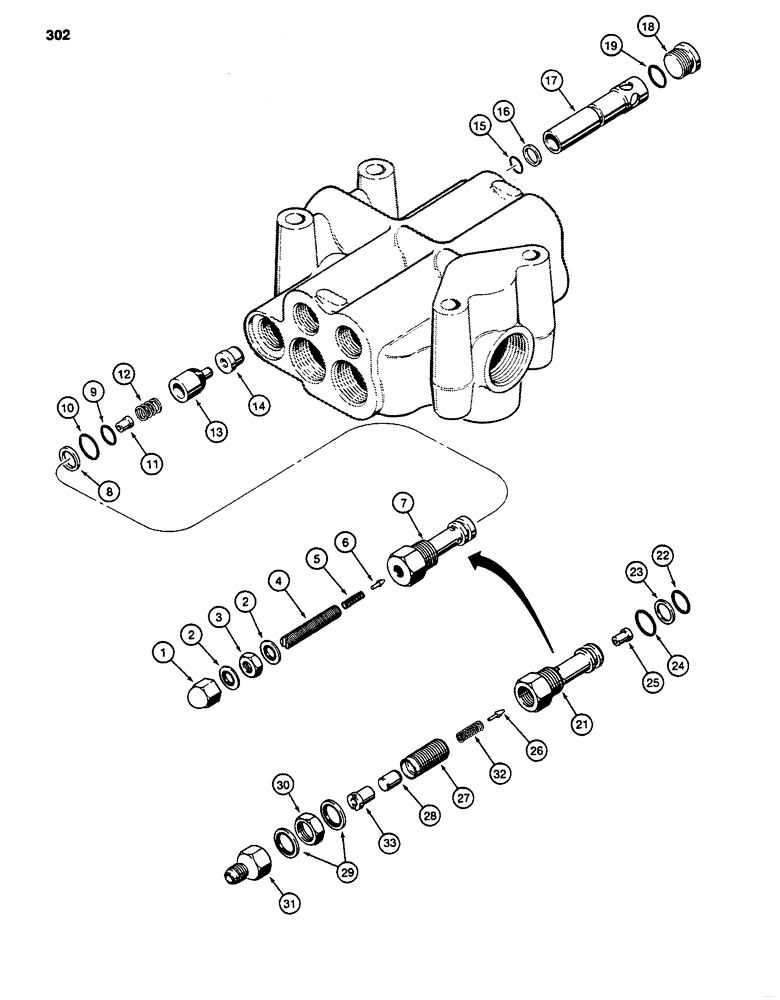

Запчасти Case 480D (302) - PARKER LOADER CONTROL VALVE, MAIN RELIEF VALVE (35) - HYDRAULIC SYSTEMS

1

129-514

CROWN NUT,Low, 5/16" - 24

DOME NUT - 5/16" - 24 NF, main relief valve

1шт.

2

D26270

WASHER, SEALING

SEAL - special, may be one or two piece part

2шт.

3

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16" - 24 NF

1шт.

4

176-296

SET SCREW,5/16"-24 x 1 3/4", Slotted

SCREW - adjusting, main relief valve, 5/16" - 24 NF x 1-3/4"

1шт.

5

D26268

SPRING

- pilot

1шт.

6

D26267

PLUNGER

- relief valve

1шт.

7

A25291

CAP

BODY - valve

1шт.

8

L30443

BACK-UP RING,0.547" ID x 0.049" Width

BACKUP RING - small O-ring

1шт.

9

L30444

O-RING,0.521" ID x 0.661" OD

- relief valve cap, small

1шт.

11

D26266

SEAT

- plunger

1шт.

12

D52319

SPRING

- relief valve

1шт.

13

D37062

VALVE

POPPET - main relief valve

1шт.

14

D37063

SEAT

- poppet

1шт.

15

L30444

O-RING,0.521" ID x 0.661" OD

- sleeve

1шт.

16

L30443

BACK-UP RING,0.547" ID x 0.049" Width

BACKUP RING - sleeve O-ring

1шт.

17

D83201

SLEEVE

- main relief valve

1шт.

18

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Main relief valve, Incl Ref 19 Hex Soc, 3/4"-16 ORB

1шт.

20

RESERVED

1шт.

D71665

VALVE

ASSEMBLY - dual main relief, used on models with single, used on PTO models only control levers, Includes: Ref. 21 - 33

1шт.

21

D37045

CAP

BODY - valve, used on PTO models only

1шт.

22

L30444

O-RING,0.521" ID x 0.661" OD

- small, used on PTO models only

1шт.

23

L30443

BACK-UP RING,0.547" ID x 0.049" Width

BACKUP RING - small O-ring, used on PTO models only

1шт.

25

D26266

SEAT

- plunger, used on PTO models only

1шт.

26

D26267

PLUNGER

- pilot, used on PTO models only

1шт.

27

D27258

ADJUSTMENT SCREW,5/8" - 18 x 1 1/16"

- adjusting, used on PTO models only

1шт.

28

D27261

PISTON

- relief valve, used on PTO models only

1шт.

29

D27259

SEAL

- special, used on PTO models only

2шт.

30

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex, jam, 5/8" - 18 NF, used on PTO models only

1шт.

31

D27260

FITTING

CONNECTOR - hydraulic, used on PTO models only

1шт.

32

D26268

SPRING

- plunger, used on PTO models only

1шт.

33

R29766

RETAINER

- piston, used on PTO models only

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, relief valve cap, large

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, plug

1шт.

24

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, used on PTO models only

1шт.
