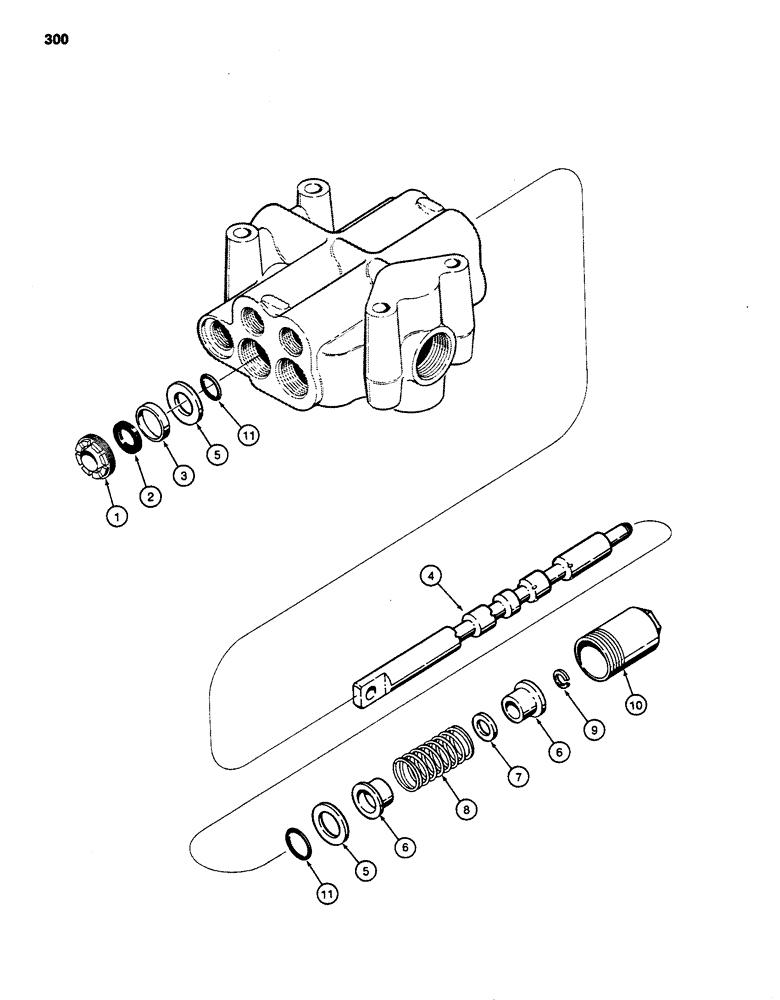

Запчасти Case 480D (300) - PARKER LOADER CONTROL VALVE, LOADER BUCKET SPOOL (35) - HYDRAULIC SYSTEMS

D37050

SPOOL

ASSEMBLY - loader bucket, Includes: Ref. 1 - 11

1шт.

D80412

GLAND

AND WIPER - spool, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

GLAND - spool

1шт.

2

A14527

SCRAPER

WIPER - spool

1шт.

3

NSS

NOT SOLD SEPARAT

SLEEVE - gland and wiper

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - control valve

1шт.

5

A14535

RETAINER

- seal

2шт.

6

A14533

BRONZE BUSHING

SEAT - spring

2шт.

7

A25286

WASHER

- special

1шт.

8

A14534

SPRING

- spool return

1шт.

9

A27020

RING

SNAP RING - spring retainer

1шт.

10

A14529

CAP

- spool

1шт.

11

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- spool seal, control valve housing

2шт.
