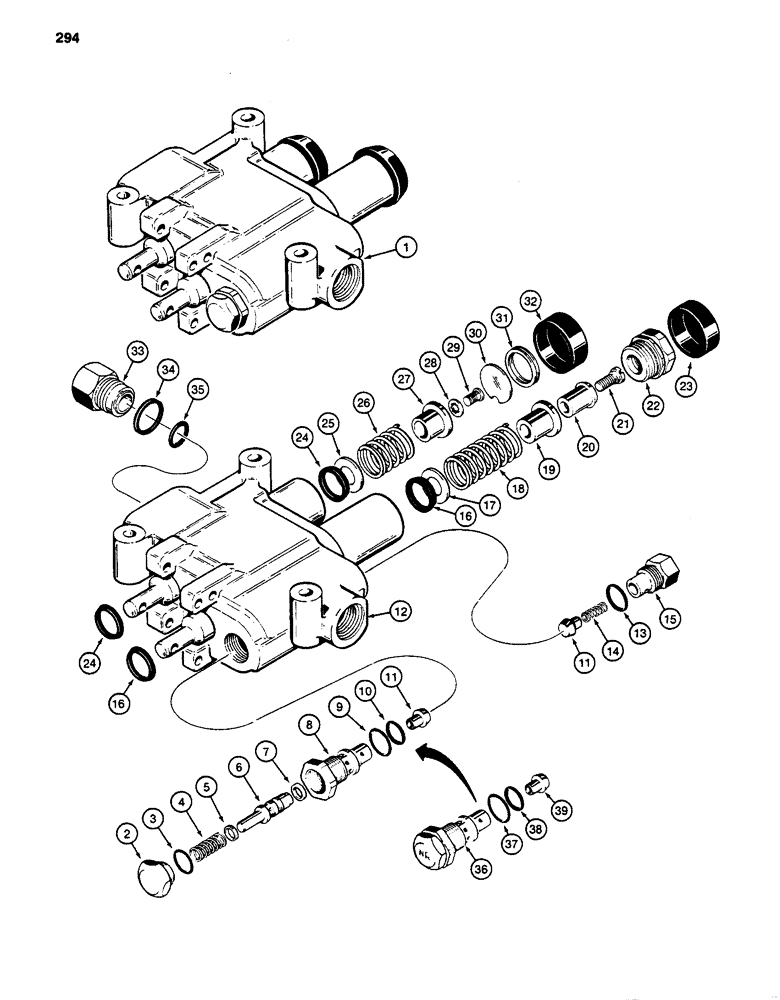

Запчасти Case 480D (294) - GRESEN LOADER CONTROL VALVE, USED ON MODELS WITH DUAL CONTROL LEVERS (35) - HYDRAULIC SYSTEMS

1

D74817

VALVE

CONTROL VALVE - loader, Gresen No. SPKYT-4-4WK-M-1005, Includes: Ref. 2 - 35

1шт.

D48202

VALVE

MAIN RELIEF VALVE - loader control valve, Includes: Ref. 2 - 10

1шт.

2

D39716

PLUG

CAP - main relief valve

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- cap

1шт.

4

D51540

VALVE SPRING

SPRING - main relief valve

1шт.

5

A55893

SHIM,.0418" Thk

(1.016 mm) .0418" Thk

1шт.

5

A55894

SHIM,.0209" Thk

(0.508 mm) .0209" Thk

1шт.

5

D39712

SHIM

- .010" (0.254 mm) thick

1шт.

6

NSS

NOT SOLD SEPARAT

PLUNGER - main relief valve

1шт.

7

D39714

RING

SEAL - ring, plunger

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - main relief valve

1шт.

9

D39717

O-RING,1.051" ID x 1.191" OD

- large

1шт.

10

D39718

O-RING,0.989" ID x 1.129" OD

- small

1шт.

11

D28576

VALVE POPPET

POPPET - check

2шт.

12

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOLS - valve

1шт.

13

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- plug

1шт.

14

D28840

SPRING

- check poppet

1шт.

15

D28574

PLUG

- check poppet

1шт.

16

T42095

O-RING

SEAL - lift spool

2шт.

17

36650

WASHER

- spool stop

1шт.

18

D32602

VALVE SPRING

SPRING - centering, lift spool

1шт.

19

36652

COLLAR

- stop, lift spool

1шт.

20

D50914

PLUNGER

- detent

1шт.

21

D50913

BOLT,Shoulder, 5/16" - 18 x 0.718"

SCREW - special

1шт.

22

T42191

DETENT

CAP - detent, lift spool

1шт.

23

36645

CAP

- rubber, spool end

1шт.

24

T42095

O-RING

SEAL - bucket spool

2шт.

25

36650

WASHER

- spool stop

1шт.

26

36632

SPRING

- centering, bucket spool

1шт.

27

36630

DRAWBAR SUPPORT

- stop, bucket spool

1шт.

28

36628

LOCK WASHER

- lock

1шт.

29

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

BOLT - round head, 1/4" - 20 NC x 1/2", centering spring

1шт.

30

663023R1

CAP

- stop

1шт.

31

36633

LID

- stop disc

1шт.

32

36645

CAP

- rubber, spool end

1шт.

33

D48085

SLEEVE

- power beyond

1шт.

34

D48086

SEAL,1.358" ID

RING - square section

1шт.

35

N6306

O-RING

- special, Teflon

1шт.

D75515

PLUG

ASSEMBLY - used in place of D48202 relief valve on models with PTO, Includes: Ref. 36 - 39

1шт.

36

NSS

NOT SOLD SEPARAT

PLUG - cap, used on PTO models only

1шт.

37

D39717

O-RING,1.051" ID x 1.191" OD

- plug, large, used on PTO models only

1шт.

38

D39718

O-RING,0.989" ID x 1.129" OD

- plug, small, used on PTO models only

1шт.

39

D28576

VALVE POPPET

POPPET - check, used on PTO models only

1шт.
