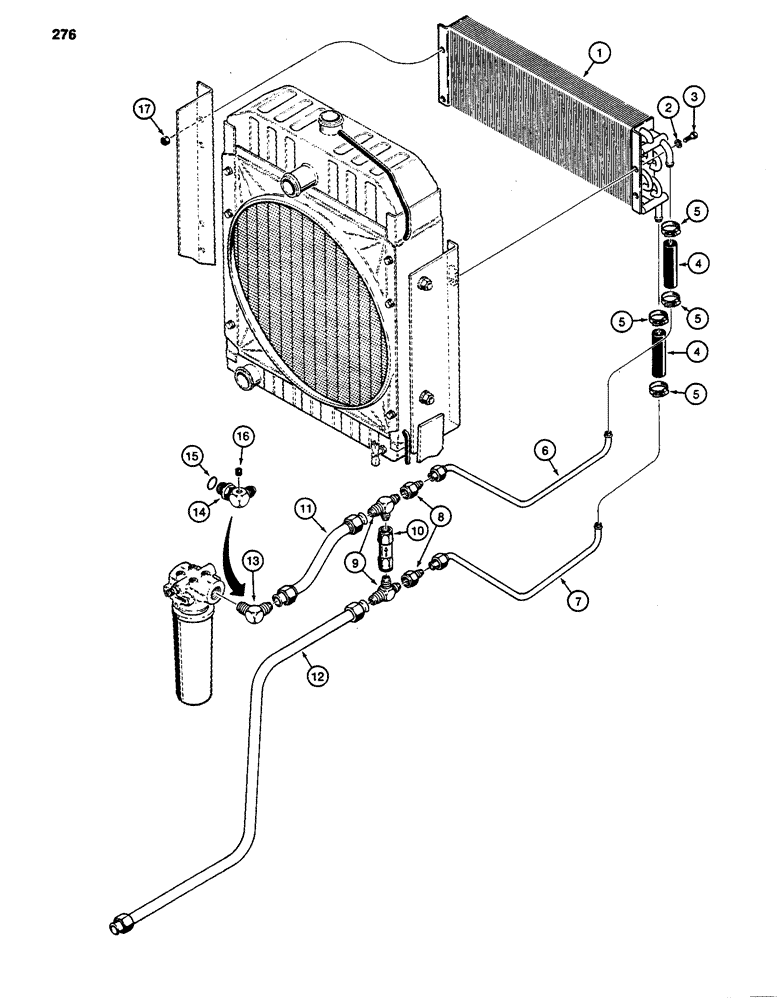

Запчасти Case 480D (276) - PTO HYDRAULIC COOLING SYSTEM (35) - HYDRAULIC SYSTEMS

1

D76097

COOLER

- PTO hydraulic oil

1шт.

2

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

4

D55583

HOSE,12.7 mm ID x 101.60 mm, SAE 100R3

Cooler Tubes 12.7 mm ID x 101.60 mm, SAE 100R3

2шт.

5

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

4шт.

6

D99556

TUBE ASSY.

TUBE - from cooler top tube

1шт.

7

D99558

TUBE ASSY.

TUBE - to cooler bottom tube

1шт.

8

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

- tube

2шт.

9

218-566

TEE,1 5/16"-12, 37 Degree x 7/8"-14, 37 Degree x 3/4"-14, NPTF Br

- fitting

2шт.

10

R24281

LOCK VALVE

VALVE - check

1шт.

11

D77945

TUBE,1" OD x 9.67, 2.91" L

- to filter

1шт.

12

D72130

HYD TUBE,1" OD x 17.68, 20.32" L

TUBE - return, from rear equipment hydraulic circuit

1шт.

13

D71940

ELBOW

- 90 degree, at filter, special, used with D89908 or D122362 oil filter without O-ring ports

1шт.

14

D132008

ELBOW

- 90 degree, adjustable, used with D131293 oil filter with O-ring ports, Includes: Ref. 15

1шт.

15

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- D132008 elbow only

1шт.

16

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket head, 1/8" NPT, used with D132008 elbow

1шт.

17

9635082

NUT,5/16" - 18, Gr 5

LH side only, if used 5/16"-18, G5

2шт.
